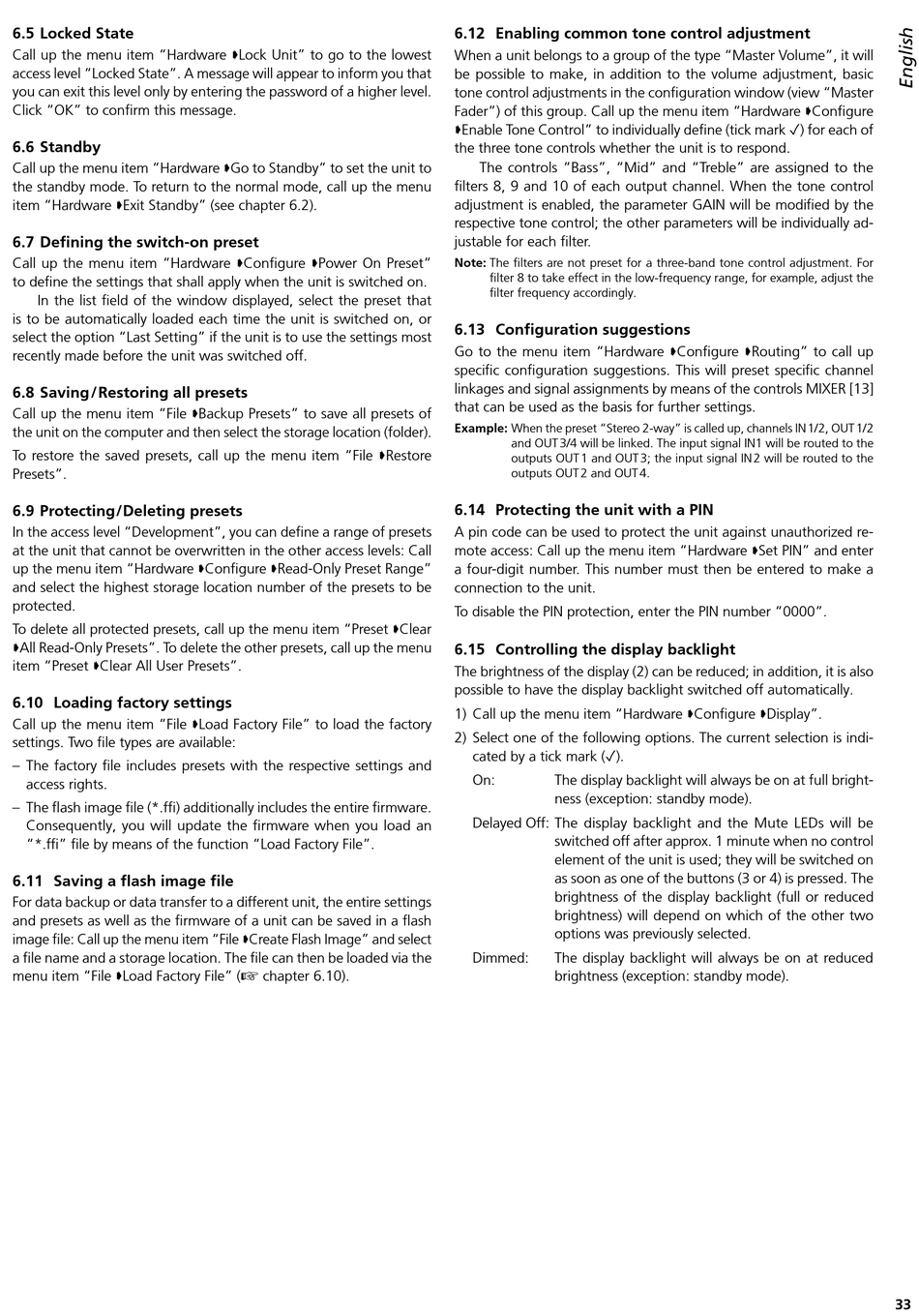

6.5 Locked State

Call up the menu item "Hardware Lock Unit" to go to the lowest
access level "Locked State" . A message will appear to inform you that
you can exit this level only by entering the password of a higher level .
Click "OK" to confirm this message .

6.6 Standby

Call up the menu item "Hardware Go to Standby" to set the unit to
the standby mode . To return to the normal mode, call up the menu
item "Hardware Exit Standby" (see chapter 6 .2) .

6.7 Defining the switch-on preset

Call up the menu item "Hardware Configure Power On Preset"
to define the settings that shall apply when the unit is switched on .
In the list field of the window displayed, select the preset that
is to be automatically loaded each time the unit is switched on, or
select the option "Last Setting" if the unit is to use the settings most
recently made before the unit was switched off .

6.8 Saving / Restoring all presets

Call up the menu item "File Backup Presets" to save all presets of
the unit on the computer and then select the storage location (folder) .
To restore the saved presets, call up the menu item "File Restore
Presets" .

6.9 Protecting / Deleting presets

In the access level "Development", you can define a range of presets
at the unit that cannot be overwritten in the other access levels: Call
up the menu item "Hardware Configure Read-Only Preset Range"
and select the highest storage location number of the presets to be
protected .
To delete all protected presets, call up the menu item "Preset Clear
All Read-Only Presets" . To delete the other presets, call up the menu
item "Preset Clear All User Presets" .

6.10 Loading factory settings

Call up the menu item "File Load Factory File" to load the factory
settings . Two file types are available:
– The factory file includes presets with the respective settings and
access rights .
– The flash image file (* .ffi) additionally includes the entire firmware .
Consequently, you will update the firmware when you load an
"* .ffi" file by means of the function "Load Factory File" .

6.11 Saving a flash image file

For data backup or data transfer to a different unit, the entire settings
and presets as well as the firmware of a unit can be saved in a flash
image file: Call up the menu item "File Create Flash Image" and select
a file name and a storage location . The file can then be loaded via the
menu item "File Load Factory File" (
☞
chapter 6 .10) .

6.12 Enabling common tone control adjustment

When a unit belongs to a group of the type "Master Volume", it will
be possible to make, in addition to the volume adjustment, basic
tone control adjustments in the configuration window (view "Master
Fader") of this group . Call up the menu item "Hardware Configure
Enable Tone Control" to individually define (tick mark ✓) for each of
the three tone controls whether the unit is to respond .
The controls "Bass", "Mid" and "Treble" are assigned to the
filters 8, 9 and 10 of each output channel . When the tone control
adjustment is enabled, the parameter GAIN will be modified by the
respective tone control; the other parameters will be individually ad-
justable for each filter .
Note: The filters are not preset for a three-band tone control adjustment . For
filter 8 to take effect in the low-frequency range, for example, adjust the
filter frequency accordingly .

6.13 Configuration suggestions

Go to the menu item "Hardware Configure Routing" to call up
specific configuration suggestions . This will preset specific channel
linkages and signal assignments by means of the controls MIXER [13]
that can be used as the basis for further settings .
Example: When the preset "Stereo 2-way" is called up, channels IN 1/ 2, OUT 1/ 2
and OUT 3/4 will be linked . The input signal IN1 will be routed to the
outputs OUT 1 and OUT 3; the input signal IN 2 will be routed to the
outputs OUT 2 and OUT 4 .

6.14 Protecting the unit with a PIN

A pin code can be used to protect the unit against unauthorized re-
mote access: Call up the menu item "Hardware Set PIN" and enter
a four-digit number . This number must then be entered to make a
connection to the unit .
To disable the PIN protection, enter the PIN number "0000" .

6.15 Controlling the display backlight

The brightness of the display (2) can be reduced; in addition, it is also
possible to have the display backlight switched off automatically .
1) Call up the menu item "Hardware Configure Display" .
2) Select one of the following options . The current selection is indi-
cated by a tick mark (✓) .
On: The display backlight will always be on at full bright-
ness (exception: standby mode) .
Delayed Off: The display backlight and the Mute LEDs will be
switched off after approx . 1 minute when no control
element of the unit is used; they will be switched on
as soon as one of the buttons (3 or 4) is pressed . The
brightness of the display backlight (full or reduced
brightness) will depend on which of the other two
options was previously selected .
Dimmed: The display backlight will always be on at reduced
brightness (exception: standby mode) .
