All operating elements and connections described can be found on page 2.

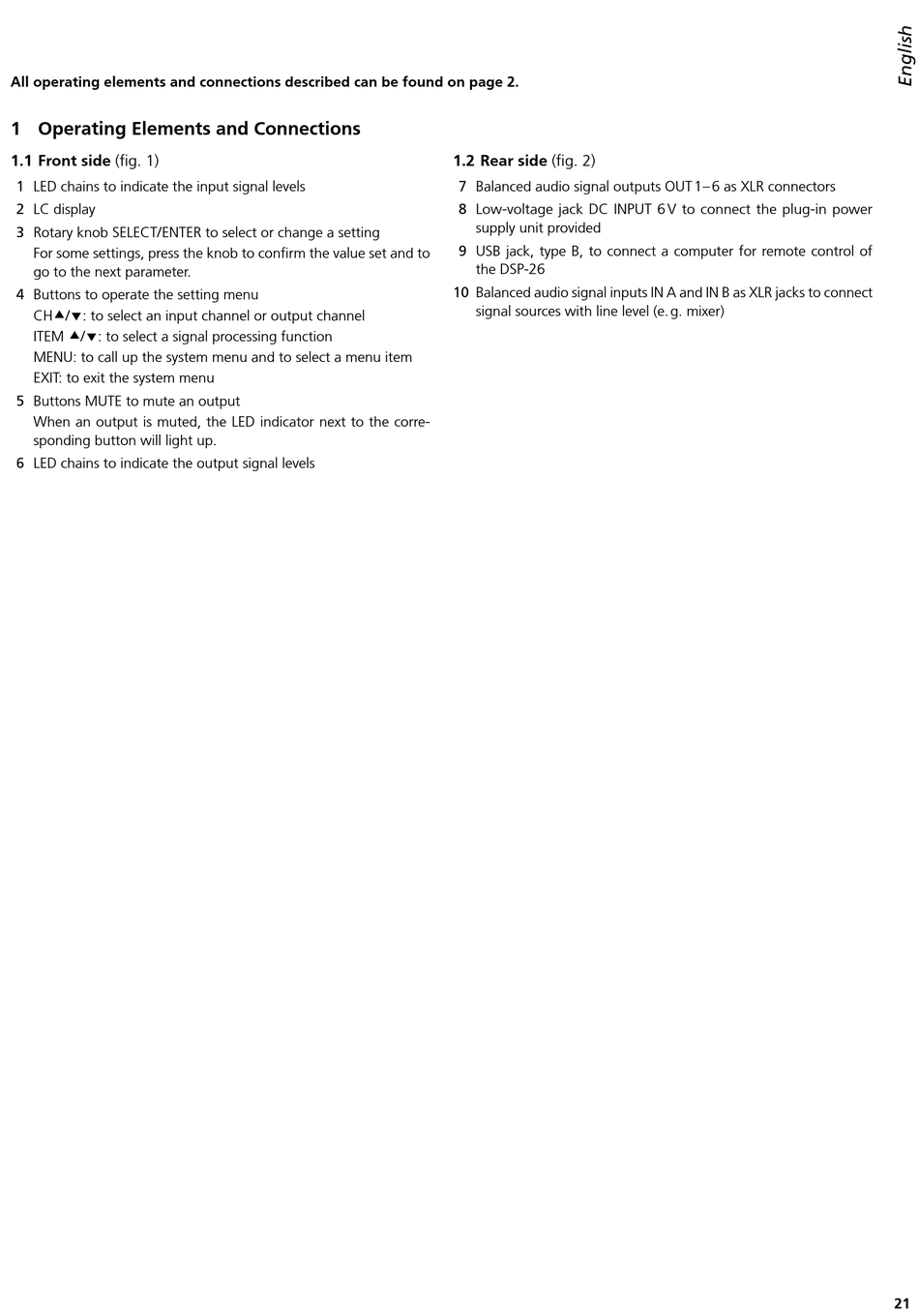

1 Operating Elements and Connections

1.1 Front side (fig . 1)
1 LED chains to indicate the input signal levels
2 LC display
3 Rotary knob SELECT/ ENTER to select or change a setting
For some settings, press the knob to confirm the value set and to
go to the next parameter .
4 Buttons to operate the setting menu
CH/: to select an input channel or output channel
ITEM /: to select a signal processing function
MENU: to call up the system menu and to select a menu item
EXIT: to exit the system menu
5 Buttons MUTE to mute an output
When an output is muted, the LED indicator next to the corre-
sponding button will light up .
6 LED chains to indicate the output signal levels
1.2 Rear side (fig . 2)
7 Balanced audio signal outputs OUT 1 – 6 as XLR connectors
8 Low-voltage jack DC INPUT 6 V to connect the plug-in power
supply unit provided
9 USB jack, type B, to connect a computer for remote control of
the DSP-26
10 Balanced audio signal inputs IN A and IN B as XLR jacks to connect
signal sources with line level (e . g . mixer)
21
