Instructions myintercom Plus IP video door intercom
GB
Card reader for myintercom Plus

5.1. Select a memory position

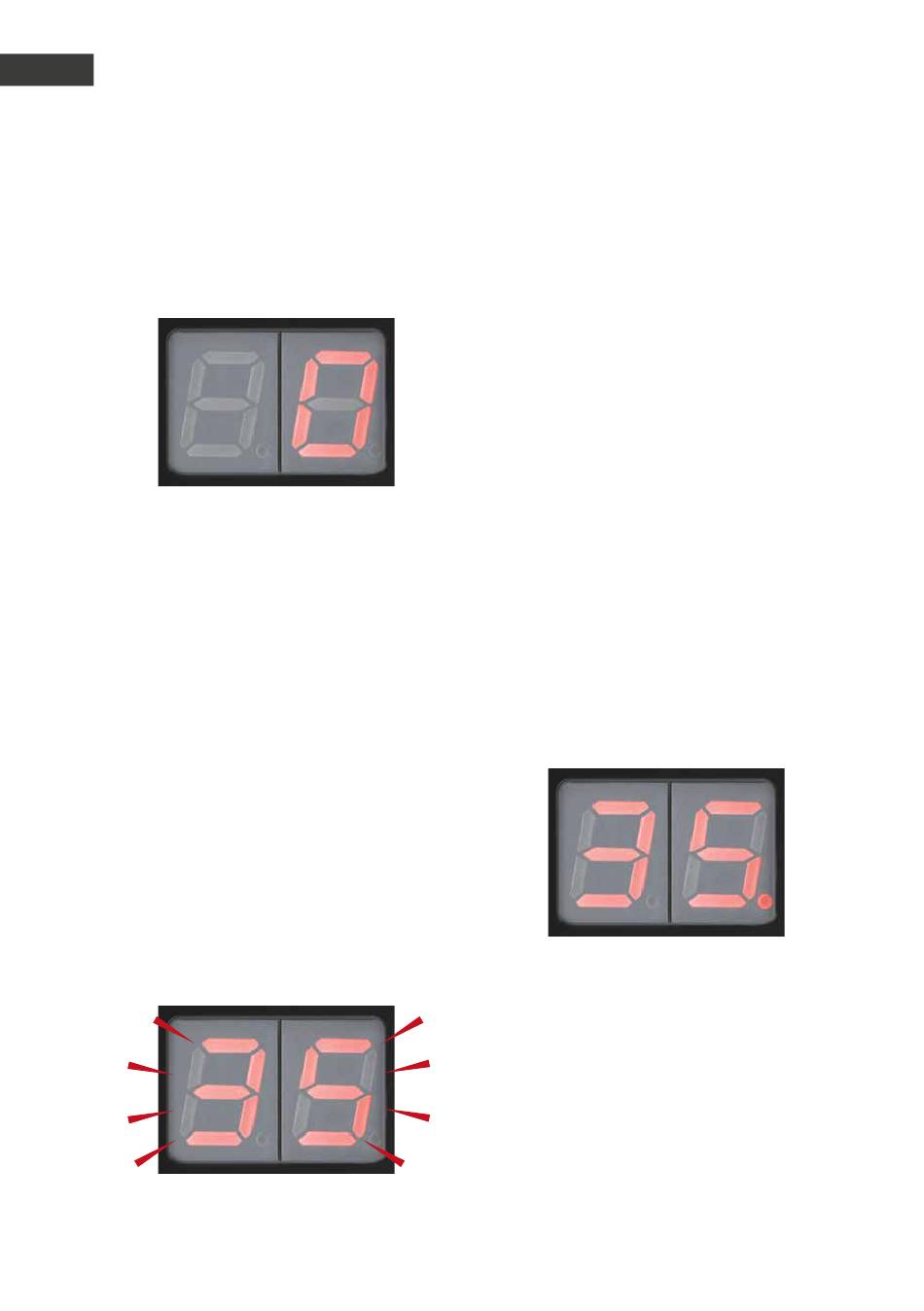

Hold the master card to the card reader. The
display will turn on:
The memory positions from 0 to 10 will be
displayed one after the other in steps of one.
(00...01...02...03...)
Starting from memory position 10, counting is
done in steps of 10 (fast mode).
In order to return to counting in steps of one,
remove the master card shortly and return it
back to the card reader. The next ten memory
positions will be counted one at a time again,
before the fast mode is started again.
To select a memory position, please remove the
master card from the card reader. The display
will light up for approx. 3 consecutive seconds
and then start flashing for approx. 6 seconds.
The selected memory position may now be
programmed or deleted.
69

5.2. Transponder

Programming a transponder
Please note:
Do not overwrite an existing memory position,
when programming a transponder as the tran-
sponder on the memory position to be overwrit-
ten will lose its access authorisation .
Hold the master card to the card reader and
select the desired memory position (cf. "5.1.
Select a memory position" on page 69). Hold
the new transponder to the card reader, while
the display is flashing. The transponder is pro-
grammed to the new memory position, and the
decimal point on the right will turn on.
Please note: Should you have presented a pre-
viously programmed transponder, the display
will jump to its memory position.
Now, you can delete this transponder. The
display will then switch to the following memory
position. To terminate transponder saving,
remove the master card, the display will turn off
and the card reader returns to operating mode.
