Locally or Globally (with a security relay)

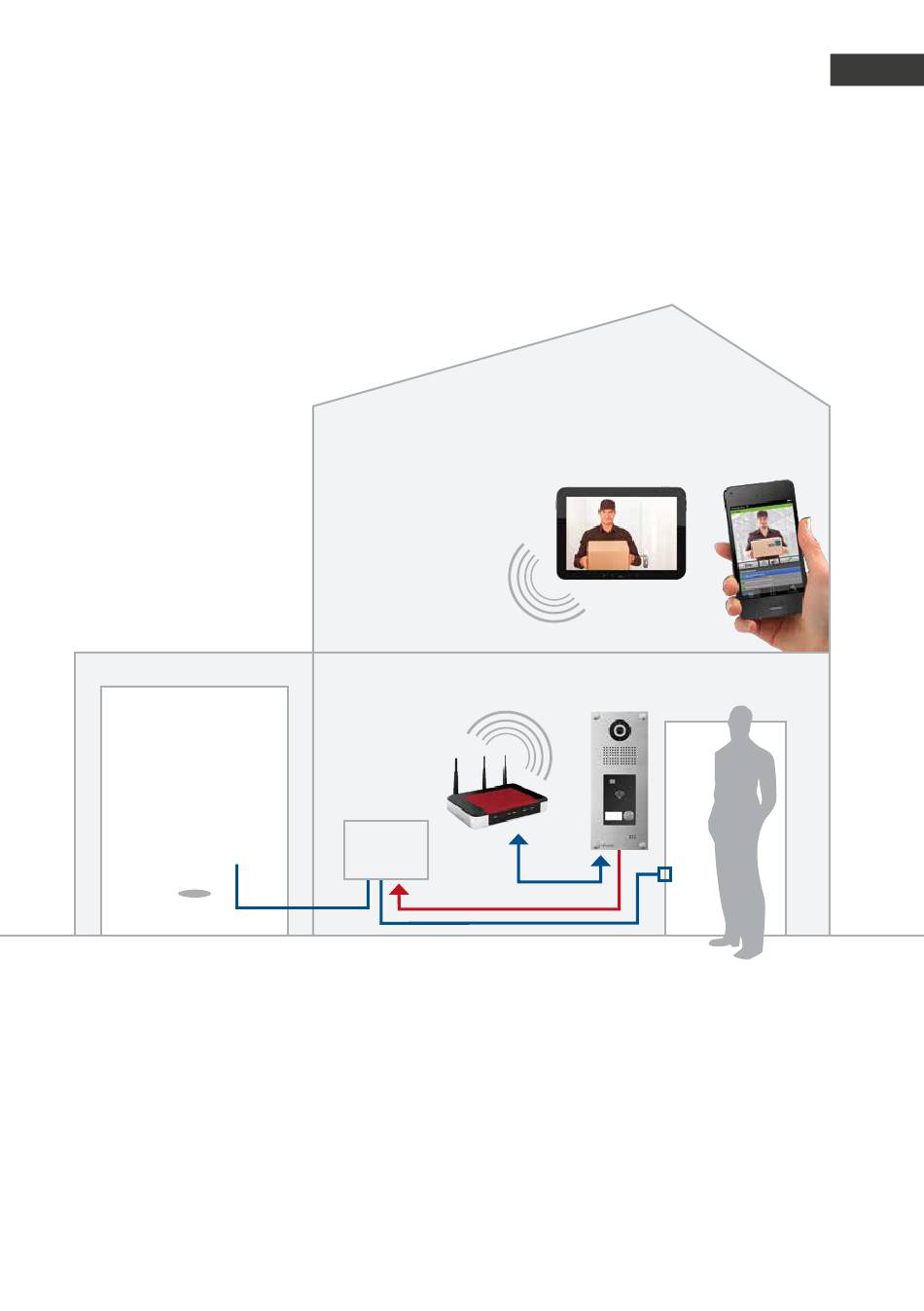

This diagram shows the application within an
office or residential building with a safety relay
inside.
Additional
relay (garage)
Safety relay:
▸
Added security by installing the device inside
the tamper-proof area
▸
Connected to the myintercom Plus IP video
door intercom (also possible with a myinter-
com One door intercom)
Requires an internet connection for the myintercom station
1
Please verify technical data for the door open function and the myintercom station
2
www.behnke-online.de
Instructions myintercom Plus IP video door intercom
Office floor
WiFi
Foyer
DSL-Router /
Switch
Safety
relay
safe communication
▸
Safety relay and door intercom communicate
via a safe protocol
▸
Provides two potential-free relay contacts
▸
When using two-core technology, please take
note of the technical specifications (use of
the existing line).
Commissioning
Tablet / Smartphone
myintercom Plus video
door intercom with camera
WiFi
Ethernet
1
Open door
function
2
