Connection myintercom One
The reset key performs a reset on the door
intercom station, after the tamper contact has
been triggered. Please make sure the housing
cover of the IP door intercom station is correctly
installed and push the button
relay for at least 2 seconds.

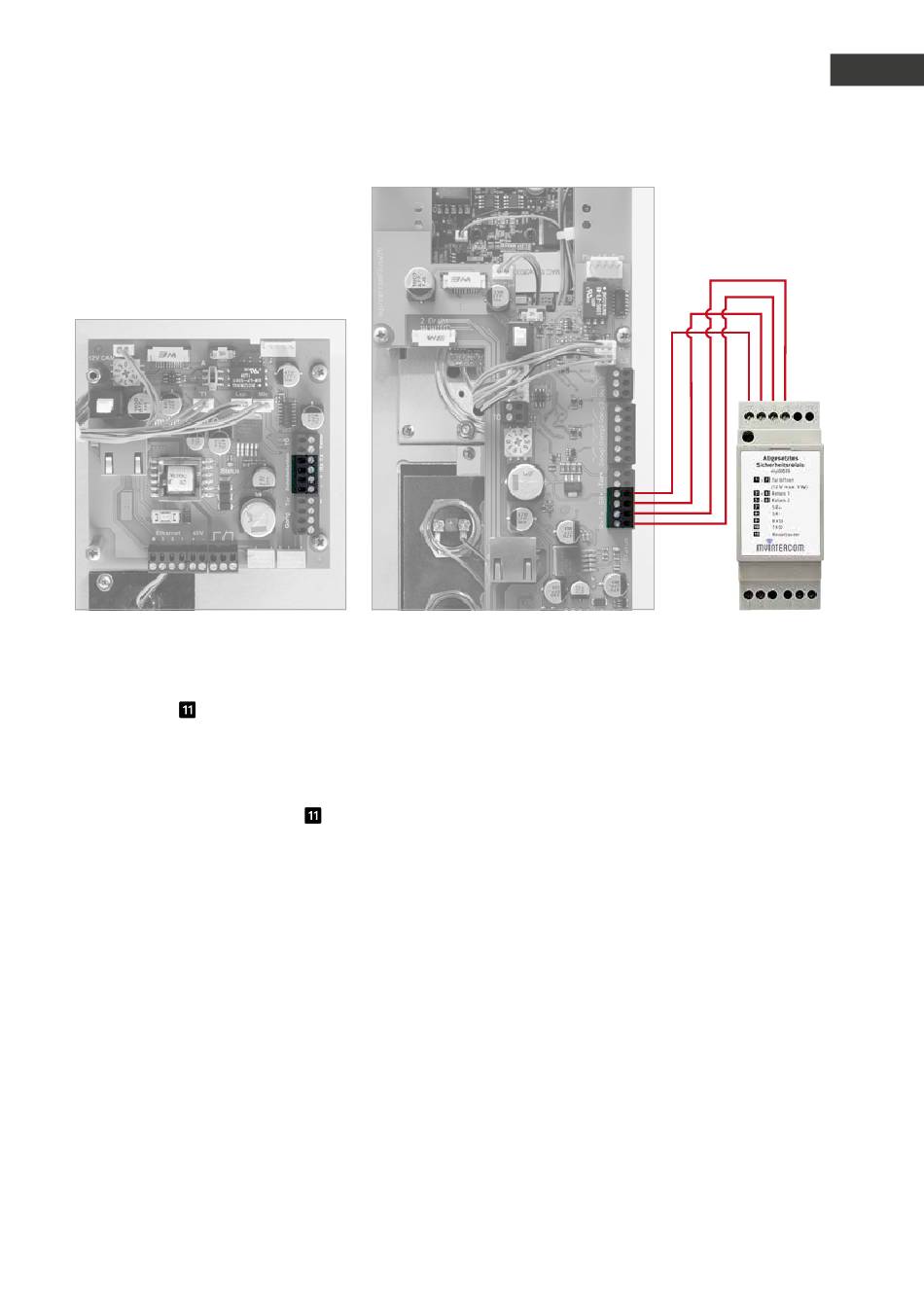

The safety relay terminals marked "Door open"
may be used to connect a universal device
opening the door (6-12V DC/AC max. 9W). With
an external power supply, it is possible to con-
nect this device to relay 1. Please note that the
tension for the door opening device and relay 1
will always be triggered together.
www.behnke-online.de
Instructions myintercom Plus IP video door intercom
Connection myintercom Plus
Additionally, the myintercom Plus door intercom
enables you to use a second additional relay.
This relay may be used to control a gate opening
device for your garage, a bar or exterior lights.
on the safety
Additional modules
