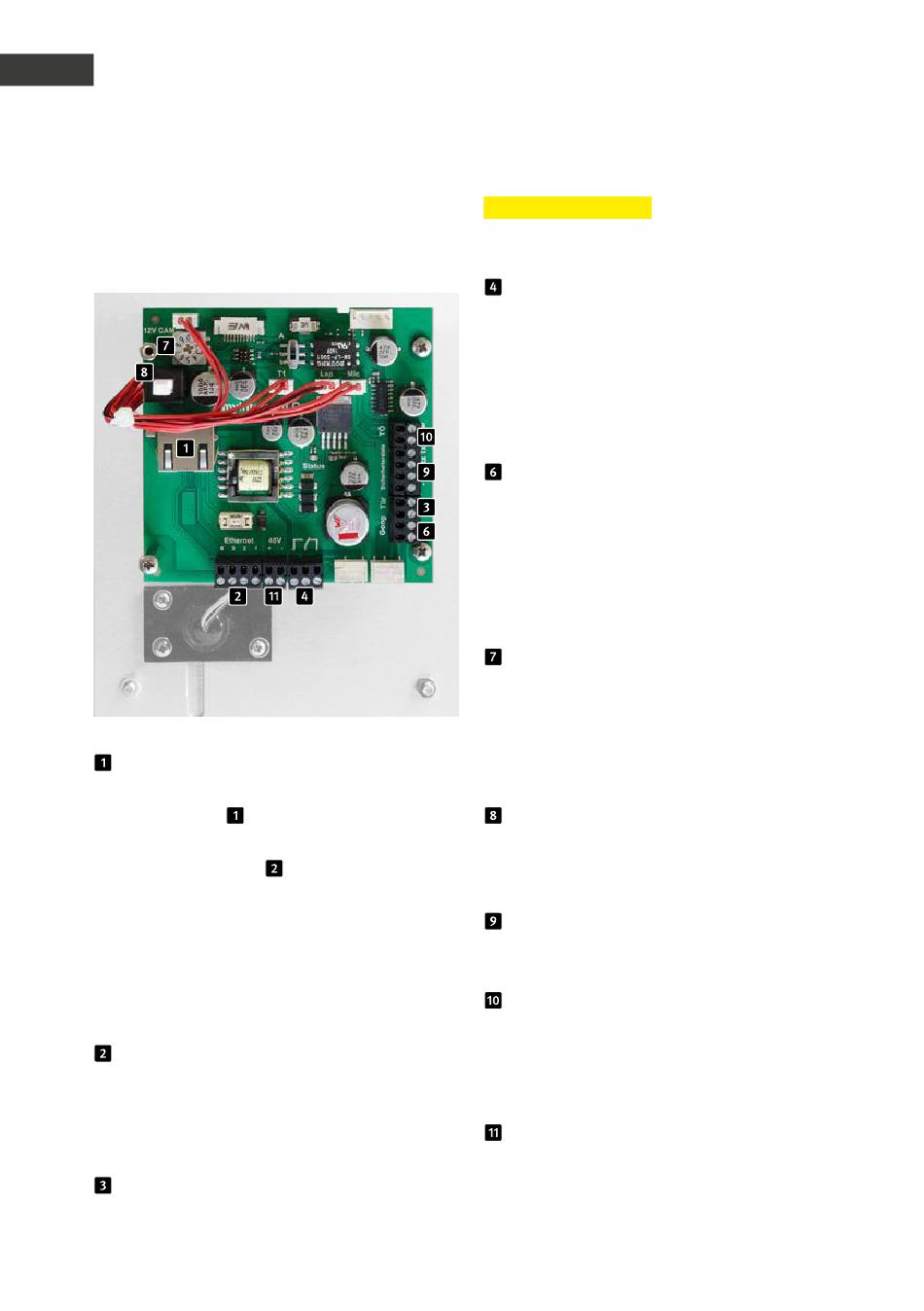

Electronics myintercom One
Ethernet connector
Usually, an RJ-45 connector is used to establish
LAN connection (
the individual cores to the connection interface
using a terminal block
connected to the terminals marked 1 (orange-
white), 2 (orange), 3 (green-white) and 6 (green)
according to EIA/TIA specification 568 B. The
number indicated refers to the pin position of
the RJ-45 plug / the RJ-45 socket.
Alternative Ethernet connection
It is not possible to simultaneously use the
RJ 45 socket and the terminal block. This may
lead to a defect in the door intercom station!
Connecting the open door function
Connection option for an open door function
59
). You may also connect
: The network is
(12 V DC/AC max. 9 W). Cf. Chapter "3.3. Open
door/Relay/Gong" on page 63.
Relay 1 (open door function relay)
Potential-free connection (max. load is
max. 60VDC / 50 VAC, max. 60 W, 62.5 VA, max.
2A) for an open door function, to be activated
via the "myintercom" app. Cf. Chapter "3.3.
Open door/Relay/Gong" on page 63.
Door bell connections
Potential-free connection for a door bell (max.
load is max. 60 VDC / 50 VAC, 60 W / 62.5 VA,
max 2A), to be activated when a button is
pressed. Cf. Chapter "3.3. Open door/Relay/
Gong" on page 63.
Door bell switch
Use the door bell switch to adjust how often the
door bell will sound, after the button has been
pressed. Cf. Chapter "3.4. Set a door gong" on
page 64.
Sabotage contact
Cf. Chapter "1.2. General Information" on page
49.
Connection socket for the safety relay
Cf. Chapter "4.1. Safety relay" on page 65.
Connection for the open door function
button
Cf. Chapter "3.3. Open door/Relay/Gong" on
page 63.
Alternative power supplies
Optional 48 VDC connection instead of a PoE
power supply (not included in the box).
