EN: Installation Sheet
Package
The package contains:
•
1X wireless detector
•
1X drilling template for fixing holes
•
2X CR123 3 V lithium batteries
•
2X 31.75 mm / 1.25 in. wall plugs
•
2X 31.75 mm / 1.25 in. screws
•
1X lens mask
4 / 32
•
2X additional curtain shutters
•
1X tamper cup
•
2X tamper caps (different lengths)
•
1X plastic locking tool
•
1X installation sheet
•
1X front cover screw cap
Introduction
The wireless outdoor PIR 868 MHz Gen2 detector is an
outdoor motion detector and alarm trigger that uses two
independent passive infrared detectors.
Both sensors must trigger to cause the detector to signal an
alarm. TX-2810-03-4 uses quad PIR technology to deliver
precise, reliable presence detection.
Programmable options include a variable pulse count and a
choice of three detection ranges: 10 m / 33 ft., 20 m / 66 ft.,
and 30 m / 98 ft.
The integral dual-axis tilt sensor allows 180° of pan and 90° of
tilt. This increases the speed of the outdoor installation and
provides incredibly accurate aiming of the detection pattern.
The electronics module is acrylic coated for additional
component stability. It is encased in a vandal-resistant, high-
impact, UV stabilized plastic housing with an opaque
polyethylene front cover ensuring that the sensor is impervious
to and unaffected by weather conditions.
The combination of precision electronics, digital white light
filtering, and double shielding eliminates false alarms from the
sun and other visible light sources.
TX-2810-03-4 design has a neat and professional appearance
that gives no visible indication of the orientation of the detector
head.

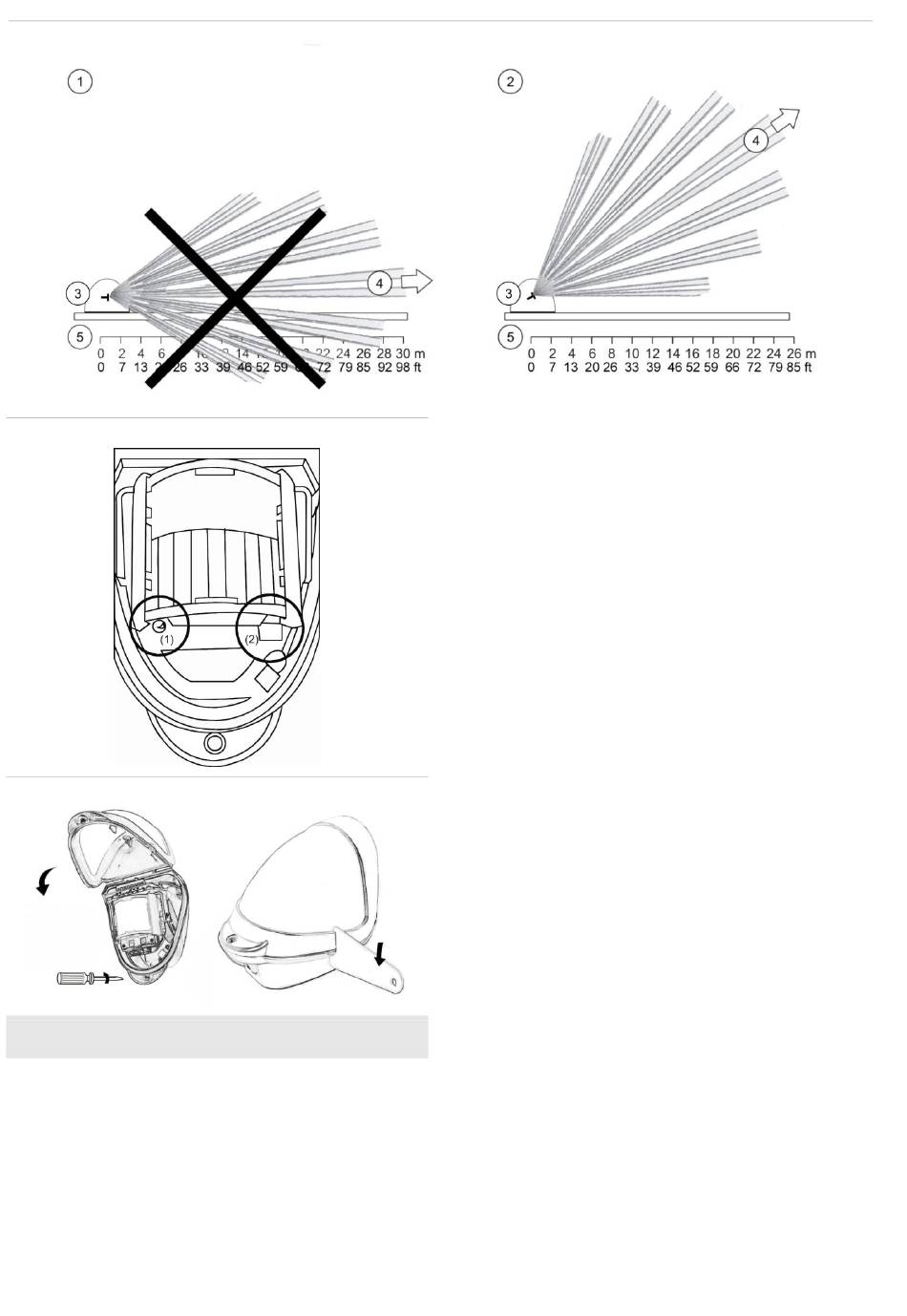

Quick installation

1. Mount the detector following the instructions given later in
this sheet.
2. Fit two CR123 batteries provided into the top battery case.
Observe the polarity. See Figure 4.
The detection LED (green) flashes three times.
