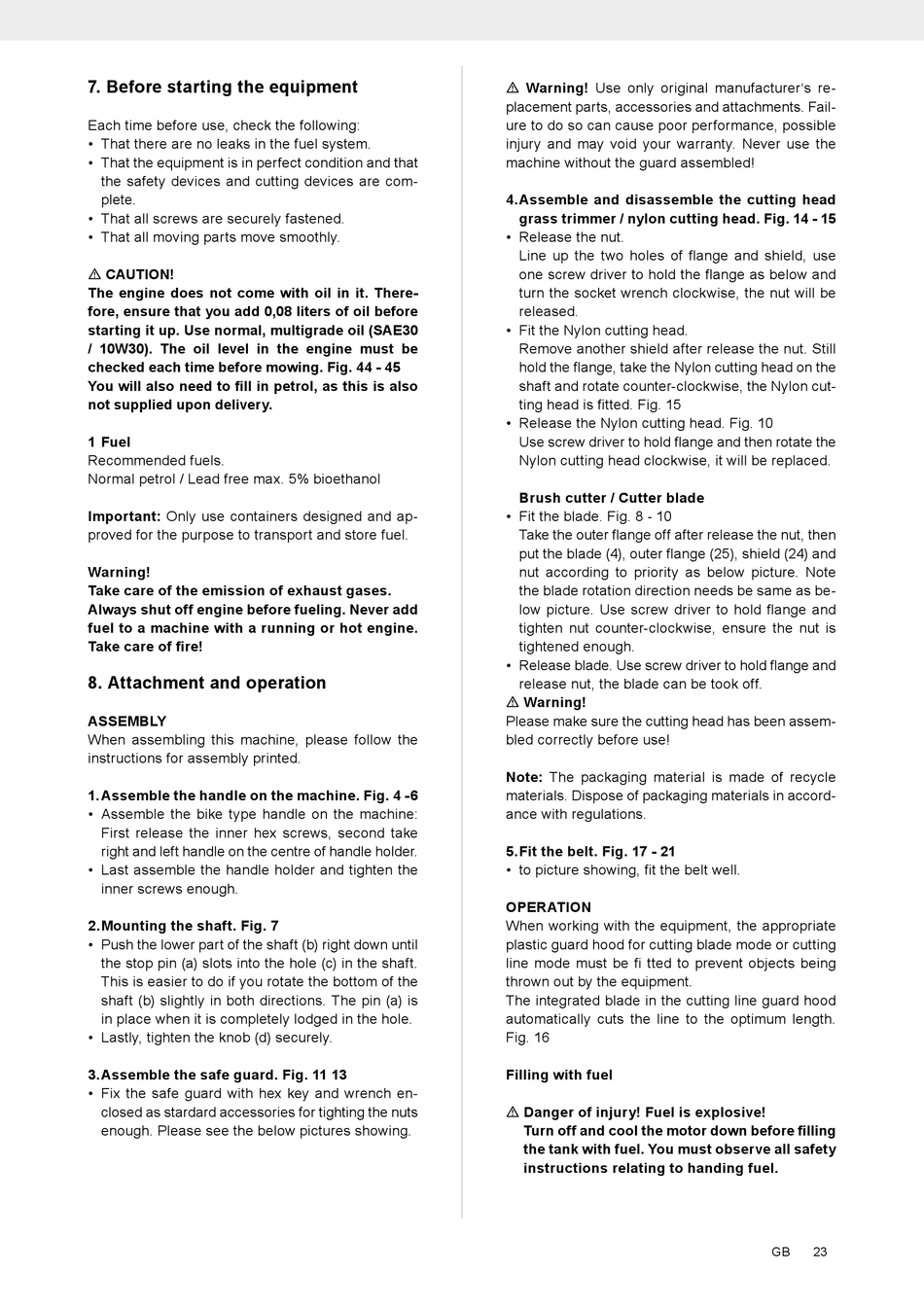

7. Before starting the equipment

Each time before use, check the following:
• That there are no leaks in the fuel system.
• That the equipment is in perfect condition and that
the safety devices and cutting devices are com-
plete.
• That all screws are securely fastened.
• That all moving parts move smoothly.
m CAUTION!
The engine does not come with oil in it. There-
fore, ensure that you add 0,08 liters of oil before
starting it up. Use normal, multigrade oil (SAE30
/ 10W30). The oil level in the engine must be
checked each time before mowing. Fig. 44 - 45
You will also need to fill in petrol, as this is also
not supplied upon delivery.
1 Fuel
Recommended fuels.
Normal petrol / Lead free max. 5% bioethanol
Important: Only use containers designed and ap-
proved for the purpose to transport and store fuel.
Warning!
Take care of the emission of exhaust gases.
Always shut off engine before fueling. Never add
fuel to a machine with a running or hot engine.
Take care of fire!

8. Attachment and operation

ASSEMBLY
When assembling this machine, please follow the
instructions for assembly printed.
1. Assemble the handle on the machine. Fig. 4 -6
• Assemble the bike type handle on the machine:
First release the inner hex screws, second take
right and left handle on the centre of handle holder.
• Last assemble the handle holder and tighten the
inner screws enough.
2. Mounting the shaft. Fig. 7
• Push the lower part of the shaft (b) right down until
the stop pin (a) slots into the hole (c) in the shaft.
This is easier to do if you rotate the bottom of the
shaft (b) slightly in both directions. The pin (a) is
in place when it is completely lodged in the hole.
• Lastly, tighten the knob (d) securely.
3. Assemble the safe guard. Fig. 11 13
• Fix the safe guard with hex key and wrench en-
closed as stardard accessories for tighting the nuts
enough. Please see the below pictures showing.
m Warning! Use only original manufacturer's re-
placement parts, accessories and attachments. Fail-
ure to do so can cause poor performance, possible
injury and may void your warranty. Never use the
machine without the guard assembled!
4. Assemble and disassemble the cutting head
grass trimmer / nylon cutting head. Fig. 14 - 15
• Release the nut.
Line up the two holes of flange and shield, use
one screw driver to hold the flange as below and
turn the socket wrench clockwise, the nut will be
released.
• Fit the Nylon cutting head.
Remove another shield after release the nut. Still
hold the flange, take the Nylon cutting head on the
shaft and rotate counter-clockwise, the Nylon cut-
ting head is fitted. Fig. 15
• Release the Nylon cutting head. Fig. 10
Use screw driver to hold flange and then rotate the
Nylon cutting head clockwise, it will be replaced.
Brush cutter / Cutter blade
• Fit the blade. Fig. 8 - 10
Take the outer flange off after release the nut, then
put the blade (4), outer flange (25), shield (24) and
nut according to priority as below picture. Note
the blade rotation direction needs be same as be-
low picture. Use screw driver to hold flange and
tighten nut counter-clockwise, ensure the nut is
tightened enough.
• Release blade. Use screw driver to hold flange and
release nut, the blade can be took off.
m Warning!
Please make sure the cutting head has been assem-
bled correctly before use!
Note: The packaging material is made of recycle
materials. Dispose of packaging materials in accord-
ance with regulations.
5. Fit the belt. Fig. 17 - 21
• to picture showing, fit the belt well.
OPERATION
When working with the equipment, the appropriate
plastic guard hood for cutting blade mode or cutting
line mode must be fi tted to prevent objects being
thrown out by the equipment.
The integrated blade in the cutting line guard hood
automatically cuts the line to the optimum length.
Fig. 16
Filling with fuel
m Danger of injury! Fuel is explosive!
Turn off and cool the motor down before filling
the tank with fuel. You must observe all safety
instructions relating to handing fuel.
