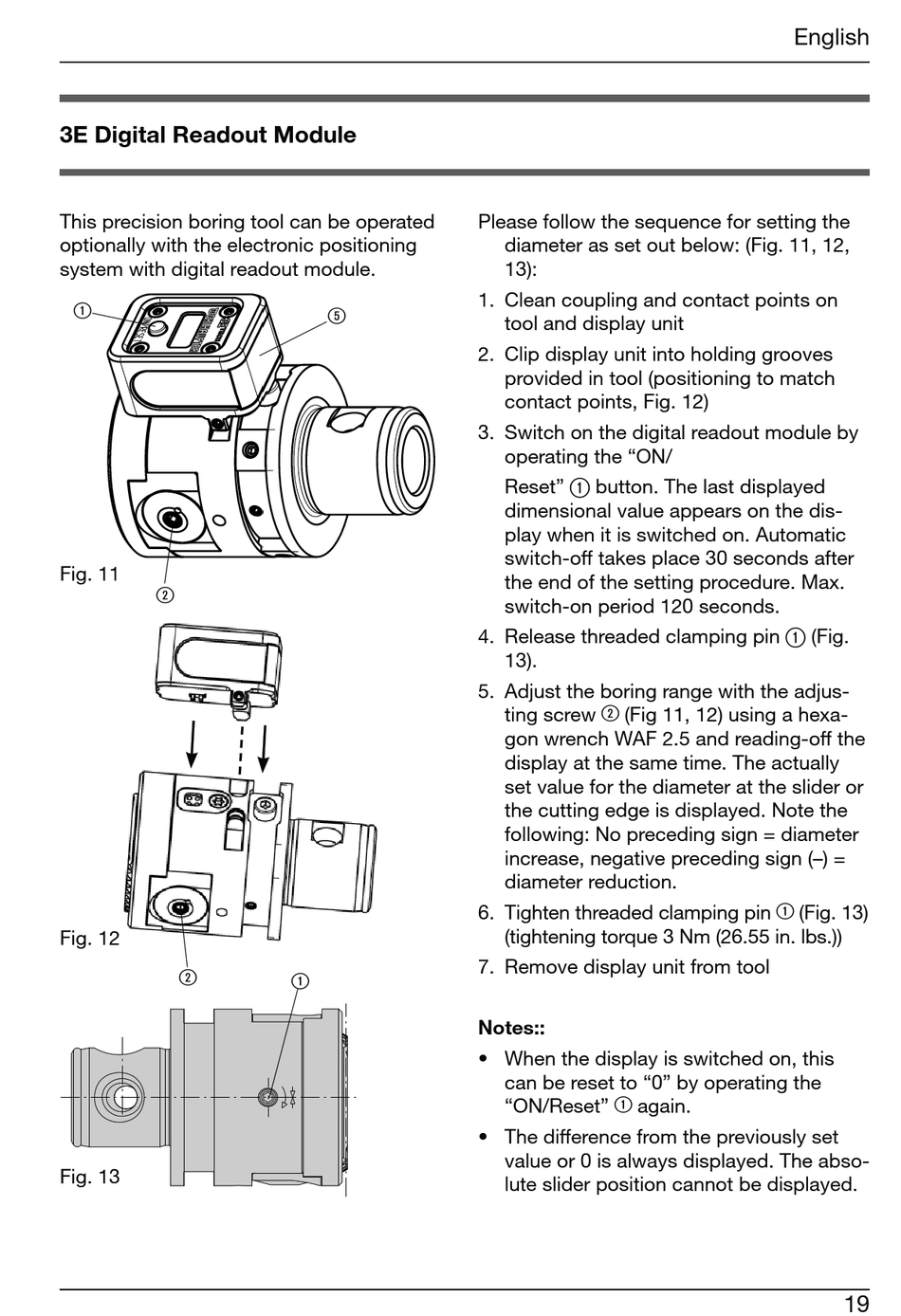

3E Digital Readout Module
This precision boring tool can be operated
optionally with the electronic positioning
system with digital readout module.
1
Fig. 11
2
Fig. 12
2
Fig. 13
5
1
Please follow the sequence for setting the
diameter as set out below: (Fig. 11, 12,
13):
1. Clean coupling and contact points on
tool and display unit
2. Clip display unit into holding grooves
provided in tool (positioning to match
contact points, Fig. 12)
3. Switch on the digital readout module by
operating the "ON/
Reset" button. The last displayed
1
dimensional value appears on the dis-
play when it is switched on. Automatic
switch-off takes place 30 seconds after
the end of the setting procedure. Max.
switch-on period 120 seconds.
4. Release threaded clamping pin
13).
5. Adjust the boring range with the adjus-
ting screw (Fig 11, 12) using a hexa-
2
gon wrench WAF 2.5 and reading-off the
display at the same time. The actually
set value for the diameter at the slider or
the cutting edge is displayed. Note the
following: No preceding sign = diameter
increase, negative preceding sign (–) =
diameter reduction.
6. Tighten threaded clamping pin
(tightening torque 3 Nm (26.55 in. lbs.))
7. Remove display unit from tool
Notes::
• When the display is switched on, this
can be reset to "0" by operating the
"ON/Reset" again.
1
• The diff erence from the previously set
value or 0 is always displayed. The abso-
lute slider position cannot be displayed.
English
(Fig.
1
(Fig. 13)
1
