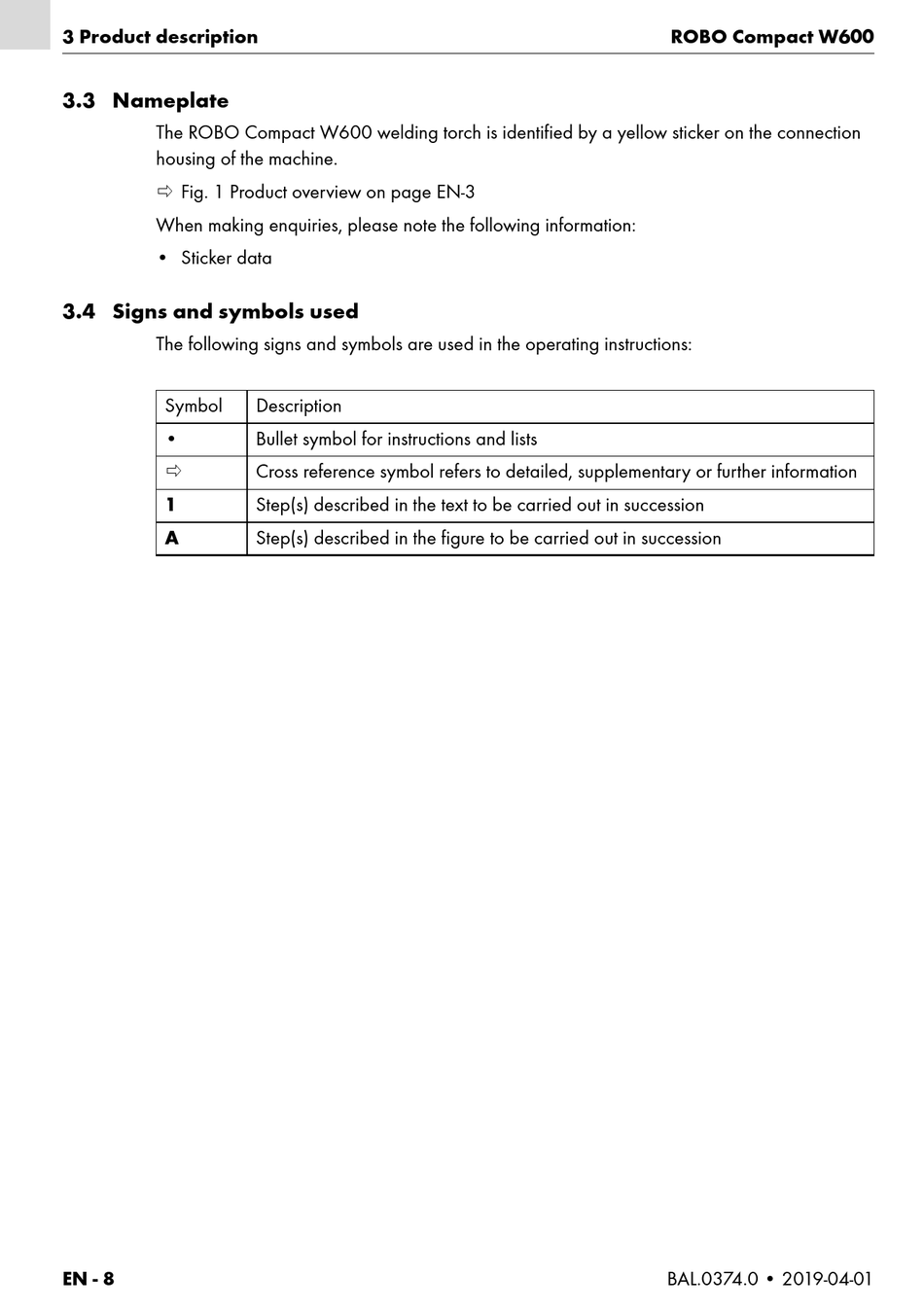

3 Product description

3.3 Nameplate

The ROBO Compact W600 welding torch is identified by a yellow sticker on the connection
housing of the machine.
 Fig. 1 Product overview on page EN-3
When making enquiries, please note the following information:
• Sticker data

3.4 Signs and symbols used

The following signs and symbols are used in the operating instructions:
Symbol
•

1
A
EN - 8
Description
Bullet symbol for instructions and lists
Cross reference symbol refers to detailed, supplementary or further information
Step(s) described in the text to be carried out in succession
Step(s) described in the figure to be carried out in succession
