Installation
5.2

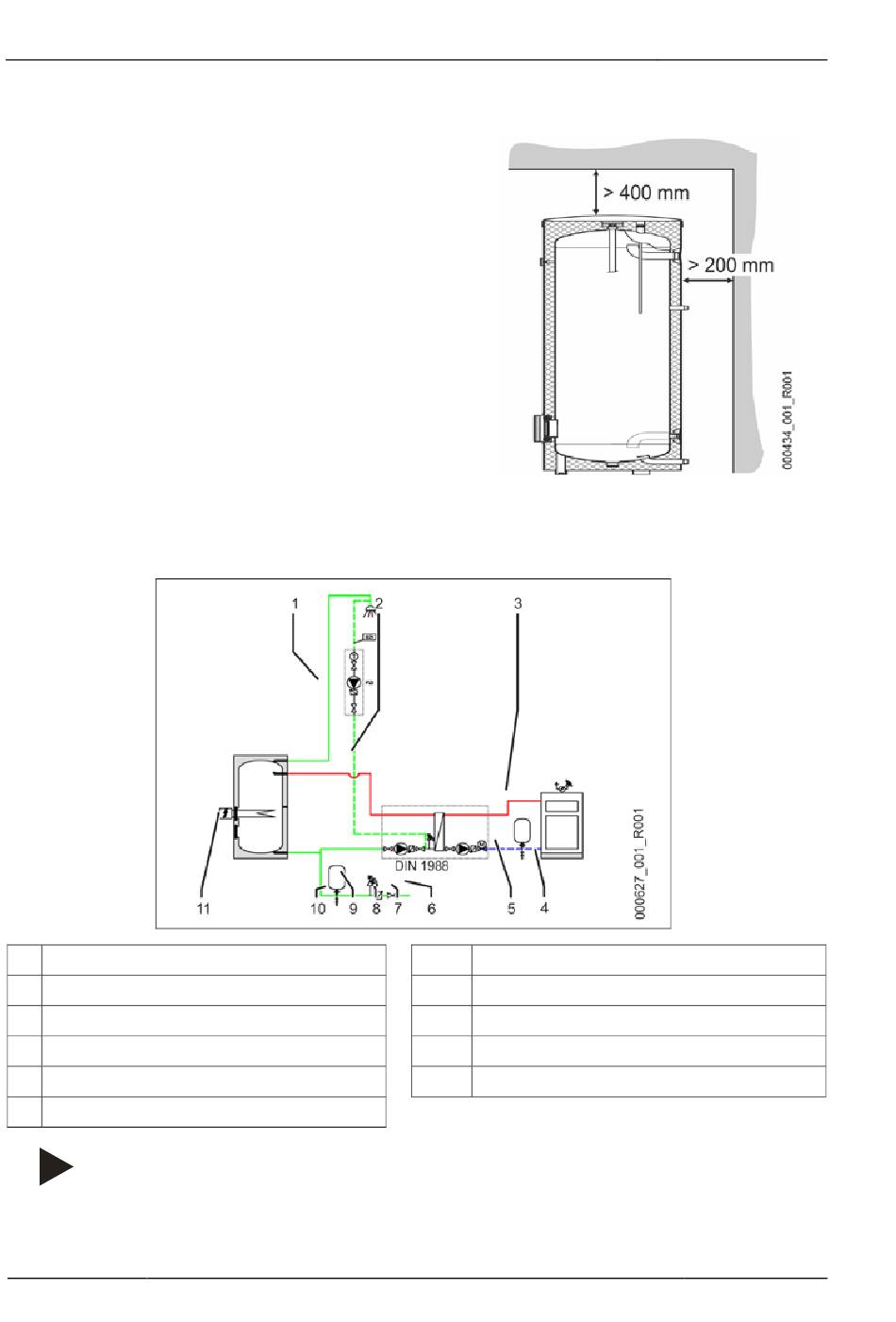

Installation location

Ensure the following conditions are fulfilled for the
installation location:
• Frost safe room.
– In damp rooms, use a platform.
• Load bearing, level floor.
• Collection tray with connected drain.
• Allow for the minimum distances to the side and
above.
• Take the position of the connections from the
technical data.
see chapter 4 "Technical data" on page 6
5.3

Tank assembly

Make the connection to the cylinder at the cold water pipe in accordance with DIN 1988.
1 Hot water (WW)
2 Circulation (ZK)
3 Heat flow (HV)
4 Boiler (HK)
5 Heat return (HR)
6 Cold water (KW)
Note!
Prevent natural circulation of the water.
– Use non-return valves or check valves with backflow preventers in the cylinder circuits.
10 — English
7
8
9
10
11
Storatherm — 25.07.2018
Isolation valve
Return flow prohibiter (pipe separator)
Diaphragm expansion vessel
Drain
Electrical backup
