REMOTE CONTROL KIT FOR WATER COOLERS
INSTALLATION:

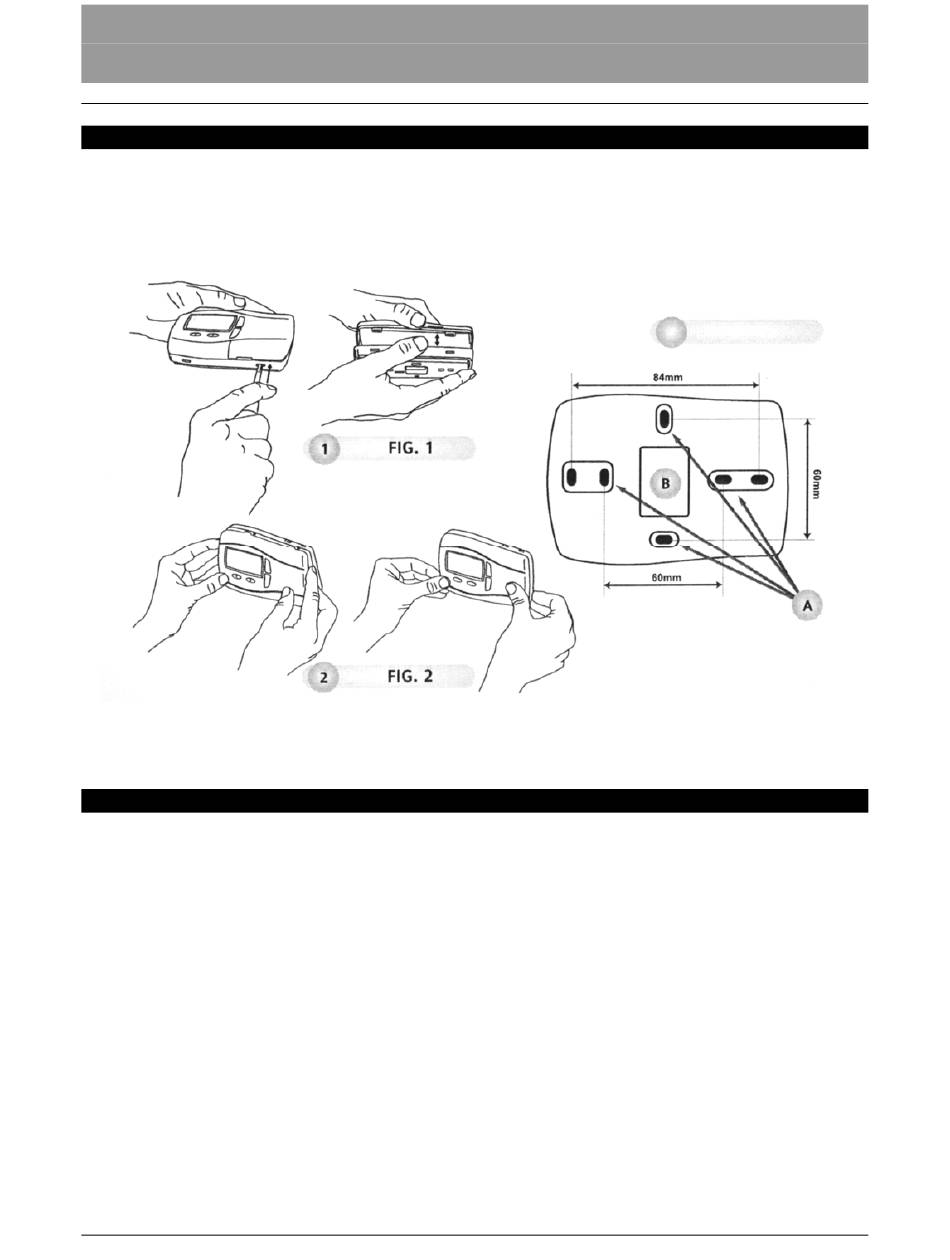

Open carefully the Remote Control panel using a screwdriver as indicated in fig.4.
Separate the two half-covers and fix the lower one to the wall with screws and plugs, inserted in the slots A.
Make sure that the connection cable comes out of the rectangular window B.

MAKING THE CONNECTIONS:

Disconnect the power supply to the system.
• Connect the piece of tri-polar cable (red/blue/black) within the package to the ST544 terminal on-board the
machine using the white tri-polar JST connector at the end of the cable (refer to the terminal label).
• Use terminals (not supplied) to connect a cable with three conductors which must be long enough to reach the
remote terminal.
• Connect the cable to the green terminal board within the remote terminal respecting the polarity as indicated in
the following design.
AND HEAT PUMPS
16
Fig. 4
