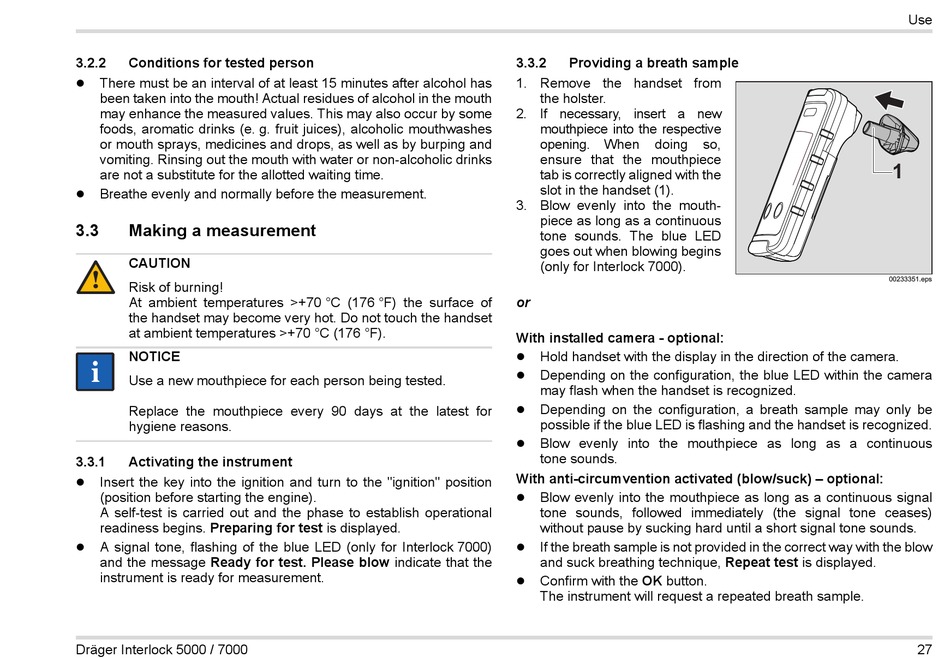

Conditions for tested person

There must be an interval of at least 15 minutes after alcohol has

been taken into the mouth! Actual residues of alcohol in the mouth
may enhance the measured values. This may also occur by some
foods, aromatic drinks (e. g. fruit juices), alcoholic mouthwashes
or mouth sprays, medicines and drops, as well as by burping and
vomiting. Rinsing out the mouth with water or non-alcoholic drinks
are not a substitute for the allotted waiting time.
Breathe evenly and normally before the measurement.

3.3

Making a measurement

CAUTION
!
Risk of burning!
At ambient temperatures >+70 °C (176 °F) the surface of
the handset may become very hot. Do not touch the handset
at ambient temperatures >+70 °C (176 °F).
NOTICE
i
i
Use a new mouthpiece for each person being tested.
Replace the mouthpiece every 90 days at the latest for
hygiene reasons.
3.3.1

Activating the instrument

Insert the key into the ignition and turn to the "ignition" position

(position before starting the engine).
A self-test is carried out and the phase to establish operational
readiness begins. Preparing for test is displayed.
A signal tone, flashing of the blue LED (only for Interlock 7000)

and the message Ready for test. Please blow indicate that the
instrument is ready for measurement.
Dräger Interlock 5000 / 7000
3.3.2

Providing a breath sample

1. Remove the handset from
the holster.
2. If necessary, insert a new
mouthpiece into the respective
opening. When doing
ensure that the mouthpiece
tab is correctly aligned with the
slot in the handset (1).
3. Blow evenly into the mouth-
piece as long as a continuous
tone sounds. The blue LED
goes out when blowing begins
(only for Interlock 7000).
or
With installed camera - optional:
Hold handset with the display in the direction of the camera.

Depending on the configuration, the blue LED within the camera

may flash when the handset is recognized.
Depending on the configuration, a breath sample may only be

possible if the blue LED is flashing and the handset is recognized.
Blow evenly into the mouthpiece as long as a continuous

tone sounds.
With anti-circumvention activated (blow/suck) – optional:
Blow evenly into the mouthpiece as long as a continuous signal

tone sounds, followed immediately (the signal tone ceases)
without pause by sucking hard until a short signal tone sounds.
If the breath sample is not provided in the correct way with the blow

and suck breathing technique, Repeat test is displayed.
Confirm with the OK button.

The instrument will request a repeated breath sample.
so,
