SECTION 4—INSPECTION AND COMPRESSOR INTERFACE
Disconnecting the Cylinder from the Compressor
NEVER use tools of any kind to connect/disconnect the
cylinder and the compressor. Otherwise, severe injury
and/or damage may occur.
NOTE: For this procedure, refer to FIGURE 4.4.
1. Press the compressor power switch to the Off (O) position.
2. Grasp the cylinder/regulator assembly in the area behind
the cylinder gauge.
3. With the other hand, grasp the outer ring (sleeve) of the
connector fillport and push DOWN.
4. Lift up on the cylinder/regulator assembly to remove from
the connector fillport.
Cylinder
Gauge
Compressor
Connector Fillport

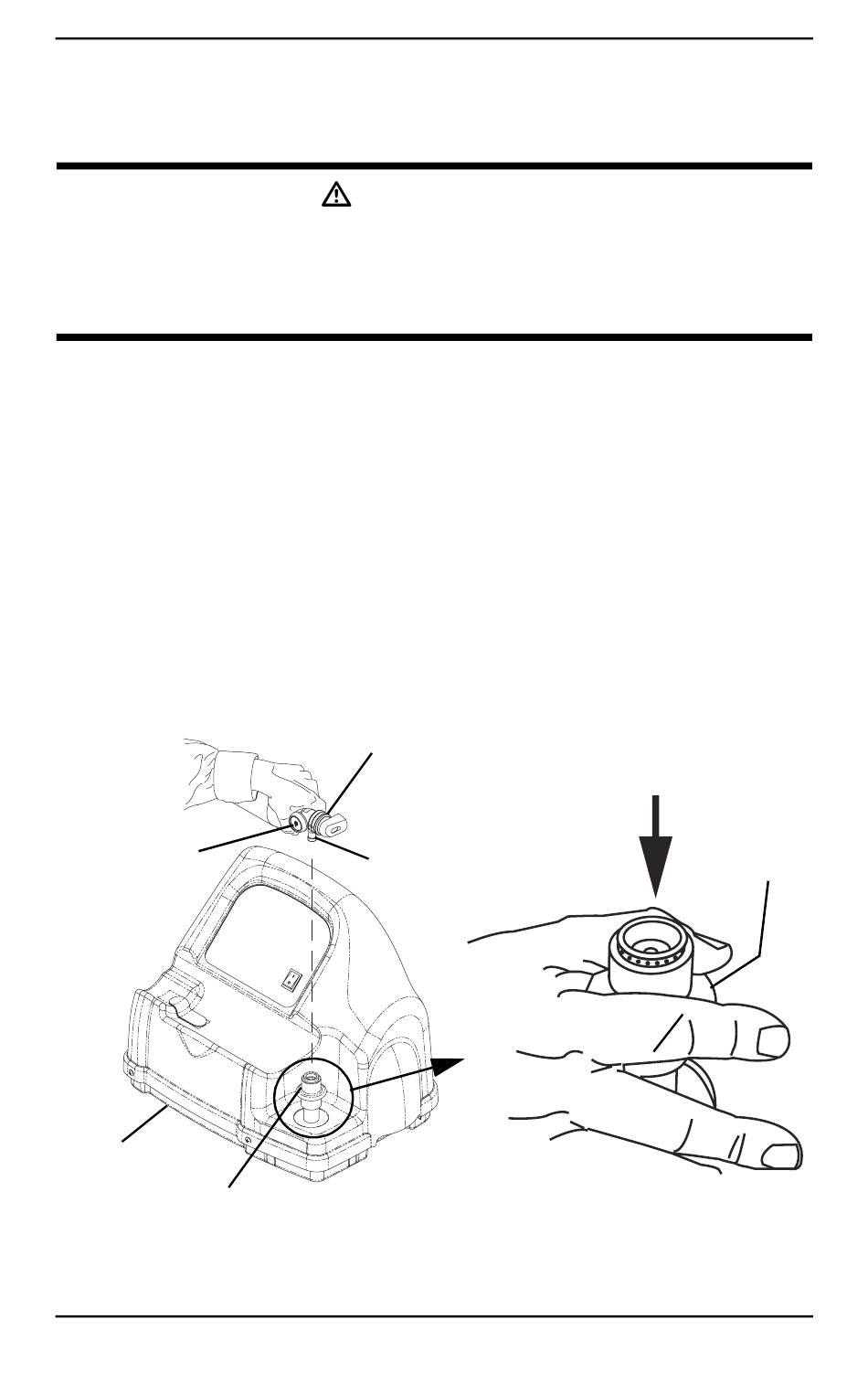

FIGURE 4.4 Disconnecting the Cylinder from the Compressor
HomeFill
™
WARNING
Cylinder/Regulator
Assembly
Cylinder
Fillport
18
PUSH DOWN
Outer Ring
(Sleeve)
Part No 1141477
