3.3 STARTUP PROCEDURE
You start up the RH1-TP/FL by connecting
the supply voltage via the 5-pin terminal
block. Lock the terminal block with the
locking screw at the side.
3.4 DISMANTLING
To take the RH1-TP/FL off the ISO/DIN rail,
insert a screwdriver horizontally under the
housing into the locking slide, pull it (with-
out tipping the screwdriver) downwards
and fold the RH1-TP/FL upwards (Fig. 6).
4. Further support
In the event of technical queries, please talk
to your local Hirschmann sales partner or
directly to the Hirschmann agency in your
country. You can find the addresses
6
RH1-TP/FL
P1
P2
DA
CD
STAT1
STAT2
STAT3
STAT4
STAT5
Port 1
Port 2
Port 3
Locking slide

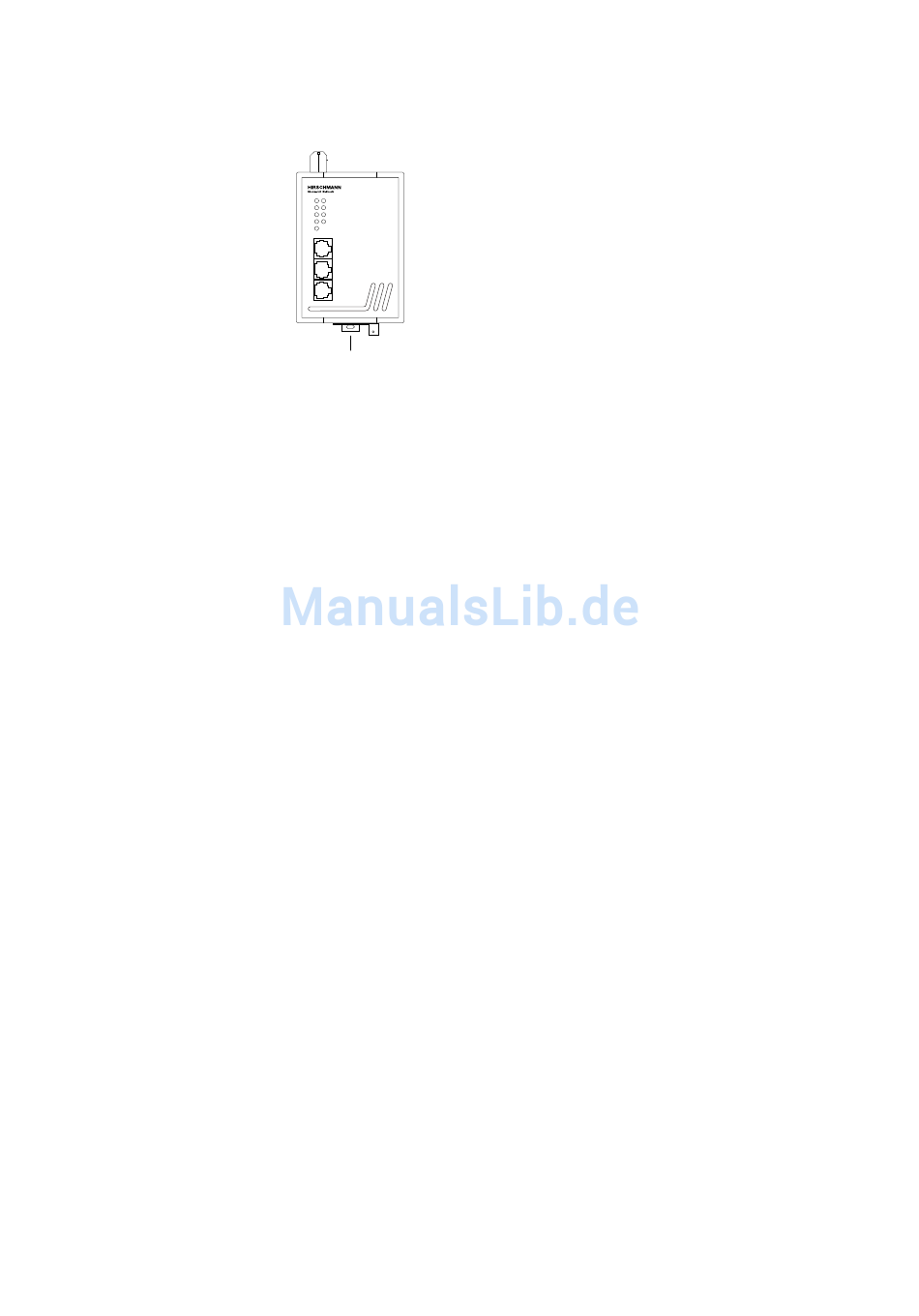

Fig. 6: Dismantling the RH1-TP/FL
– on the Internet
(http://www.hirschmann.de)
Our hotline in Germany
Tel: +49-7127-14-1538 (Fax: -1542)
and our US support office
Tel. +800-225-0524
are also at your disposal.
