Notes
• Confirm with the #-button, cancel with the *-button.
• Non-confirmed entries expire after 10 sec.
• Factory settings of the 10 code memory locations are represented in brackets (WE = 0
or WE = 1).
• SpNr = Memory location number

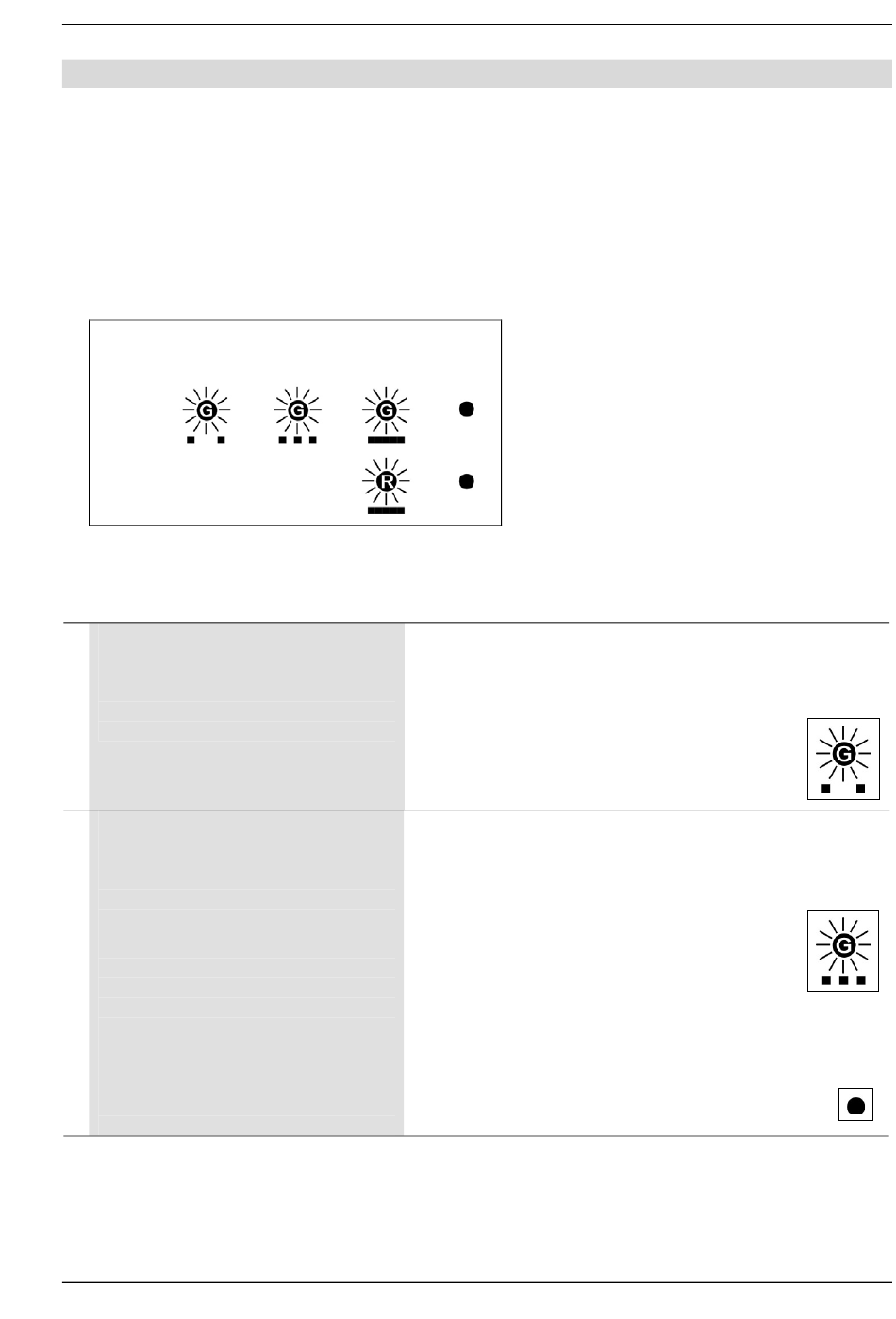

• Legend of LED indication modes:
flashes
every 2
sec
Green
Red
Initiation of the programming
0 Only if the function 2f, option 4 is pro-
grammmed:
Switch on programming mode of
the system and switch off again
1 Move the device into the program-
ming mode
Enter master code
(Begin the programming within 2 min!)
Correct entry
Incorrect entry, unknown master
code
No entry
TCS TürControlSysteme AG • Geschwister-Scholl-Str. 7 • 39307 Genthin
Phone.: +49 39 33 / 87 99 10 • Fax: +49 39 33 / 87 99 11 • www.tcs-germany.com
27
Programming code lock
flashes
ON
(WE = 0)
On power supply and control unit:
• Briefly press RUN/PROG button, LED flashes.
• Briefly press RUN/PROG button, LED comes ON.
On AZF50000:
Two-colored LED flashes green for 2 min
Entry:
(WE = 123456)
A positive acknowledgement tone (single
beep) sounds for 3 sec, flashes LED green
(2 min).
The device is ready for programming.
A negative acknowledgement tone (triple beep) sounds on
activation of the #-button.
If code is 3 x incorrect: code entry is blickes for 2 mint.
Start again from the beginning.
For 2 min no command: programming mode ends.
OFF
* Mastercode #.
Subject to change without notice.
PI_PZF5000_Art0018993_1v0.doc
04/2007
