For using a loop resistence up to 60 ohms, the
AZF50000 must be adjusted.
P-wire required!

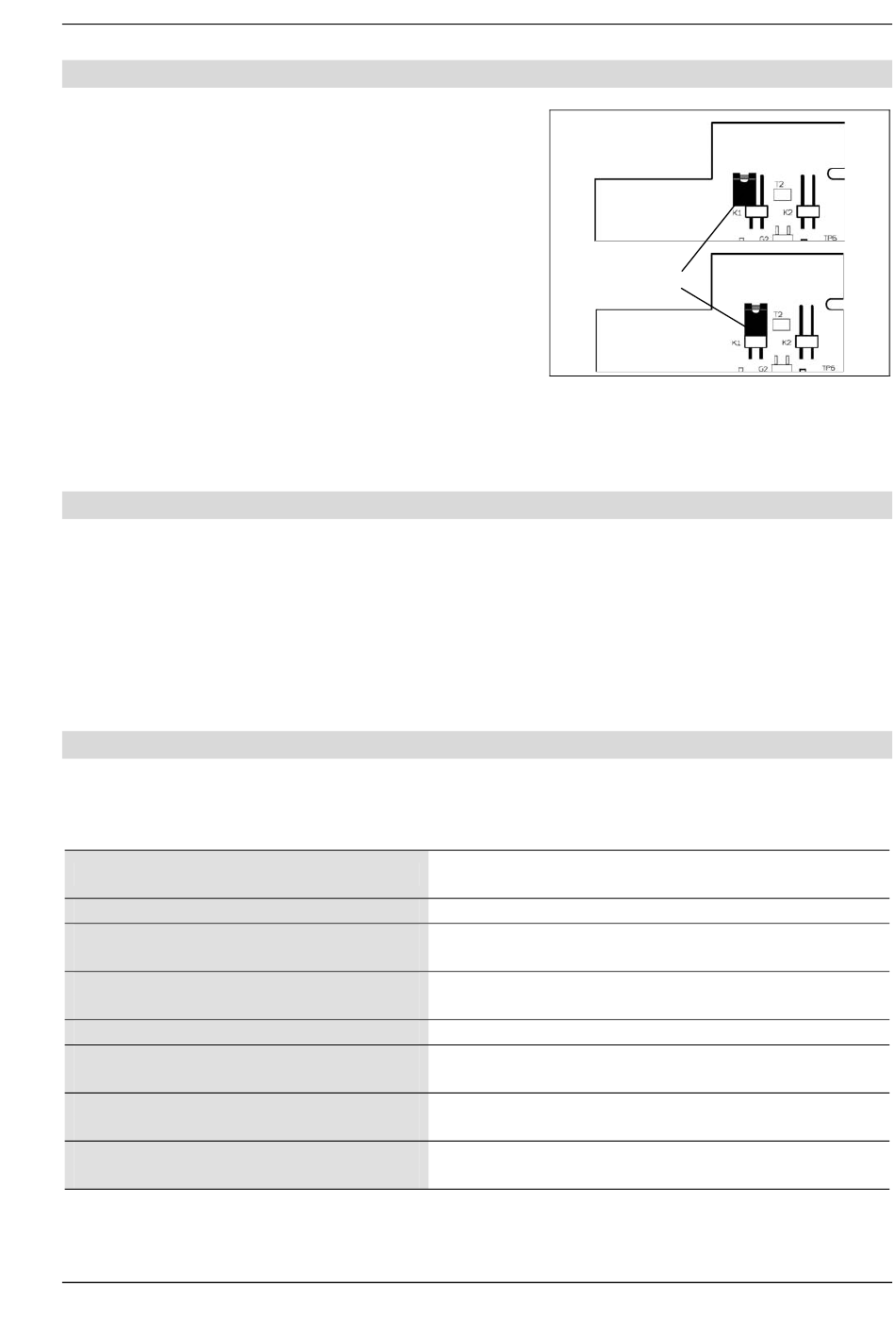

• Remove the front panel. At the back is the board
with a jumper which is put on one contact (deliv-
ery includes).
• Put the jumper on both contacts.
• Fully install the devices of the system.
• Check the a and b wires for short circuits.
• Switch on the mains supply.

Factory settings code lock

The code lock AZF50000 has an EEPROM, in which the following factory settings are stored:
AS address for door opener function
R-contact switch time
LED lighting duration
Duration of acoustic signalling
Programming lock
On receiving of door opener protocol
switch R-contact
Programming mode activation on the
bus control unit only
Acoustic signalling of the button ac-
tuation
TCS TürControlSysteme AG • Geschwister-Scholl-Str. 7 • 39307 Genthin
Phone.: +49 39 33 / 87 99 10 • Fax: +49 39 33 / 87 99 11 • www.tcs-germany.com

Adjustment for system with long lines

Commissioning

25
Jumper

Setup

0
Approx. 3 sec (= 24 x 128 msec)
Transfer R-contact switch time approx. 3 sec
(= 255)
Transfer R-contact switch time approx. 3 sec
(= 255)
OFF (= 0)
active (= 1)
OFF (= 0)
active (= 1)
