Operating Instructions
TR4

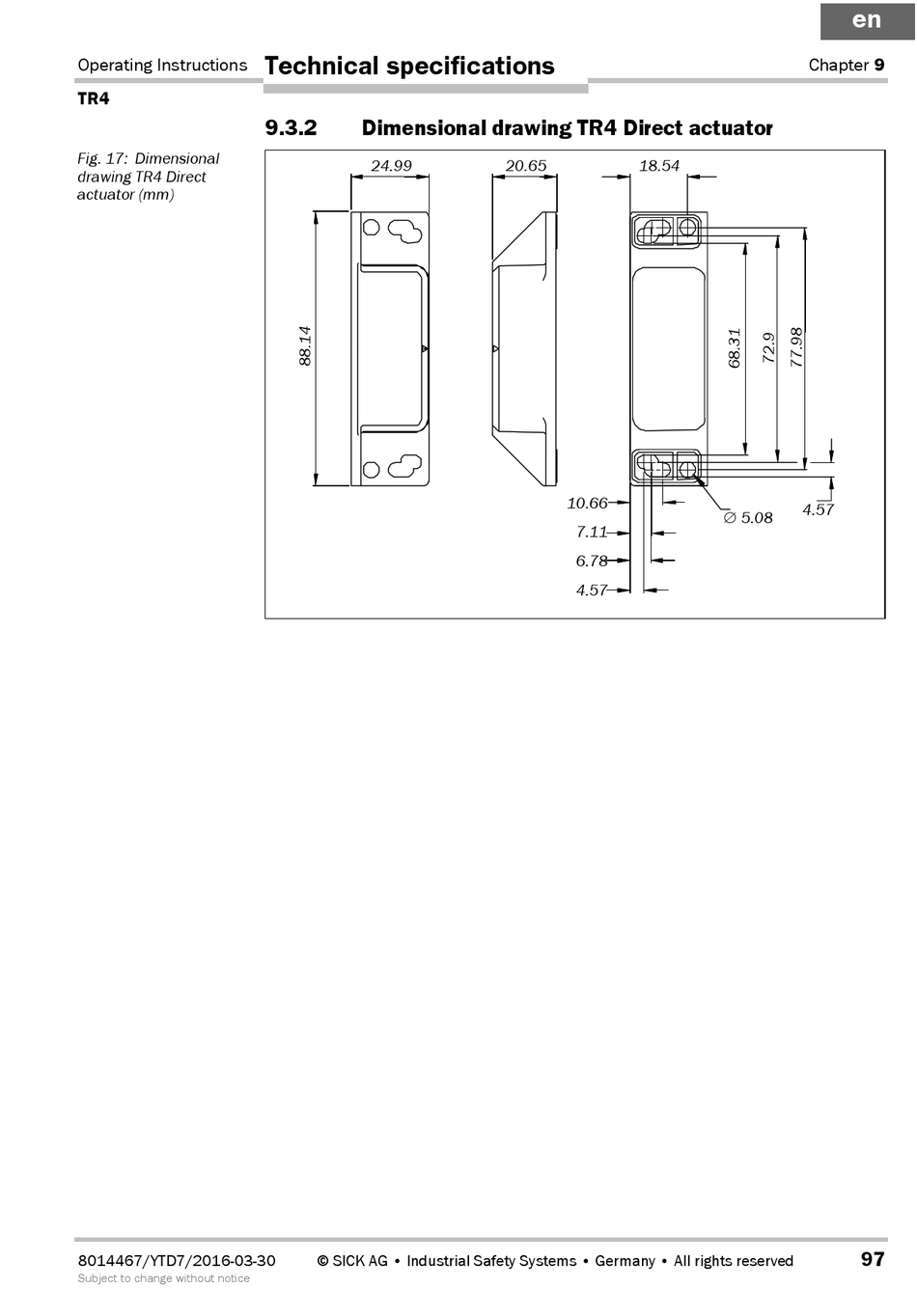

Fig. 17: Dimensional
drawing TR4 Direct
actuator (mm)
8014467/YTD7/2016-03-30
Subject to change without notice
Technical specifications
9.3.2

Dimensional drawing TR4 Direct actuator

24.99
© SICK AG • Industrial Safety Systems • Germany • All rights reserved
20.65 18.54
10.66
7.11
6.78
4.57
en
Chapter 9
4.57
⊕ 5.08
97
