Truma DuoControl vertikal Einbauanweisung Seite 17

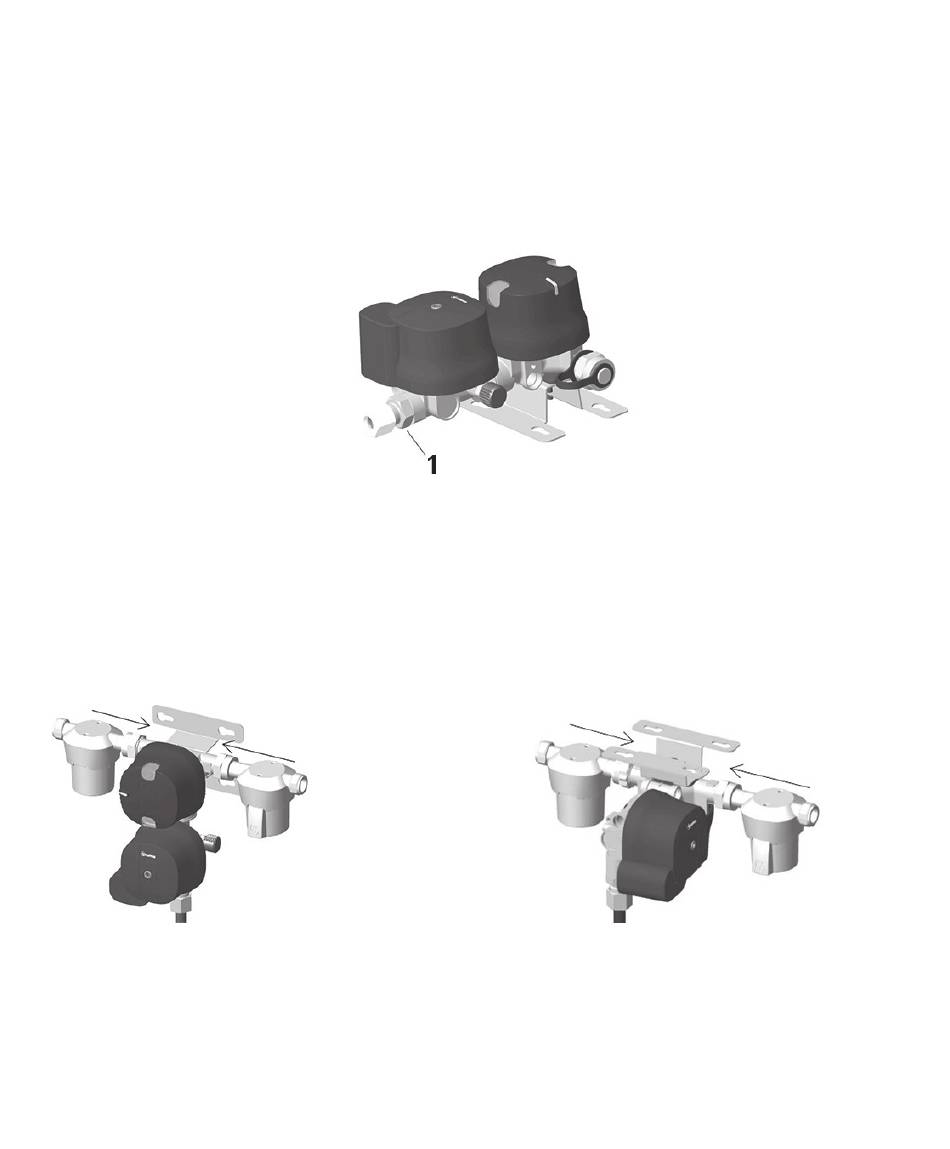

– Connect the 8 mm or 10 mm diameter gas pipe to the regulator
outlet in accordance with the respective installation instructions for
olive screw connections (e.g. EN ISO 8434-1). When tightening,
carefully use a second spanner on the provided spanner surface (1)
to stop the entire assembly turning. Make sure that the olive and
the tapered seal are in perfect condition.
Figure 3
– Screw the outlet of the gas filter onto the regulator inlet, then se-
curely screw the high-pressure hose onto the inlet of the gas filter.
Make sure that the seals and thread are in perfect condition.
Figure 4a Figure 4b
