5) Camera control
• 7 PIN: RS 485+
• 8 PIN : RS 485-

7. Lens Connection

The lens is not supplied with this camera. Purchase a lens suitable for your environment.
This camera accepts the Auto Iris lens and both, C mount and CS mount lens.
NOTES
• For using main functions it is recommended to use Auto Iris Lens with DC type.
• If the lens is marked with fingerprints other marks, the image quality might be poor.
• It is recommended to use a high quality lens to improve the image quality under low illumination.
7.1 Installing Auto Iris Lens

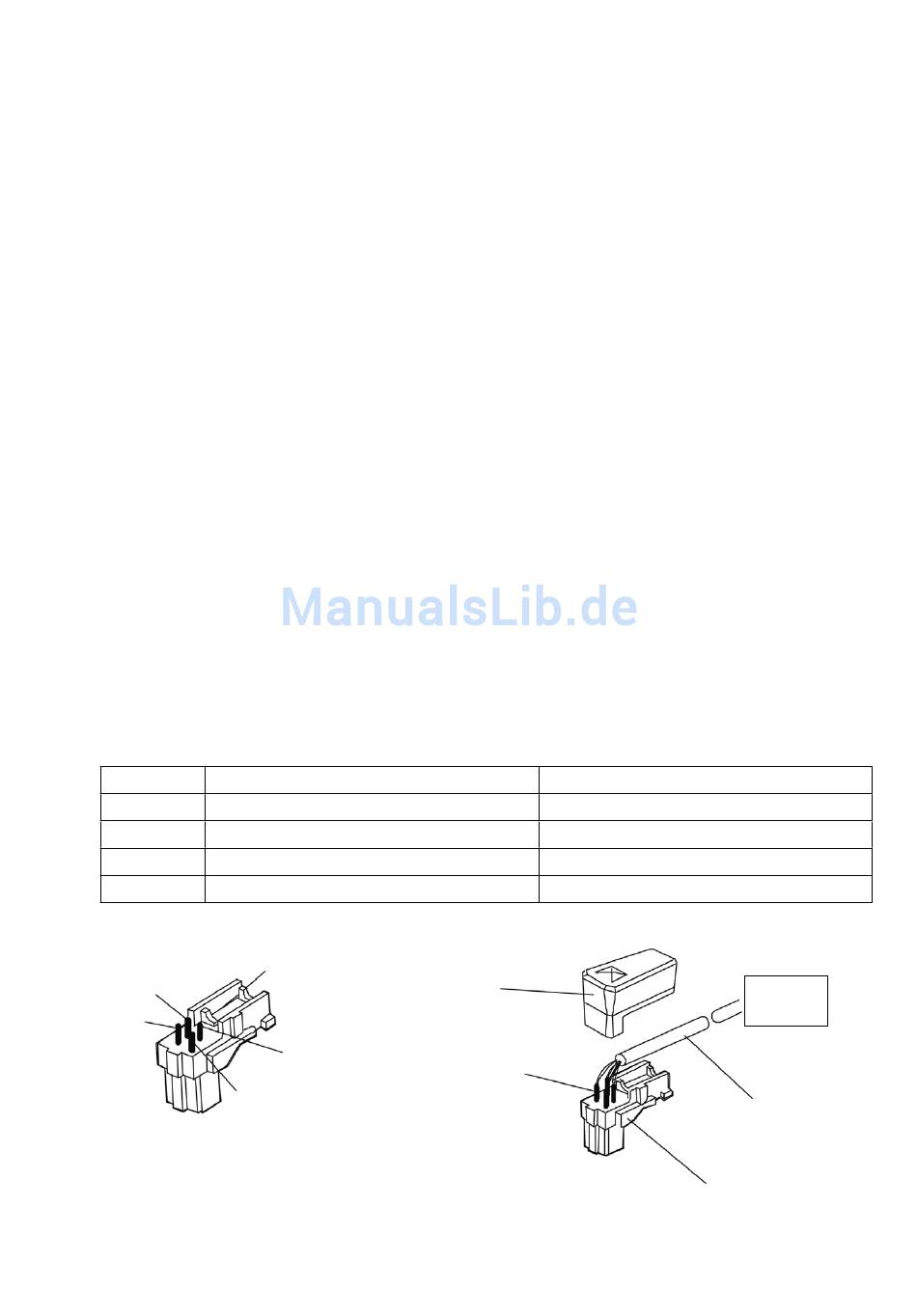

. Remove the cover from the iris lens plug supplied, and solder the lens cable to the plug as
shown below.
Pin No.
1
2
3
4
Pin 3
Pin
Pin
. Remove the protective cap, and attach the lens to the camera by turning clockwise.
Video Type
--- Red (Power source)
--- N.C.
--- White (Video signal)
--- Black (GND)
Rib
Connector
Pin 4
cover
Heat
shrinkable
tubes
3
DC Type
--- Damping –
--- Damping +
--- Drive +
--- Drive –
Automatic
Iris lens
Iris control
cable
Connector
