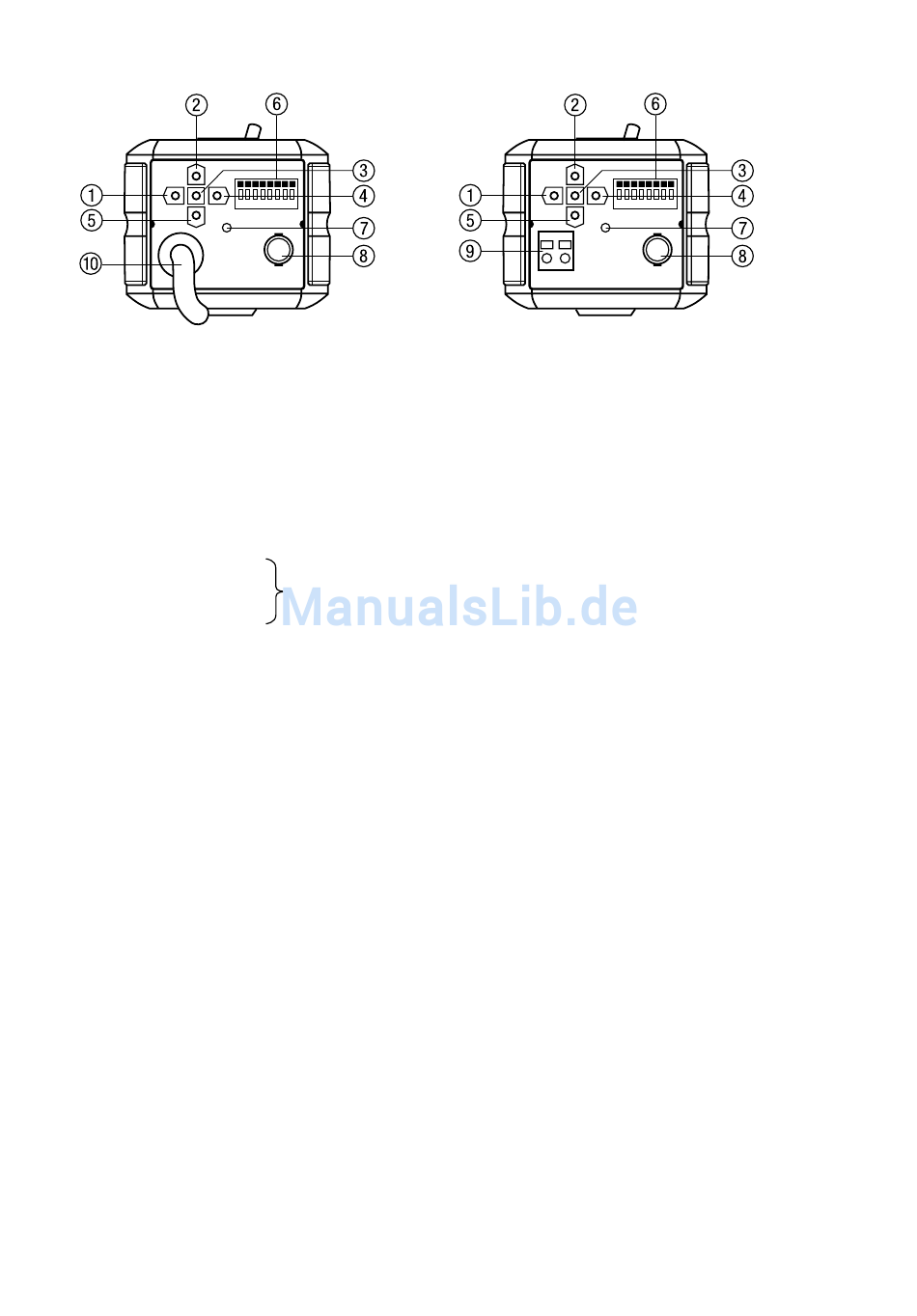

Rear View
230V Type
1 Left Button
2 Up Button
3 Enter Button
4 Right Button
5 Down Button
6 Day / Night External I/O
ALARM OUT
RS - 485
5. Camera Adjustment
5.1 White Balance
1)
Auto (Auto White Balance): AWB mode (800ºK ~ 0500ºK)
2)
Push/Hold: Push&Hold mode
• T o find the optimal setting for the current luminance environment in this mode, set the direction towards a
sheet of white paper and select Hold and press enter button. If the environment changes, readjust it.
3)
CRS Mode (Colour Rolling Suppression): Decrease colour rolling effect
• This operation take some time about 0 seconds and user can stop this operation by pressing Enter button.
• When CRS mode is on, colour tone can be weak.
4)
Indoor: Set colour temperature to indoor (300ºK)
5)
Outdoor: Set colour temperature to outdoor (6300ºK)
6)
FL (Fluorescent Light): Set colour temperature to fluorescent light fixed gain.
7)
User (User Set White Balance): Adjust red or blue gain
• R(R-GAIN): Adjust R-GAIN value (0-55)
• B(B-GAIN): Adjust B-GAIN value (0-55)
12VDC/24VAC Type
7 Power Indicator
8 Video Out Connector (BNC)
9 AC/DC Compatible Input Terminal
10 AC Power Cord
Terminal Block
3
