NOTE: If object is passing so fast through the two area, counting is not operating. In this case, adjust
to expand space between two areas or decrease size of area.
If passing object is too long, counting result can be inaccuracy. In this case, adjust to expand
space between two areas or adjust to decrease size of area.
If two object passing the area in the same time, the results can be inaccuracy.
8) Entrance: Entrance counting mode. The object move in through the entrance, counting number increases.
• Size: Press Enter button adjust the size of the Entrance zone.
• Posi: Press Enter button adjust the Position of the Entrance zone.
• Alarm Cnt: Set alarm out entrance count. Alarm count number is delaying number before output alarm.
• Reset Cnt: Entrance count reset

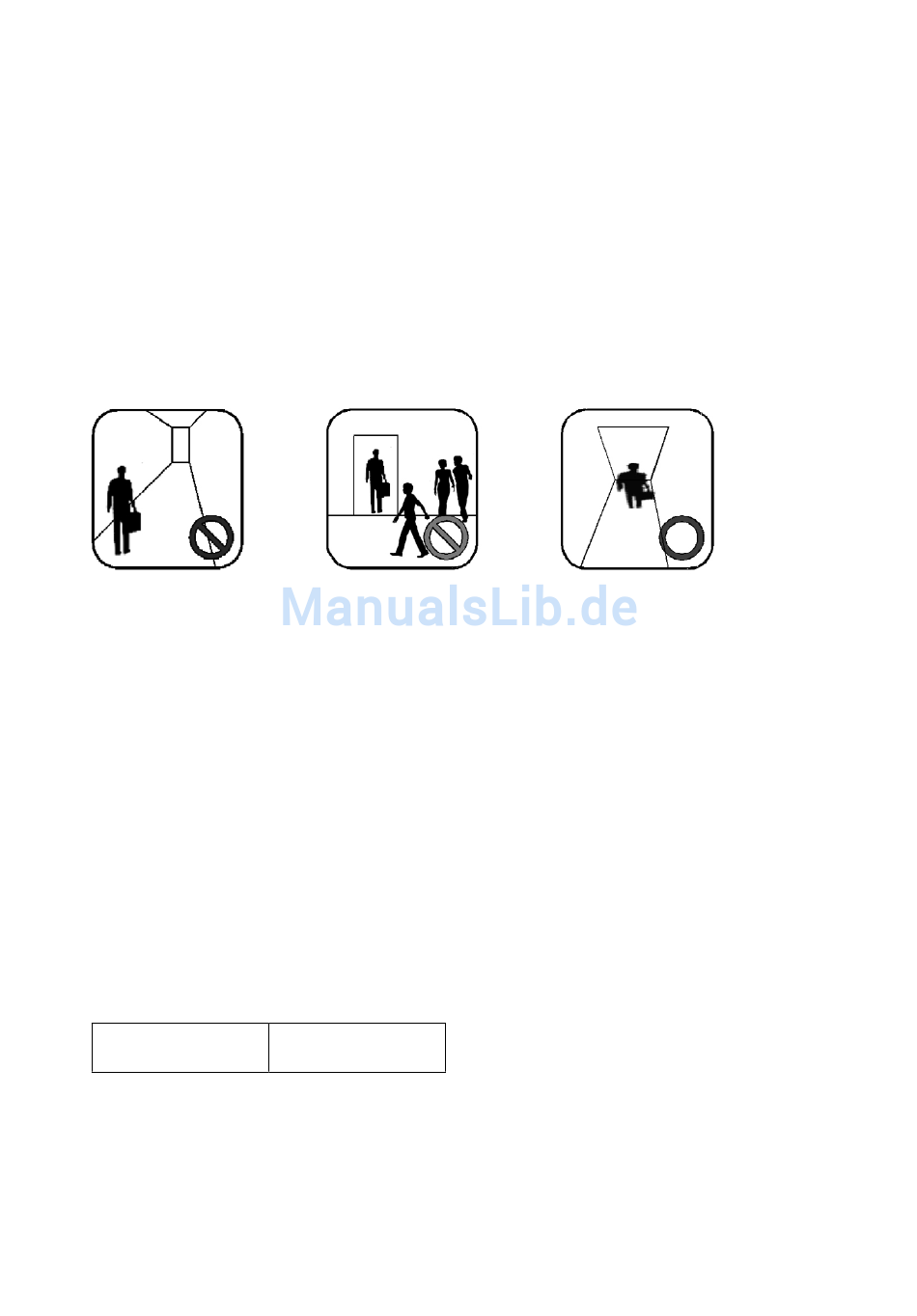

NOTE: Crossing object is not considered. / Several objects will not be detected.
If the distance is increases between the camera and entrance, the result can be inaccuracy.
The distance is too long

5.6 Picture/DNR

1) Sharpness: Adjust sharpness of outlines (0~5)
2) Resolution: Select high resolution mode (Low / Mid / High)
3) 2D-NR: Select D noise reduction level (0~6)
• D-NR: Noise reduction on a frame
4) 3D-NR: Select 3D noise reduction level (0~3)
• 3D-NR: Noise reduction through the several frame
5) DNR Demo: Select DNR Demo Display On/Off using the Left and Right buttons
None DNR Effect
Display
Several Object
Crossing Object
DNR Applied
Display
6
Camera Installed at the ceiling:
Crossing object is none
One object is passing.
