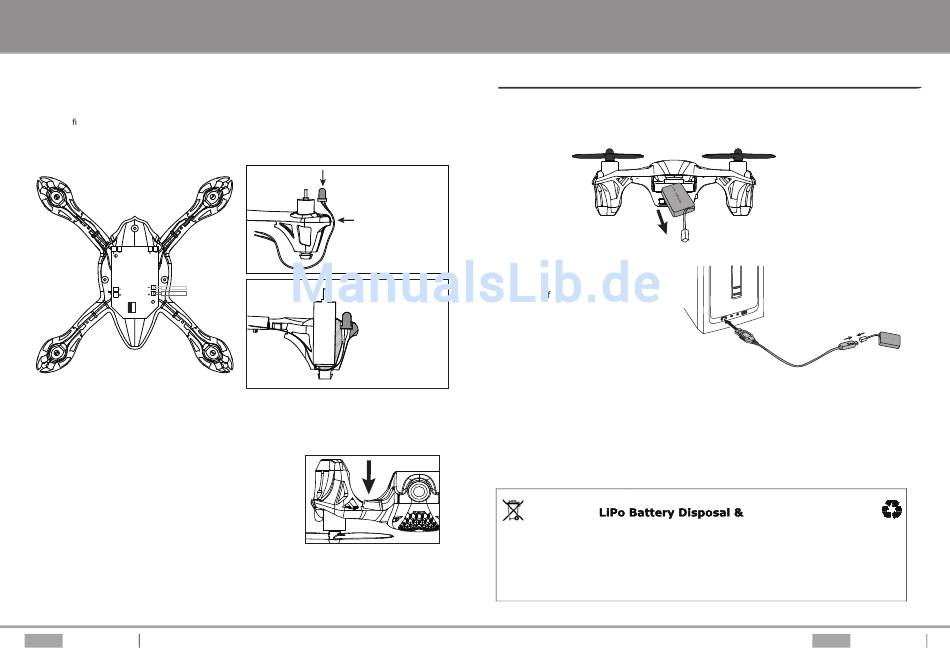

9. LED removal & installation.
Removal: Unscrew and remove the lower shell and the rubber feet. Then unsolder the red and
yellow wires.
Installation: Solder the red wire on anode/positive (+), the yellow on cathode/negative (-), press the
LED wires rst, then the motor wires in the leg slots. Install the lower shell, then the rubber feet. You
can determine the color of the LED lights by looking at the color of the LED wire insulation at the
bottom of the LED lens: red color is red light, blue color is blue light.
LED LED
Yellow
LED
LED Red
10. The motors do not spin freely after a crash.
Press the shaft down from the top of the propeller and motor to remove any objects, or replace
the motor.
11. The arm of the X4 separates after a hard landing or crash.
This is specially designed to absorb impact from hard crashes.
Simply force the arms to snap back into the joint position as
shown.
12. One or more motors stop working.
(1) Replace the motor.
(2) Resolder any broken motor connections.
(3) Spin the propellers to see if it jammed the motors, make sure the propellers can spin normally.
24
H107D
THE HUBSAN X4
1. First line up the wires with
the slots. The LED's black
insulated cathode(-) wire
must be outermost.
2. Line up the LED to the round
holder slot. Press the wires
carefylly into the slot and secure
them neatly into the arm.
Installation is complete
Anatomy

4 CHARGING THE LI-PO BATTERY

4.1 3.7V 380mAh LiPo Battery
4.1.1 Take out the battery from the bottom of the X4.
4.1.2 Connect the battery with USB charger, then connect the USB charger to a computer or other
USB connector, such as a smartphone
charger. The LED lights up while charging
and turns o when charging is complete.
The voltage of the USB is +5±0.5V.
4.2 Safety Advisory Notice
Always partially charge your LiPo battery before storage. LiPo batteries retain the power over a
reasonable period; It is not normally necessary to recharge stored LiPo batteries unless stored for
periods longer than 3-6 months.
If your LiPo battery has been over-discharged, it will not be possible to recharge it again.
Lithium-Polymer(LiPo) batteries must not be placed in with household trash. Please contact
your environmental or waste agency or the supplier of your model for local regulations and
the location of your nearest LiPo battery recycling center.
www.hubsan.com

Recycling

05
