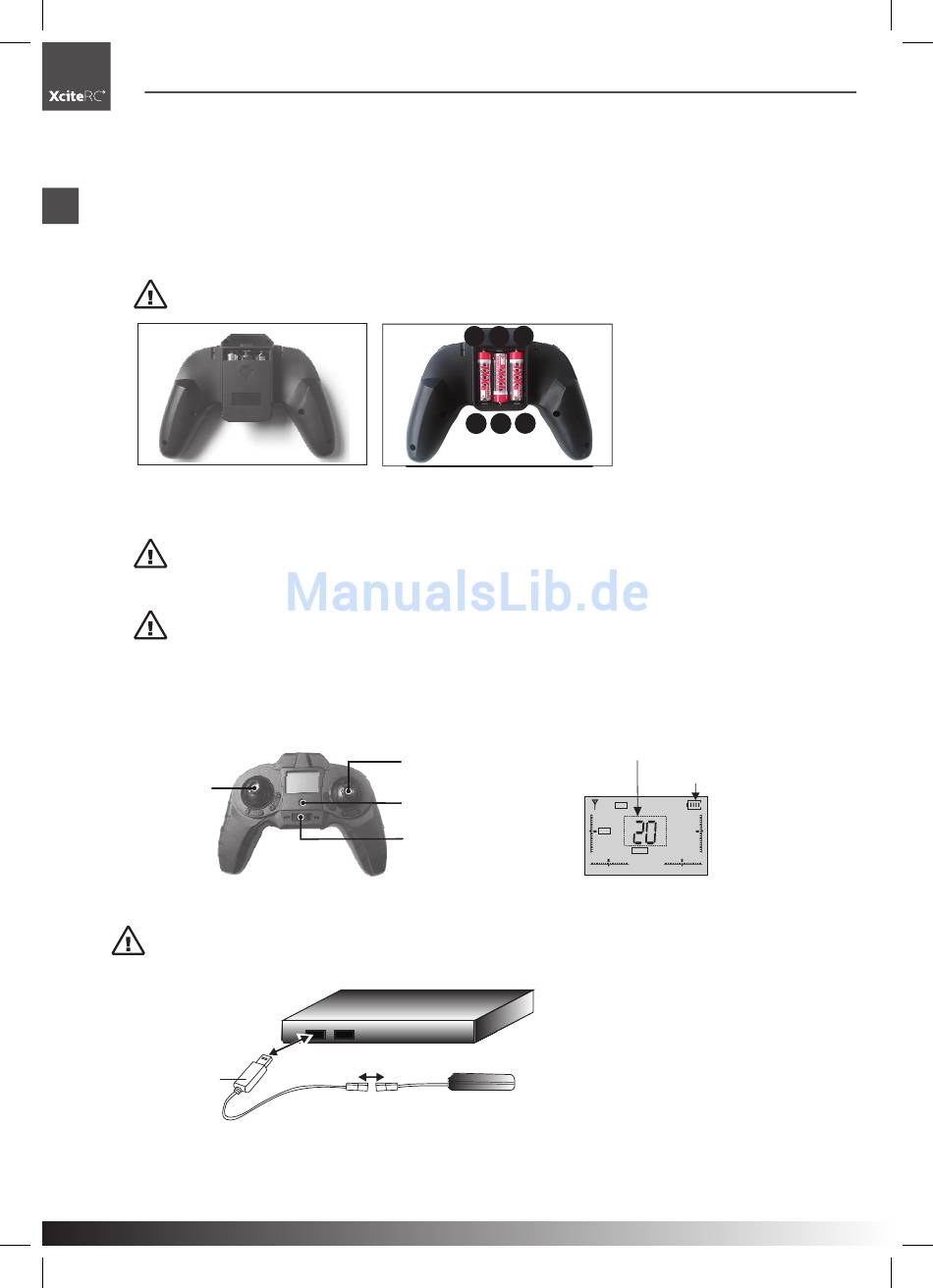

The remote control system

Here you get an overview of the remote control system of your XciteRC Rocket 260 3D and its various fea-
tures and settings. Before the fi rst fl ight, you should absolutely have read and understood all these functions
EN
and settings.
• Do make sure that the transmitter is turned off - POWER-LED off.
• Now open the battery compartment cover on the backside of the transmitter. Slide the cover down (1).
• Insert three size AA Alkaline batteries (2).
• WARNING: pay attention to the correct polarity - fi re or explosion hazard!
• Close the battery compartment cover, then turn on transmitter.
• The POWER LED must lit. Attention: if the POWER LED fl ashes and a beep sound appears or does not
light at all, the model may not started – crash hazard! Change transmitter batteries immediately.
• WARNING: check the POWER LED also during operation. If the POWER LED starts to blink and
the sound appears, stop operation, switch the model off and replace the transmitter batteries – crash
hazard!
• ATTENTION: The maximum range of the remote control system is about 50 meters, do not fl y
farther away under any circumstances - crash hazard!

Transmitter

Throttle lever
(Rise/sink,
yaw left/right)

Battery charging

WARNING: charge may occur only with the supplied charger on a fi reproof surface and under constant
supervision! Do not use any power supplies with more than 1 A output current - fi re or explosion hazard!
USB Ladegerät
• Connect the USB cable to a PC or appropriate power supply. The red LED lits.
• Connect the Quadrocopter battery with the charger.
18
The remote control system · Battery charging
+
-
Direction lever
(forward/backward,
left/right)
Power-LED
Power Switch (ON/OFF)
COM P U TE R
U S B
LiPo-Akku
-
+
-
+
Throttle rate
Battery level
L.H
H
%
E ASY
XciteRC Rocket 260 3D
