Messerspindel - Grasshopper MODELL 124 Bedienungsanleitung

Item Order Description
No. No.
1 623760 Blade Spindle Assembly
(includes items 2-16)
2 604412 Spindle Housing
(includes items 6 & 9)
3 604764 Spindle Assembly
4 110081 Bearing – Double Seal
5 903645 Spacer – Bearing
6 280705 Plug - Relief
7 721167 Bearing Shield
8 259305 Set Screw
9 247141 Stud Bolt

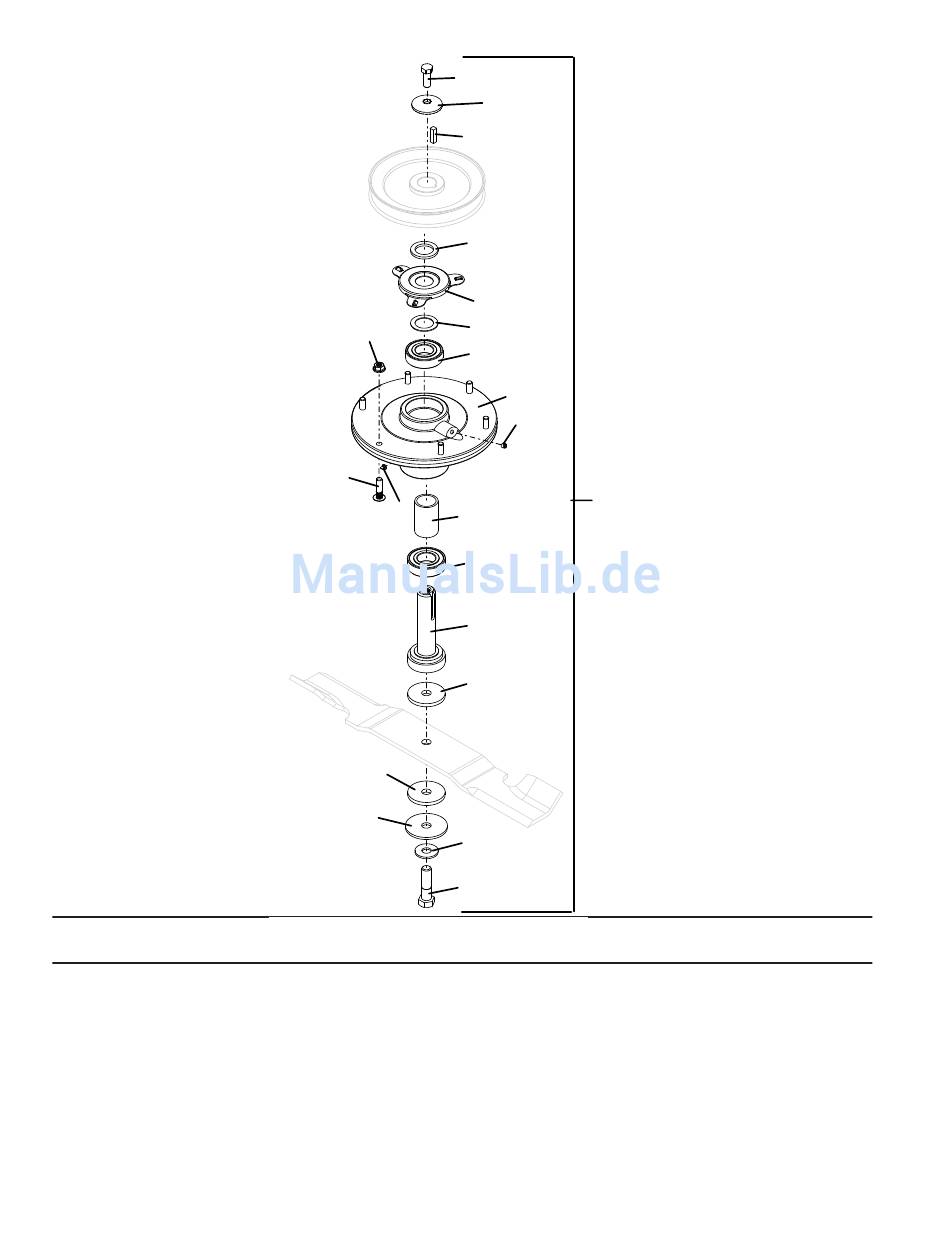

MESSERSPINDEL

10
18
19
17
9
6
5
07023C
12
13
14
15
58
11
7
16
4
2
8
1
4
3
12
Item Order Description
No. No.
10 243331 Bolt
11 257041 Cupped Washer
12 421200 Fiber Washer
13 257061 Flat Washer
14 257057 Washer - Hardened
15 243581 Bolt
16 257106 Washer 18 Ga.
17 253035 Whiz Nut
18 281580 Square Key
19 257107 Washer 10 Ga Bushing
07023C
