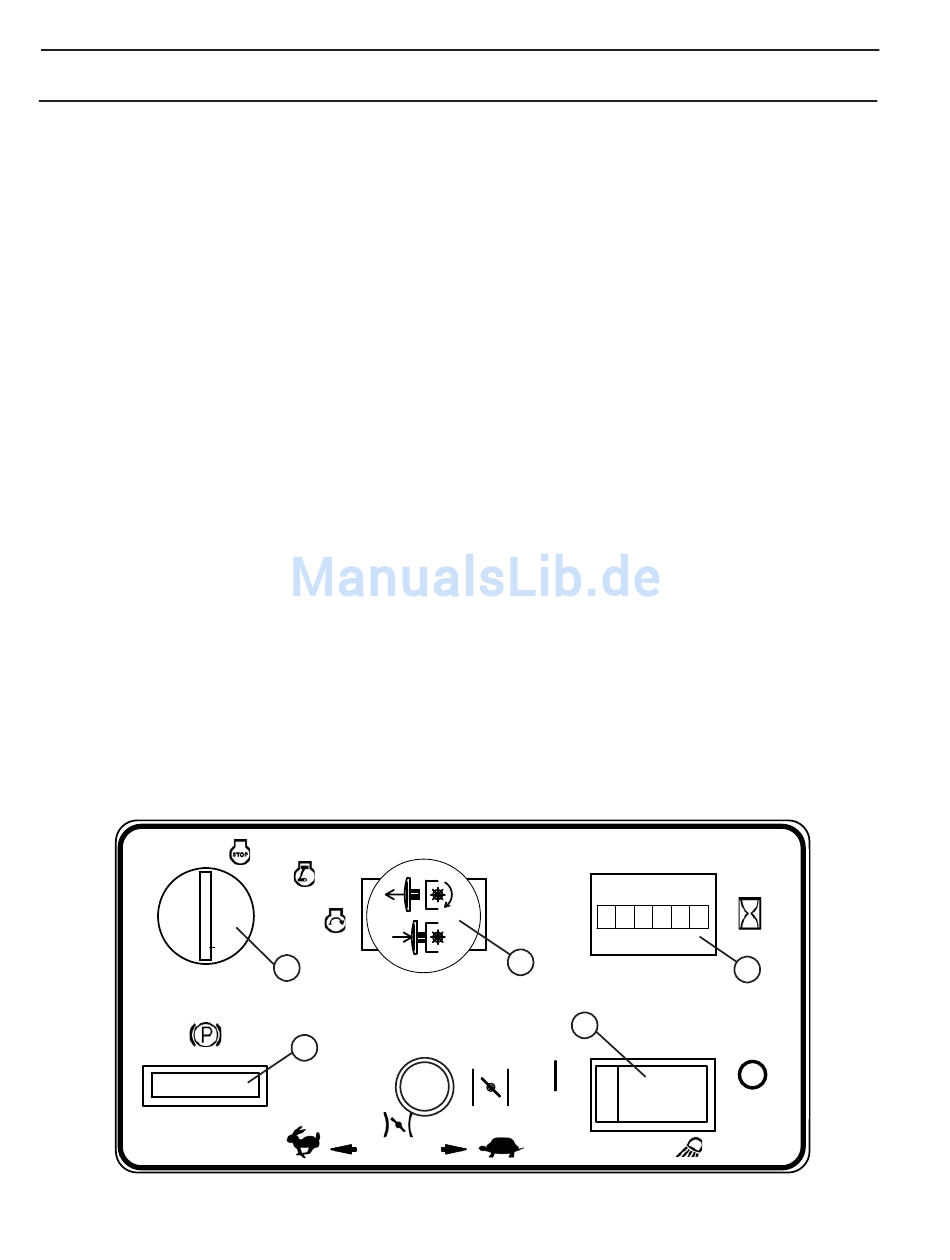

SCHALTPLAN UND ELEKTRIKBAUTEILE

Item Order Description
No. No.
605913 Wiring Assembly
161121 Decal - Console
1 183806 Ignition Switch
254498 Nylon Nut - Ignition Switch
2 182326 Indicator Light - Brake
3 184179 Light Switch (optional)
4 183925 Clutch Switch
5 183860 Safety Switch - Rt. Steering
720160 Rt. Steering Switch Mount
6 183860 Safety Switch - Lt. Steering
720161 Lt. Steering Switch Mount
7 183871 Seat Safety Switch
183870 Seat Safety Switch (Optional Seat)
8 182253 Work Lamp Assembly (optional)
(includes item 9)
9 182005 Light Bulb (optional)
10 182251 Bezel (optional)
OFF
IGNITION
BRAKE
161121
PULL OUT TO ENGAGE
RUN
1.5
START
1
PTO CLUTCH
CHOKE
2
THROTTLE
FAST
Item Order
No. No.
11 184271
12 181720
162320
13 181470
181462
181460
14 141551
15 183894
16 180120
723062
17 420610
18 423690
19 180290
20 180322
425220
425216
21 184251
.875
HOURS
4
3
ON
LIGHTS
SLOW
52
Description
Relay w/Mount
Fuse Block
Fuse I.D. Decal
Fuse 30 Amp Auto
Fuse 10 Amp Auto
Fuse 7.5 Amp Auto
Hour Meter
Brake Switch
Battery 12 Volt
Mount - Battery
Battery Hold Down Strap
Spacer - PC Board Support
Battery Cable 30" Black
Battery Cable 24" Red
Battery Terminal Boot
Alternator Terminal Boot
Solenoid Seitch 4 post
14
OFF
05113A / 05115
