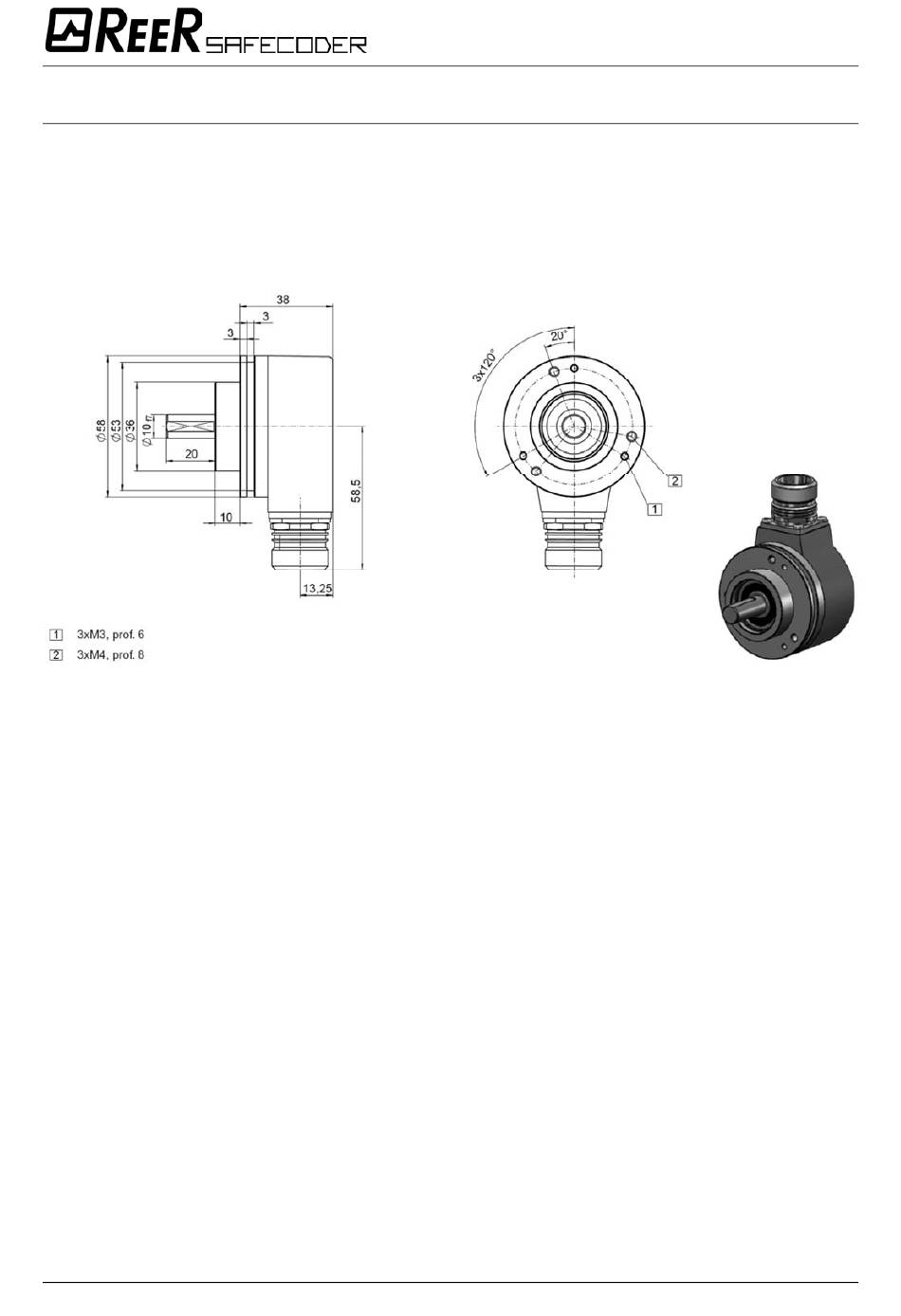

7.2 Encoder, árbol saliente con cara plana
The shaft encoder is fastened with at least three M3 screws through the threaded holes
provided in the flange; the screws must be tightened with a torque of 1Nm and secured
against loosening. The shaft must be connected with the drive by means of a tolerance
compensation element and secured against loosening. When fastening the shaft, the user
or the installation company that mounts the encoder must make sure that the fastening
method complies with the safety requirements in force.
