SAFETY SINE/COSINE INCREMENTAL ENCODER

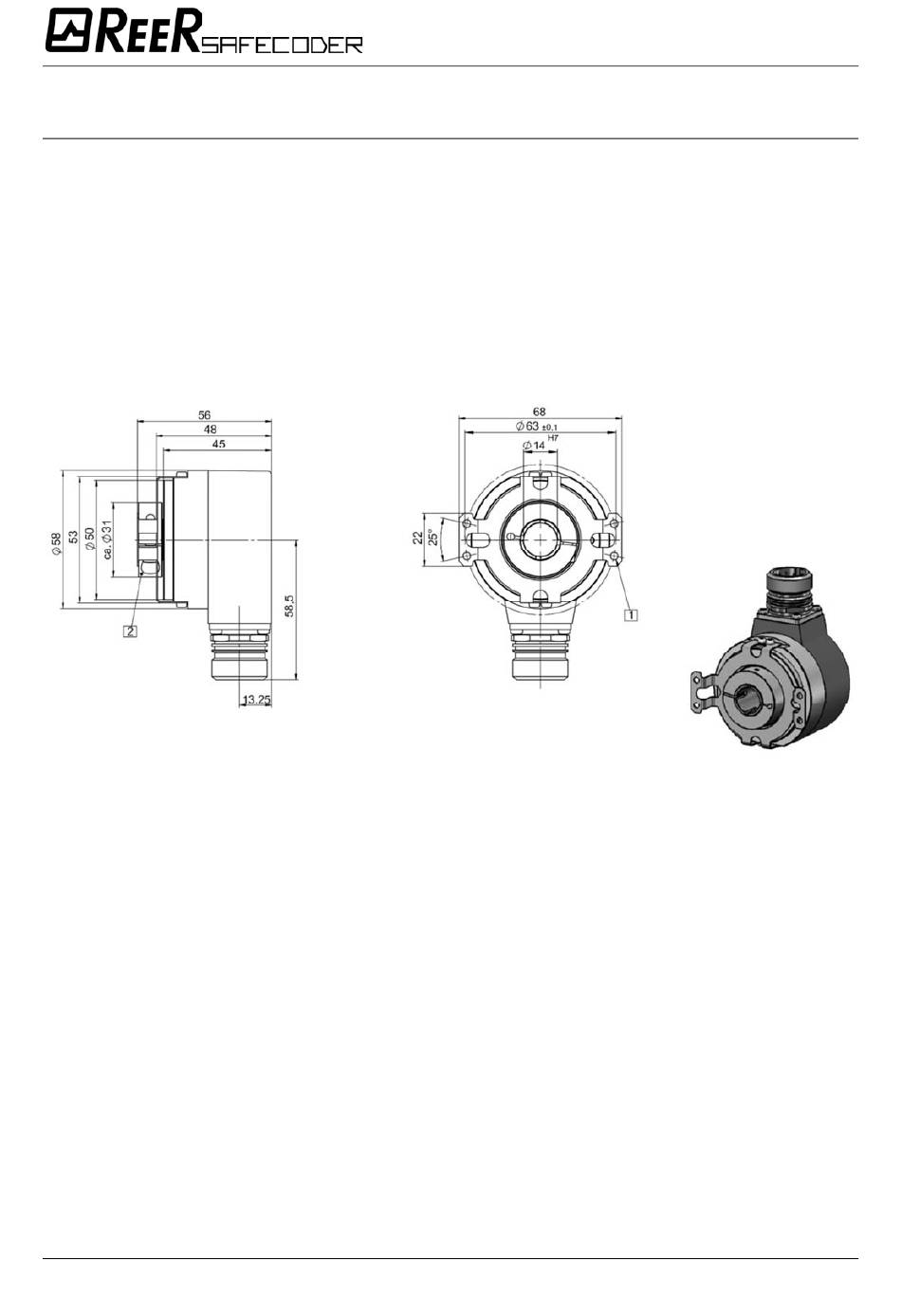

7.4 Encoder, hollow shaft with clamping ring and SIL stator coupling

The fixing screw of the clamping ring must be tightened with a recommended torque of
2.5 Nm. For fixing the stator coupling four M3 screws, must be used, tightened with a
recommended torque of 1Nm and secured against loosening. The operator, operating
company or installation company, which is installing the encoder, must ensure that the
fixing method complies with the safety requirements in force.
Max. permissible tolerances of the shaft connection:
- Axial offset: 0.50 mm (+/-0.25 mm).
- Radial offset: +/- 0.20 mm.
- Angular misalignment symmetry: 1°.
