13 .2 Control console ControlPro

45 46

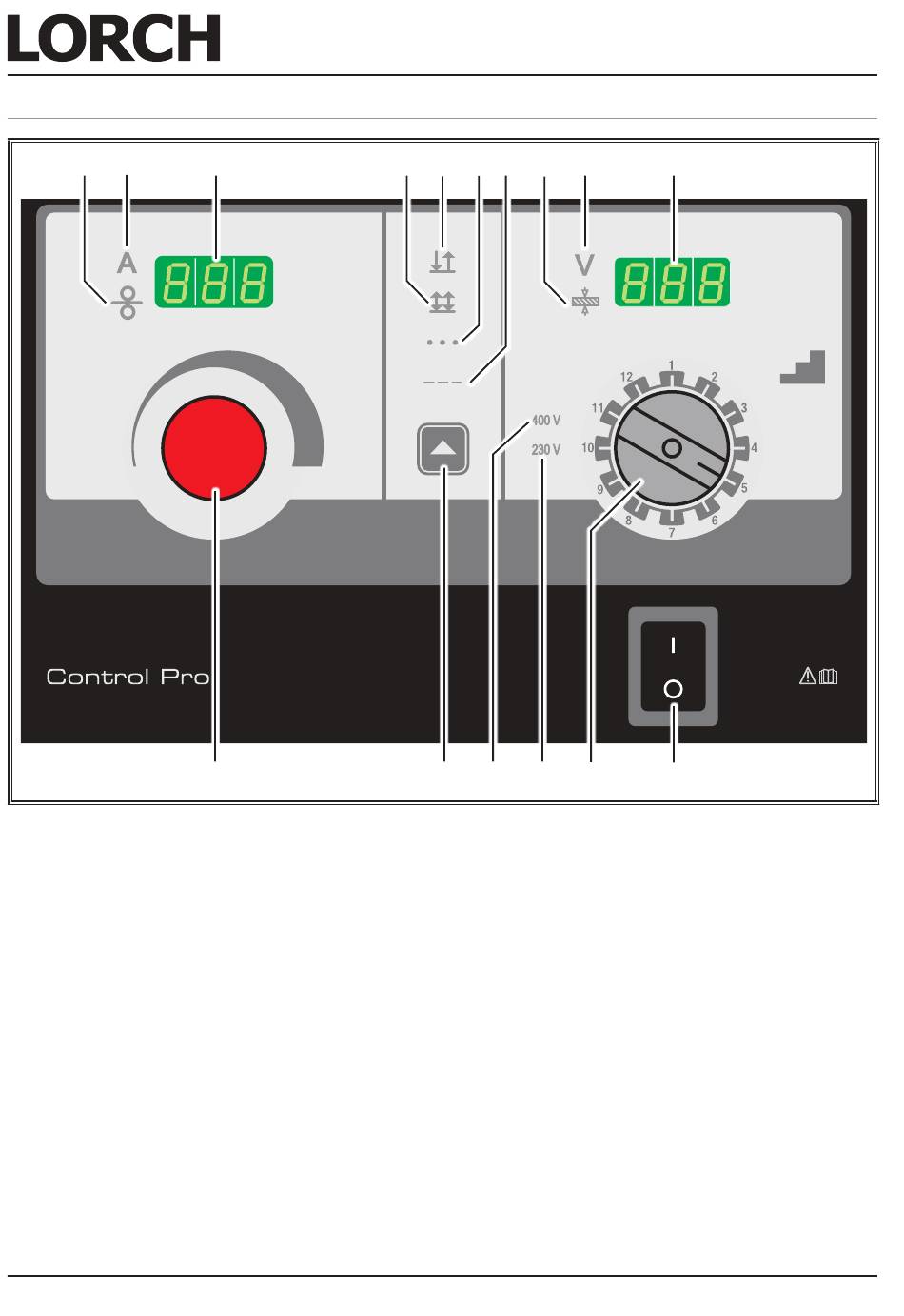

Abb. 18: Control console ControlPro
Symbol wire feed
45
lights up in the 7-segment display 47 if
the wire feed is displayed in m/min.
Symbol welding current
46
lights up if the 7-segment display 47
displays the welding current in Am-
pere.
7-Segment –display
47
welding current / wire feed
depending on set mode, either wire
feed, welding current or secondary
parameter value will be displayed.
Symbol 4-stroke
49
lights up if 4-stroke mode is selected.
- 46 -
47
61
49 50 51 52 53 54
60 59 58
Symbol 2-stroke
50
lights up if 2-stroke mode is selected
Symbol spot-welding
51
lights up if spot welding mode is se-
lected.
Symbol interval
52
lights up if interval mode is selected.
Symbol material thickness
53
Display 55 lights up if the material
thickness is displayed in mm.
54 Symbol welding voltage
54
lights up if the 7-segment-display 55
displays the welding voltage in V.
55
57 56
