Start-up

13 .1 Control console BasicPlus

53 45

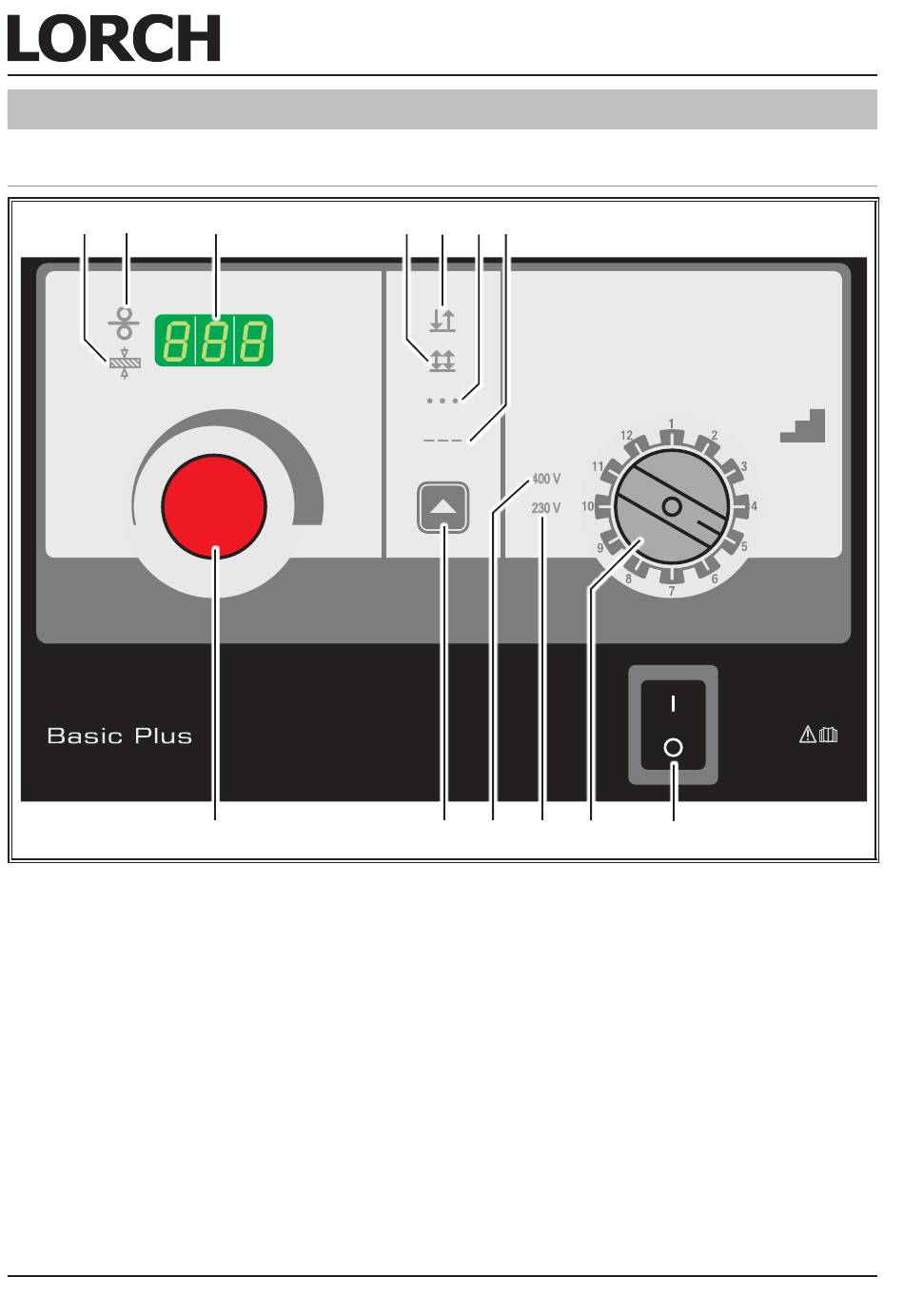

Abb. 17: Control console BasicPlus
Symbol wire feed
45
lights up in the 7-segment display 47 if
the wire feed is displayed in m/min or
as correction value in %.
7-Segment display wire feed / material
47
thickness
depending on the mode, wire feed,
material thickness, welding step or (al-
ternating) secondary parameter code
and value are displayed.
Symbol 4-stroke
49
lights up if 4-stroke mode is set.
- 44 -
47
61
49 50 51 52
60 59 58
Symbol 2-stroke
50
lights up if 2-stroke mode is set.
Symbol Spot welding
51
lights up if spot welding mode is set.
Symbol Interval
52
lights up if interval mode is set.
Symbol material thickness
53
lights up if the 7-segment display 47
displays the material thickness in mm.
Main switch
56
for turning the welding machine ON
and OFF.
57 56
Start-up
10.13
