Electric connection

The Orbit sauna heaters generally feature a
two-circuit construction with two connection
terminal blocks. Each heating circuit has a sep-
arate connection terminal block.
The terminal block compartment can be found
on the heater side behind a removable curved
cover panel

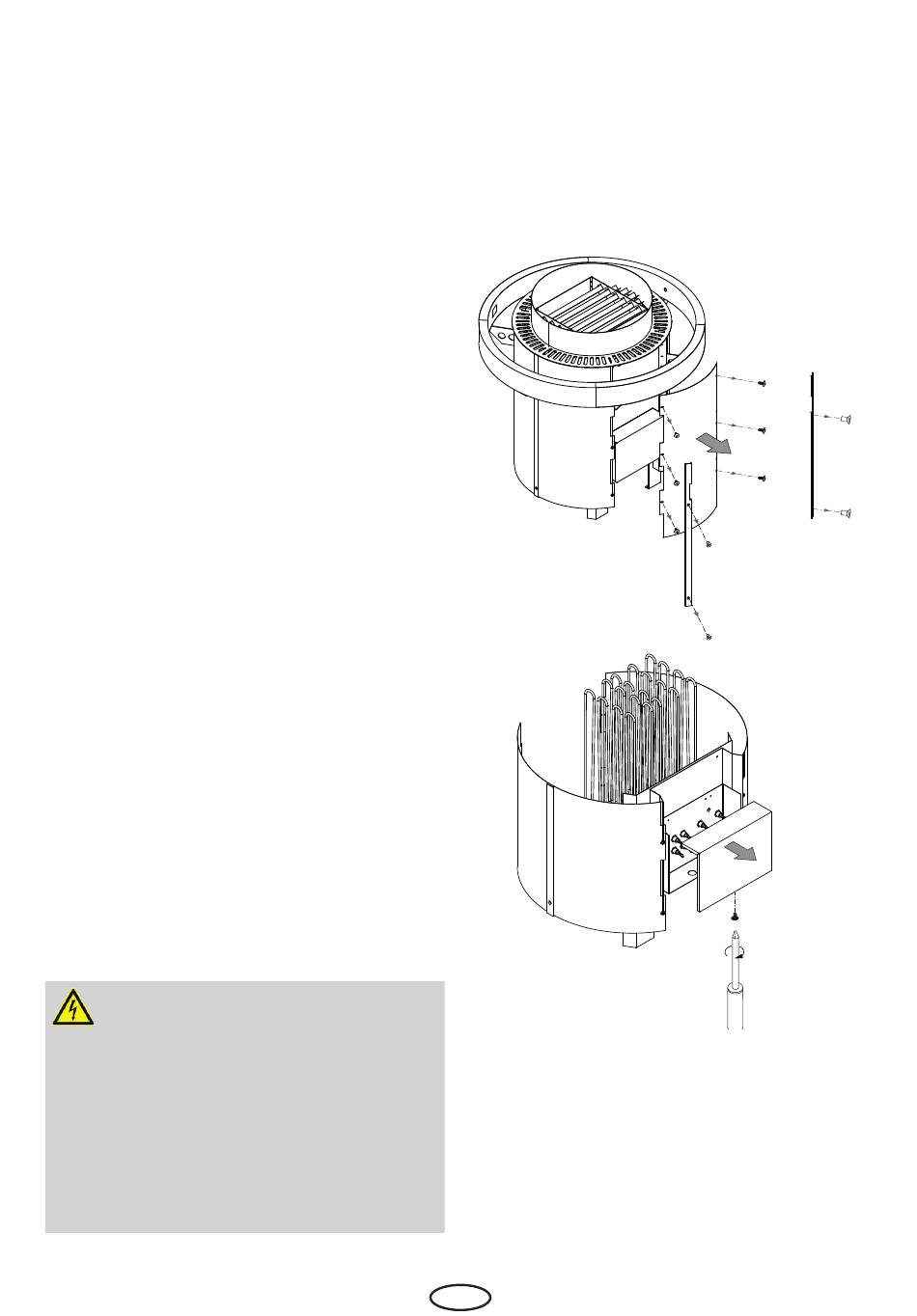

Step 1
First take off the vertical decoration strips on
both sides of the cover panel (Fig. 3).
Step 2
Undo the fixation screws of the cover panel and
take it off.
In the bottom area you will find two terminal
boxes for connections.
Undo the fixation screws of the terminal box
covers and take off the covers from both boxes.
The terminal block with 3 heating elements
(3 kW each) shall be connected to the sauna
control unit.
The terminal block with more than 3 heating
elements shall be connected to the power ex-
tension LSG box.
Make the connections as per connection and
wiring diagram.
CAUTION!
Make sure to observe the correct connection
of the terminal block to the sauna control
unit and to the LSG box.
Inncorrect cable connection will damage the
sauna control unit!
30
EN
2.
1.
Fig. 3
3.
Fig. 4
