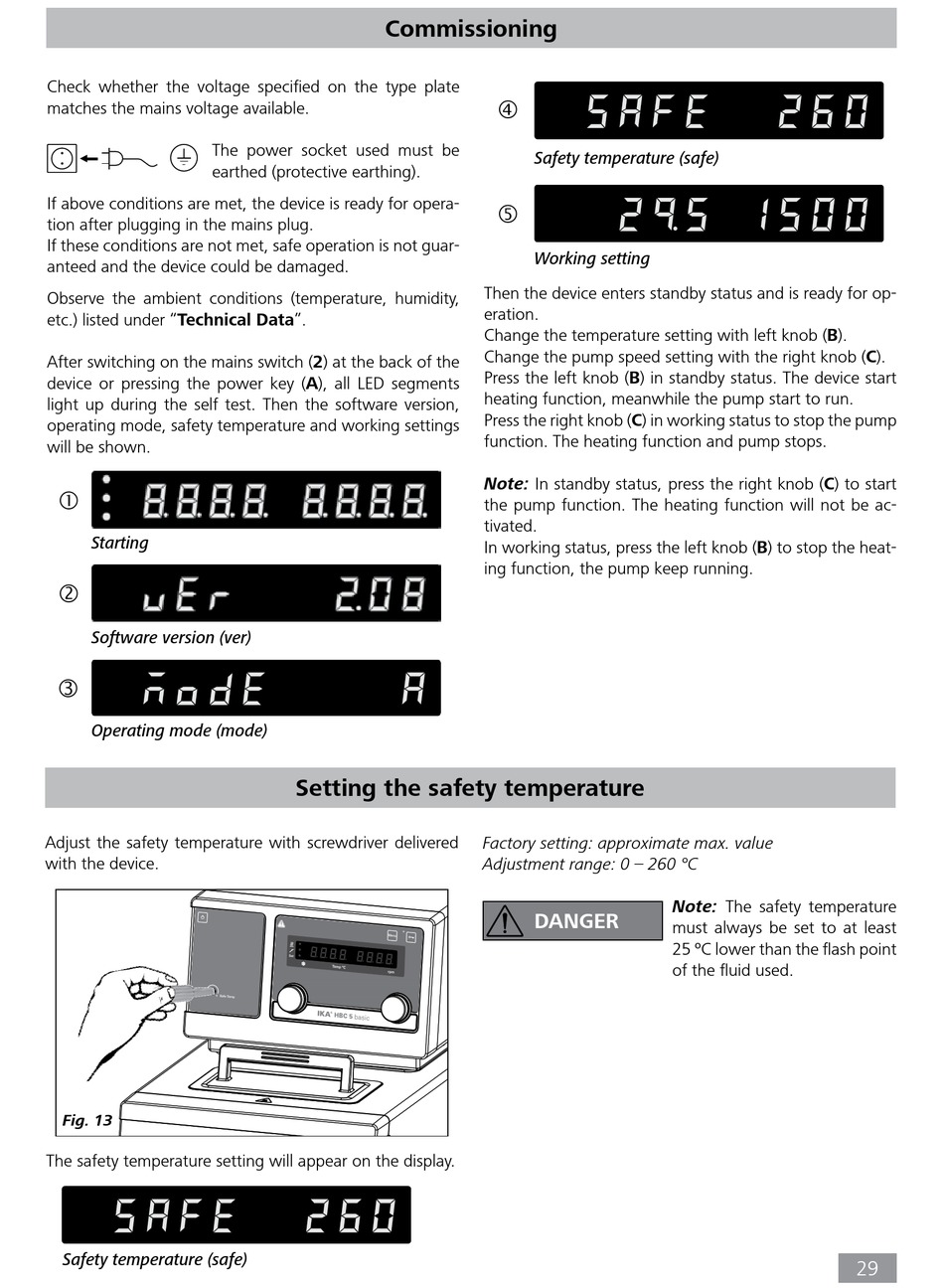

Commissioning; Setting The Safety Temperature - IKA HBC 5 basic Betriebsanleitung

Check whether the voltage specified on the type plate
matches the mains voltage available.
The power socket used must be
earthed (protective earthing).
If above conditions are met, the device is ready for opera-
tion after plugging in the mains plug.
If these conditions are not met, safe operation is not guar-
anteed and the device could be damaged.
Observe the ambient conditions (temperature, humidity,
etc.) listed under "Technical Data".
After switching on the mains switch (2) at the back of the
device or pressing the power key (A), all LED segments
light up during the self test. Then the software version,
operating mode, safety temperature and working settings
will be shown.

Starting

Software version (ver)

Operating mode (mode)
Adjust the safety temperature with screwdriver delivered
with the device.
Fig. 13
The safety temperature setting will appear on the display.
Safety temperature (safe)

Commissioning

Setting the safety temperature


Safety temperature (safe)

Working setting
Then the device enters standby status and is ready for op-
eration.
Change the temperature setting with left knob (B).
Change the pump speed setting with the right knob (C).
Press the left knob (B) in standby status. The device start
heating function, meanwhile the pump start to run.
Press the right knob (C) in working status to stop the pump
function. The heating function and pump stops.
Note: In standby status, press the right knob (C) to start
the pump function. The heating function will not be ac-
tivated.
In working status, press the left knob (B) to stop the heat-
ing function, the pump keep running.
Factory setting: approximate max. value
Adjustment range: 0 – 260 °C
DANGER
Note: The safety temperature
must always be set to at least
25 ºC lower than the flash point
of the fluid used.
