• Filling and draining

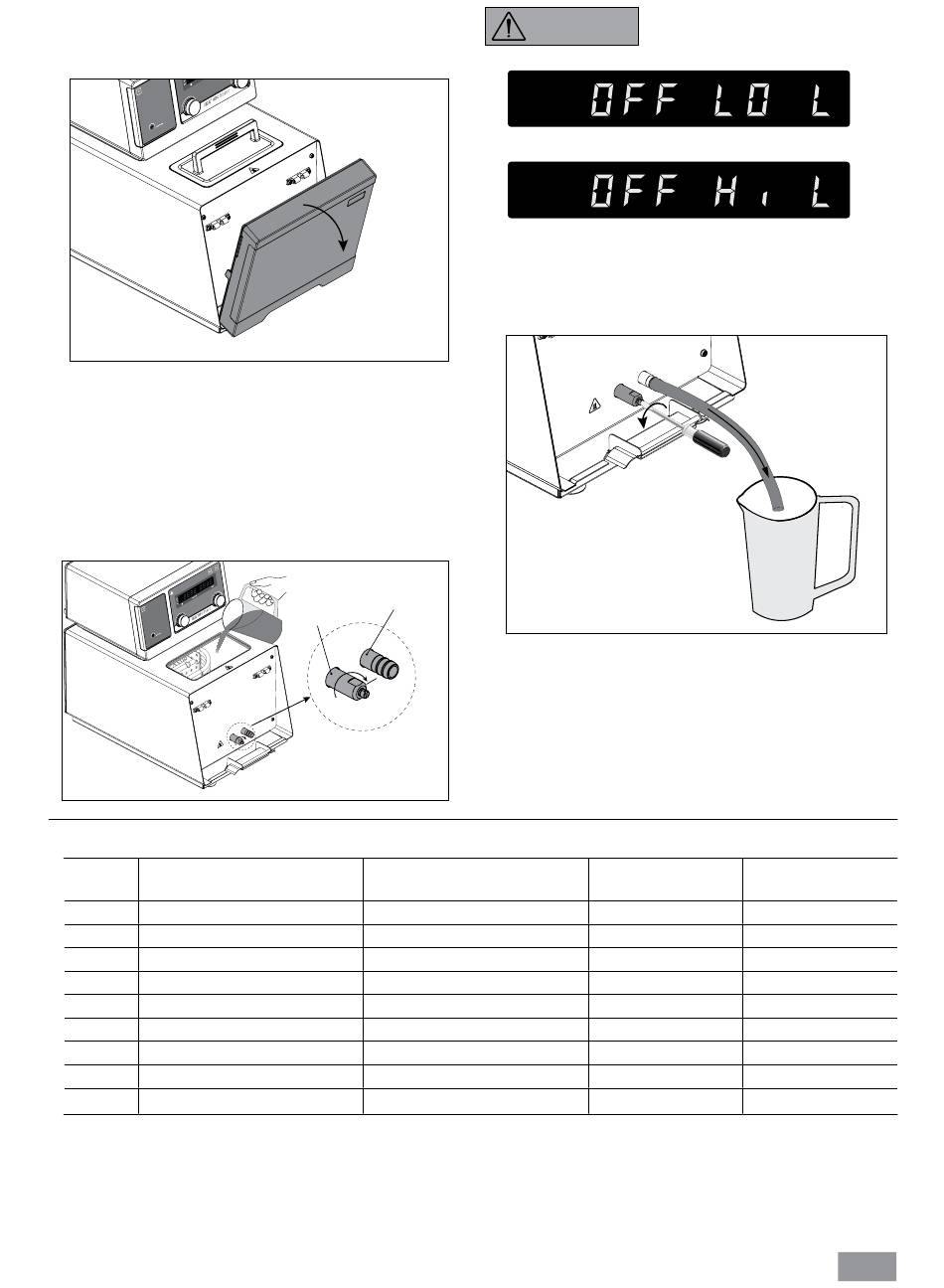

- Before filling the fluid into the bath, open the front
cover as indicated in following figure.
Fig. 9
- Check and make sure that the drain valve is closed (the
stop position in clockwise direction, see Fig. 10).
Note: Please note information in chapter "Commis-
sioning".
- Connect the mains plug and turn on the device with
mains switch (2).
- The low level warning message appear on the display.
- Open the lid (16) and fill fluid to the bath.
Fig. 10

• Fluids

No. IKA
® Designation
0 EG19_N10.100 (H
1 EG34_N20.100 (H
2 EG40_N25.100 (H
3 EG45_N30.100 (H
4 SI_P20.275 (Silcone Oil)
5 SI_N30.145 (Silicone Oil)
6 SY_N10.100 (Synthetic Oil)
7 Water*
8 Customized
Note: Tap water may be unsuitable for operation because the calcium carbonate content may cause calcification.
*
High purity water (from icon exchangers) and distilled or bi-distilled water are unsuitable for operation due to corrosive
properties of these media. High purity water and distillates are suitable as a medium after adding 0,1 g soda (Na
sodium carbonate) per liter of water.
Drain port
Drain valve
Stop position
Operating temperature range
0 + Glycole)
2
0 + Glycole)
2
0 + Glycole)
2
0 + Glycole)
2
WARNING
- To drain the fluid from the bath, connect a hose to the
drain port and turn the drain valve in counter clockwise
direction with a straight screwdriver.
Fig. 11
Safety temperature
(°C)
-10 ... 100
-20 ... 100
-25 ... 100
-30 ... 100
20 ... 275
-30 ... 145
-10 ... 100
5 ... 95
Note: Pay attention to the fluid
level information on the display:
Low Level
High Level
Flash point
(°C) (°C)
100 125
100 125
100 125
100 125
275 300
145 170
100 125
95 —
CO ,
2 3
