Commissioning - IKA IC control Betriebsanleitung

Check whether the voltage given on the type plate cor-
responds to the available mains voltage.
The socket used must be earthed
(fitted with earth contact).
If these conditions have been met, the machine is ready
for operation when the mains plug is plugged in.
If these conditions are not met, safe operation is not guar-
anteed and the machine could be damaged.
Observe the ambient conditions (temperature, humidity,
etc.) listed under "Technical Data".
The battery in the Wireless Controller (WiCo) must be
charged at the station before the first use of the device.

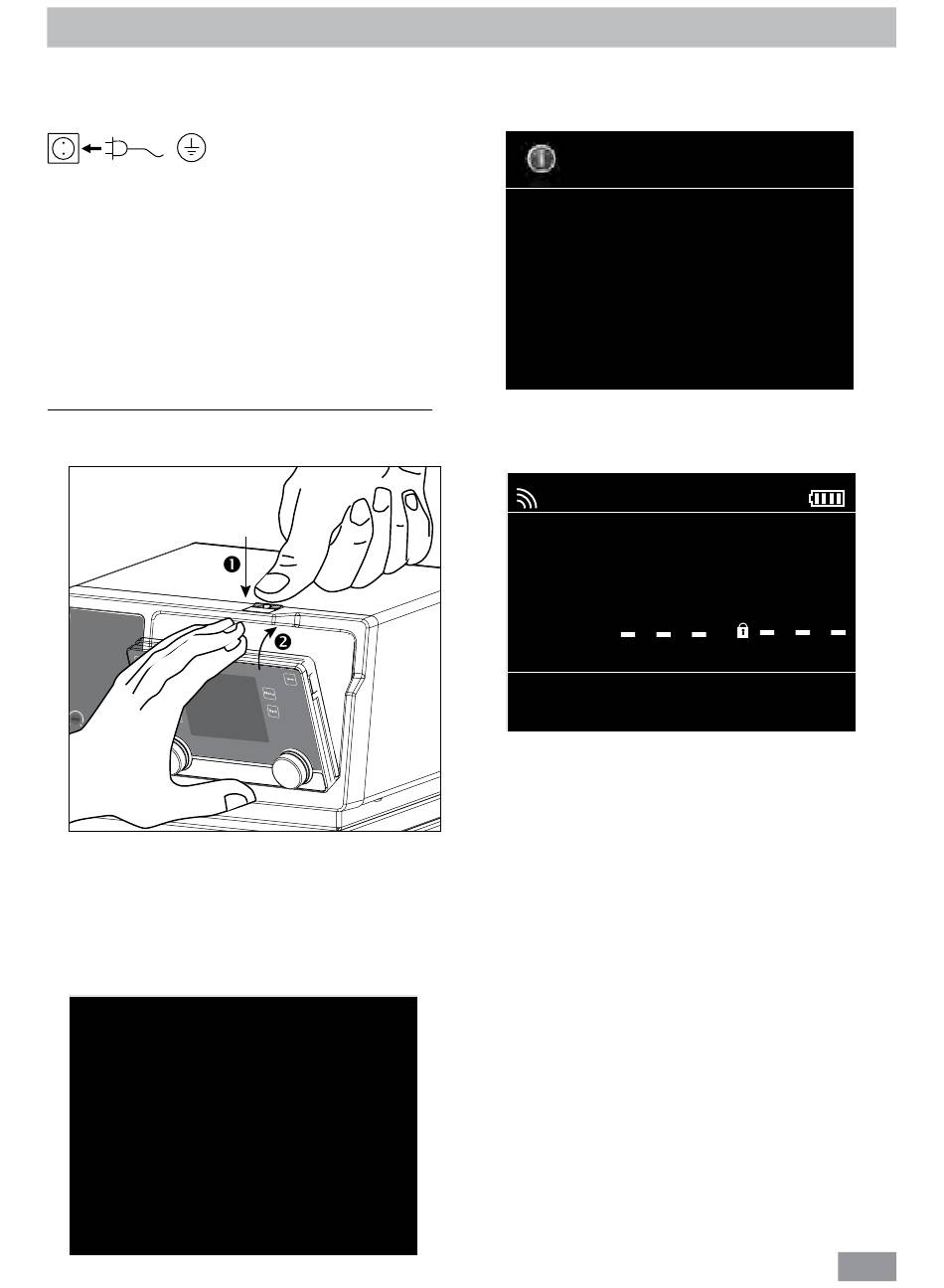

Mounting the Wireless Controller to the station
Put the WiCo into the holder at the station while pressing
the release button.
Fig. 17
If the WiCo should be permanently attached to the station,
we strictly recommend to fasten the unlocking button with
the integrated screw (turn counter clock wise).
After switch on the mains switch (2) at the rear side of
the station, the screen of the WiCo displays the device
designation and the software version after a beep.
IKA
®
Circulator
IC/HBC Control
Version 1.1.028
Fig. 18

Commissioning

After several seconds, screen display the information of
WiCo.
Internal Max:
Internal Min:
External Max:
External Min:
Fluid
Fig. 19
Then the working screen in standby status appears and
the device is ready for operation.
int
Fig. 20
Change the temperature setting with left knob (K).
Change the pump speed setting with the right knob (J).
In standby status, press the left knob (K). The device starts
heating function and the pump begins to run.
In work status, press the right knob (J) to stop operation
of the pump. The heating function and the pump stops.
Note: In standby status, press the right knob (J) to start
the pump function, the heating function will not be acti-
vated.
In working status, press the left knob (K) to stop the heat-
ing function, the pump keep running.
When the WiCo is switched on without being connected
to the station, the green LED bar (D) and the green Blue-
tooth LED (F) on circulator lights up.
®
The controls of the WiCo allow locked by pressing the key
button (O), so no accidental changes during operation are
possible (key symbol appears in the display) .
By pressing the key button (O) again, the controls are re-
leased (key symbol disappears from the display).
Information
H O (Water)
2
A
0.00
int °C
ext °C Safe Temp °C
0.00
set °C
95 °C
20 °C
95 °C
20 °C
1000
Pump rpm
