• Cooling coil

When the set temperature is close to the ambient tem-
perature, the cooling coil should be used for counter-
cooling due to the self-heating.
Connect the water supply and return line hoses to the
cooling coil connectors (see Fig. 4).
A
D

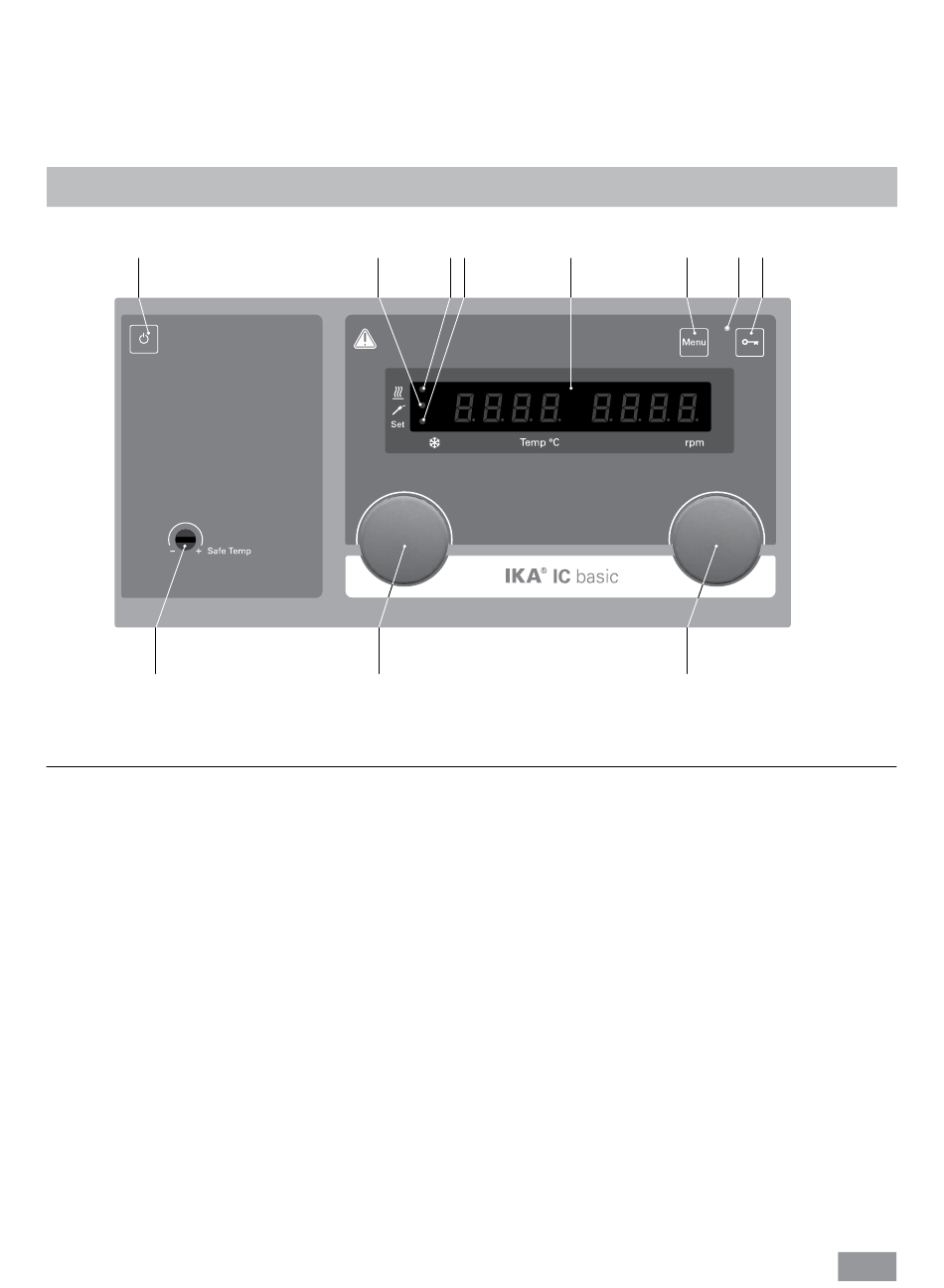

Fig. 12
Item Designation
A ON/OFF button:
B Rotating/pressing knob:
C Rotating/pressing knob:
D Adjustable safety circuit:
E Menu button:
F Key button:
G LED display:
I LED, heater:
J LED, temperature sensor:
K LED, set:
M LED, key button
For bath temperatures > 95 °C do not use the cooling coil
with water.
For bath temperatures > 60 °C make sure that the flow
rate through the cooling coil is high enough, to avoid
excessive calcification.

Operator panel and display

J I K
B
Function
Switch on/off the circulator.
Set the temperature value.
Start/stop the heating function.
Navigation, selecting the settings in the menu.
Set the pump speed value.
Start/stop the pump function.
Set and confirm the menu options.
Adjust the safety temperature limit with delivered screwdriver.
Press it once: menu option is display.
Press it a second time: back to the working screen.
Lock/unlock keys and knobs.
Display the settings and actual values.
Indicate the heating function is activated.
Indicates that an external temperature sensor is connected.
The LED lights up at the same time as the set value is displayed.
Indicates that the function of keys and knobs is deactivated.
G E M F
C
