Safety

Step 1:
Connecting the
Modbus wires
It is recommended that shielded CAT5 or CAT5e cables compliant with ISO 11801 and
EN50173 are used for Modbus RTU cabling.
IMPORTANT! Do not use ISO/IEC-11801 U/UTP cables!
Permitted cables:
S/STP, F/STP, S/FTP, F/FTP, SF/FTP, S/UTP, F/UTP, U/FTP, U/STP
The wires in the Ethernet cables are twisted in pairs. To prevent interference in the cables
only the following pairs of wires should be twisted together:
-
-
Information on connecting the cables:
-
8
WARNING! An electric shock can be fatal. Danger from grid voltage and DC volt-
age from solar modules.
- The connection area should only be opened by a licensed electrician.
- The separate power stage set area should only be disconnected from the
connection area after first being disconnected from the grid power.
- The separate power stage set area should only be opened by Fronius-trained
service personnel.
Before making any connections, make sure that the AC and DC sides are discon-
nected from the inverter, e.g.:
- Switch off the AC automatic circuit breaker for the inverter
- Cover solar modules
Please observe the 5 safety rules.
WARNING! An electric shock can be fatal. Danger from residual voltage from ca-
pacitors.
You must wait until the capacitors have discharged.
NOTE! Follow general ESD precautions when handling plug-in cards.

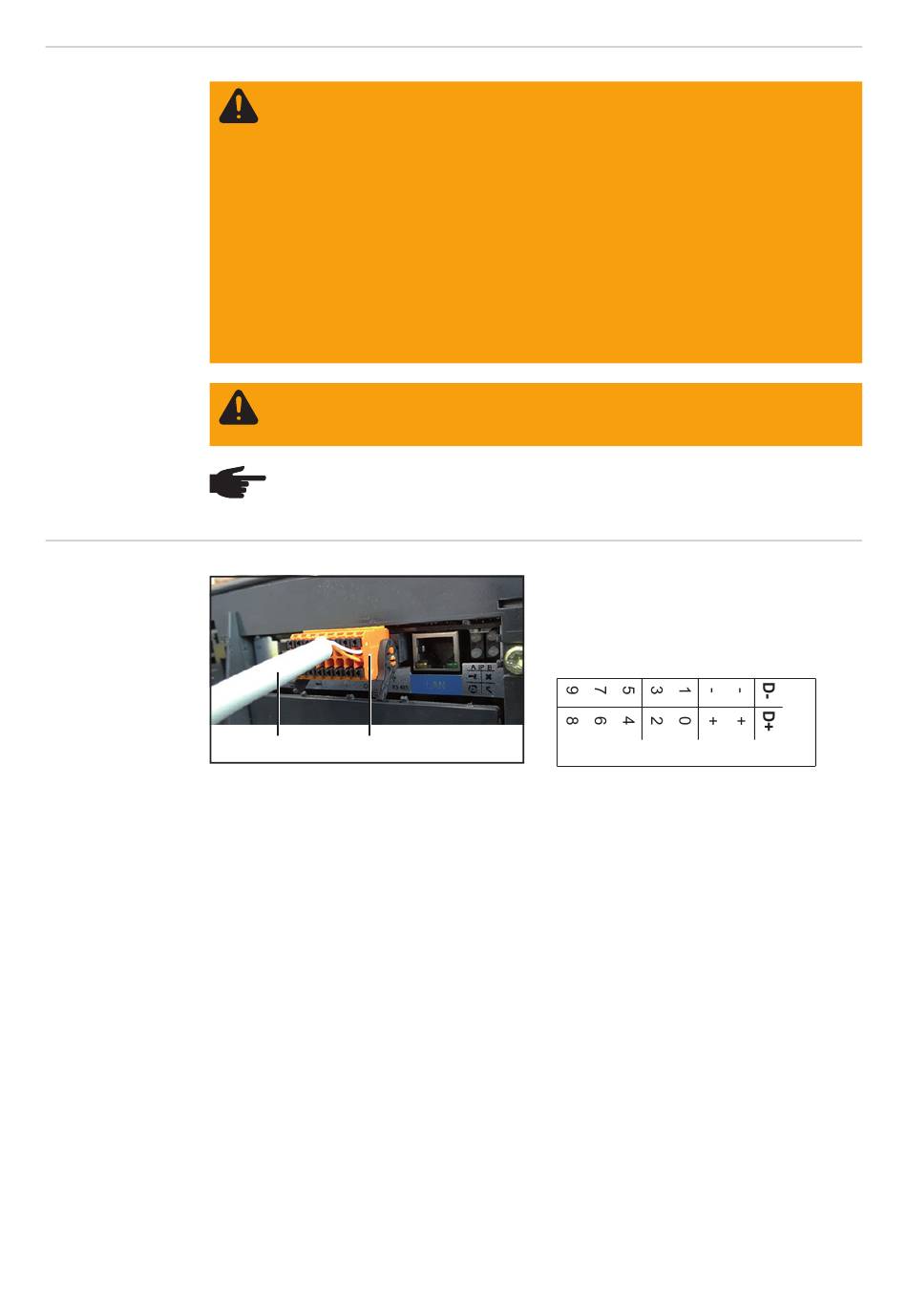

(1) (2)
data lines: D+ and D-
when using the power supply: + and –
Make sure that the wires are assigned correctly
Connect the Modbus RTU (RS 485) cable
(1) to the modbus plug (2) of the Fronius
Datamanger 2.0.
Connect the orange wire to D+,
the white wire to D-
------I------ --IO-- RS485
