Installing the push-in
52 •
ATTENTION!
Incorrect measurements due to installation
scale
errors
If the push-in scale is installed incorrectly the
head slide cannot determine any usable
readings.
− Align the push-in scale so that the printing
− Align the push-in scale so that the area which
− Ensure that the push-in scale latches into

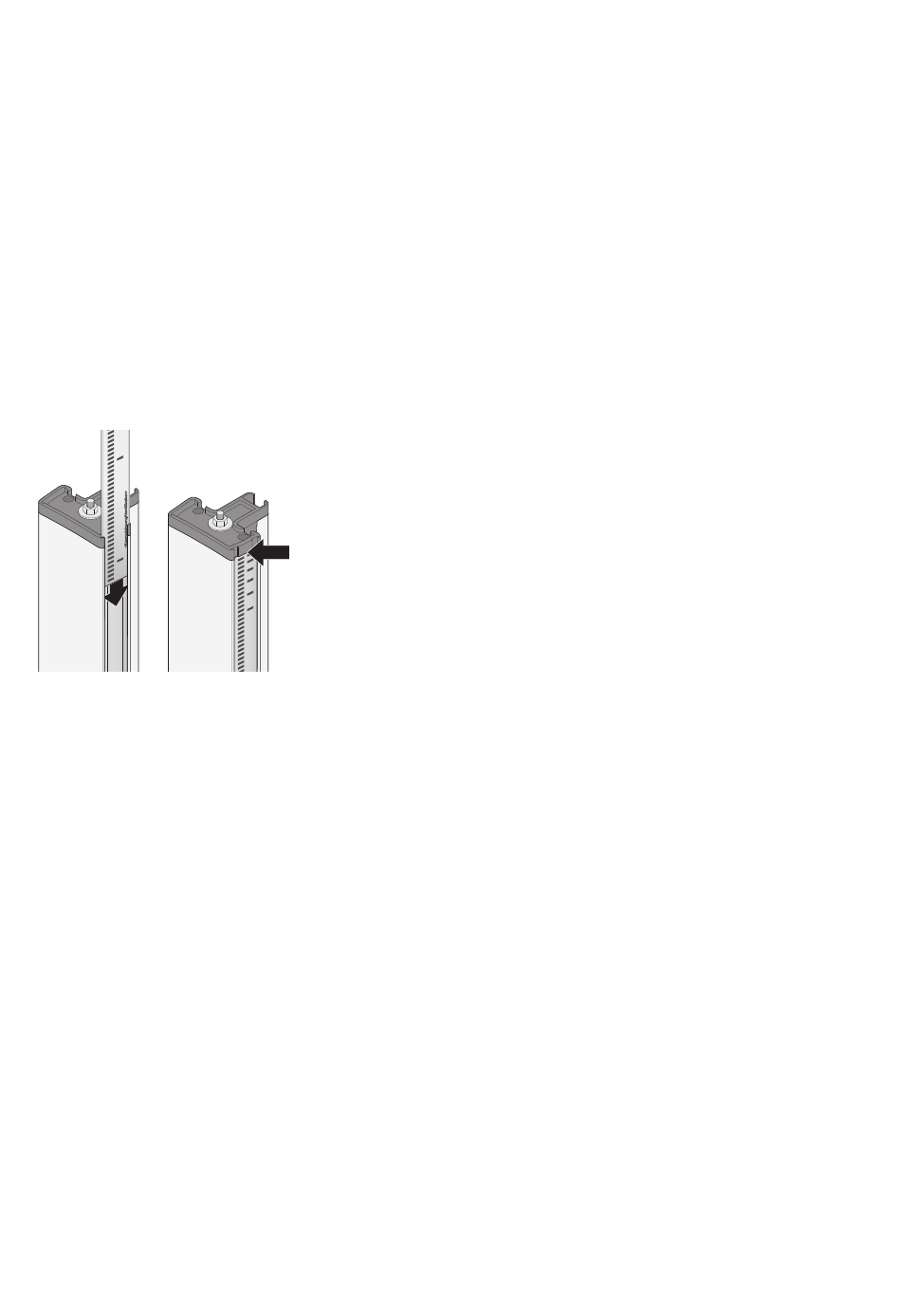

♦ Push the push-on scale into the groove in the side
of the column elements until the scale latches into
position under the end cap.
remains visible when the scale is pushed into
the groove.
shows the product number forms the bottom
end.
position under the end cap.
