5.6

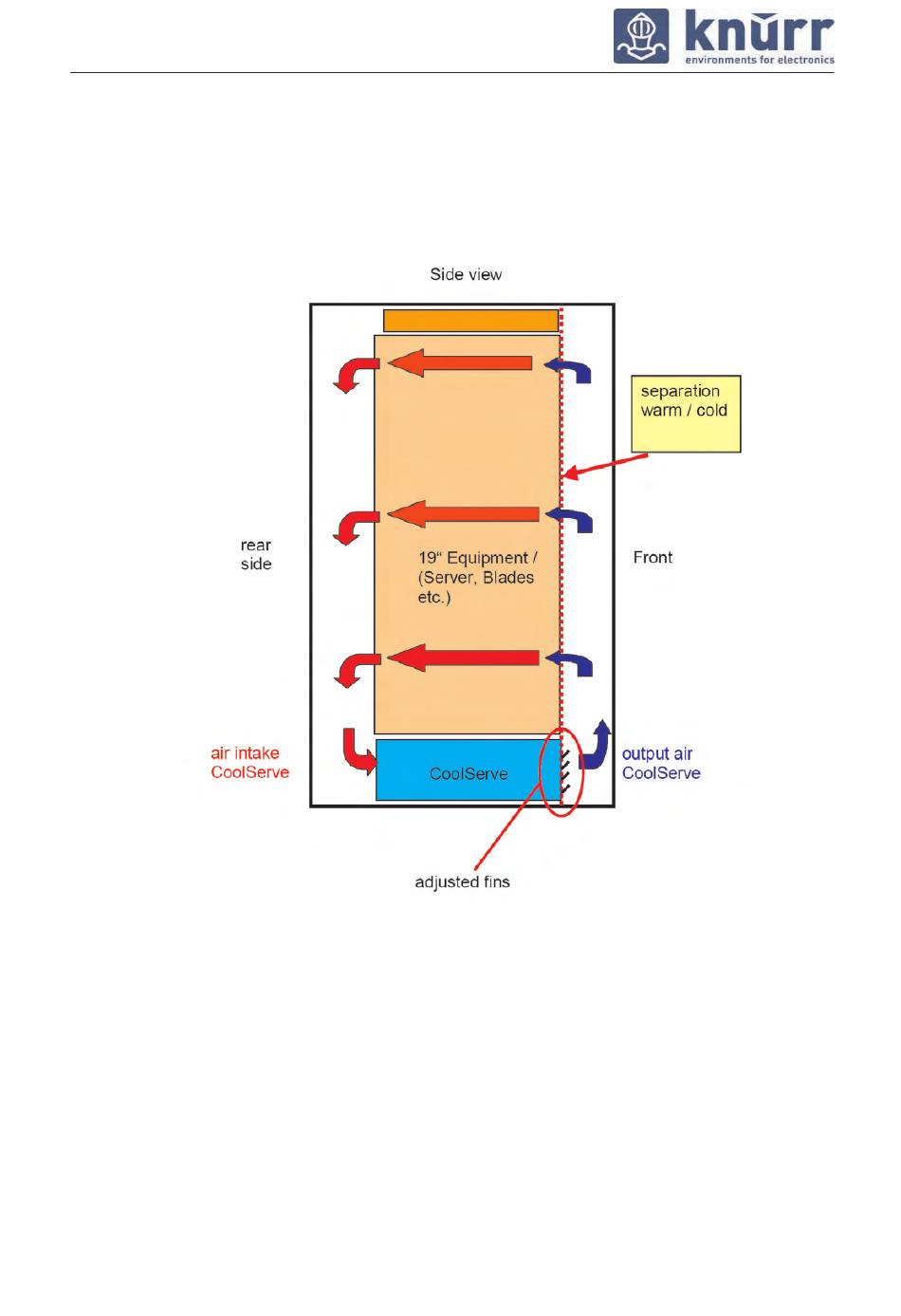

Fins Adjustment

The air spoilers (fins) are to adjusted that chilled air goes directly to the server front,
e.g. with an angle of approx. 45° to the serverlevel.
5.7

Sealing of cabinet

To ensure the optimal cooling function the cabinet must be sealed:
- Air flows on the warm and cold sides of the cabinet must be separated from each other
- Pipe entries should be cut into the foam and properly closed with a extra foam if required.
- Cable entries should be closed with the pivoting plate and foamed material
