Do not install the temperature sensor near any sources of interference,
e.g. electric stoves, refrigerators, draughts or sunshine. These influence
the temperature measurement of the sensor.
„ Plug the enclosed pre-assembled cable into the jack
„ Connect the external temperature sensor to the conductor sleeves of an
input of this cable:
- Input 1: black GND/white
- Input 2: black GND/yellow
- Input 3: black GND/purple
- Input 4: black GND/blue
All black connecting wires GND are connected together internally.
„ Attach the design frame (11) at the back and press over the fixtures (15)
until it snaps into place.
„ Position the device over the supporting ring in the correct position so that
the mounting devices on the device (13) and the pins with the snap lock on
the supporting ring (12) are lying on top of each other (Figure 10).
„ Press the device slowly onto the supporting ring until it snaps into place
in the snap lock and also attach the magnetic holding points (14) to the
supporting ring.
(12)
(11)

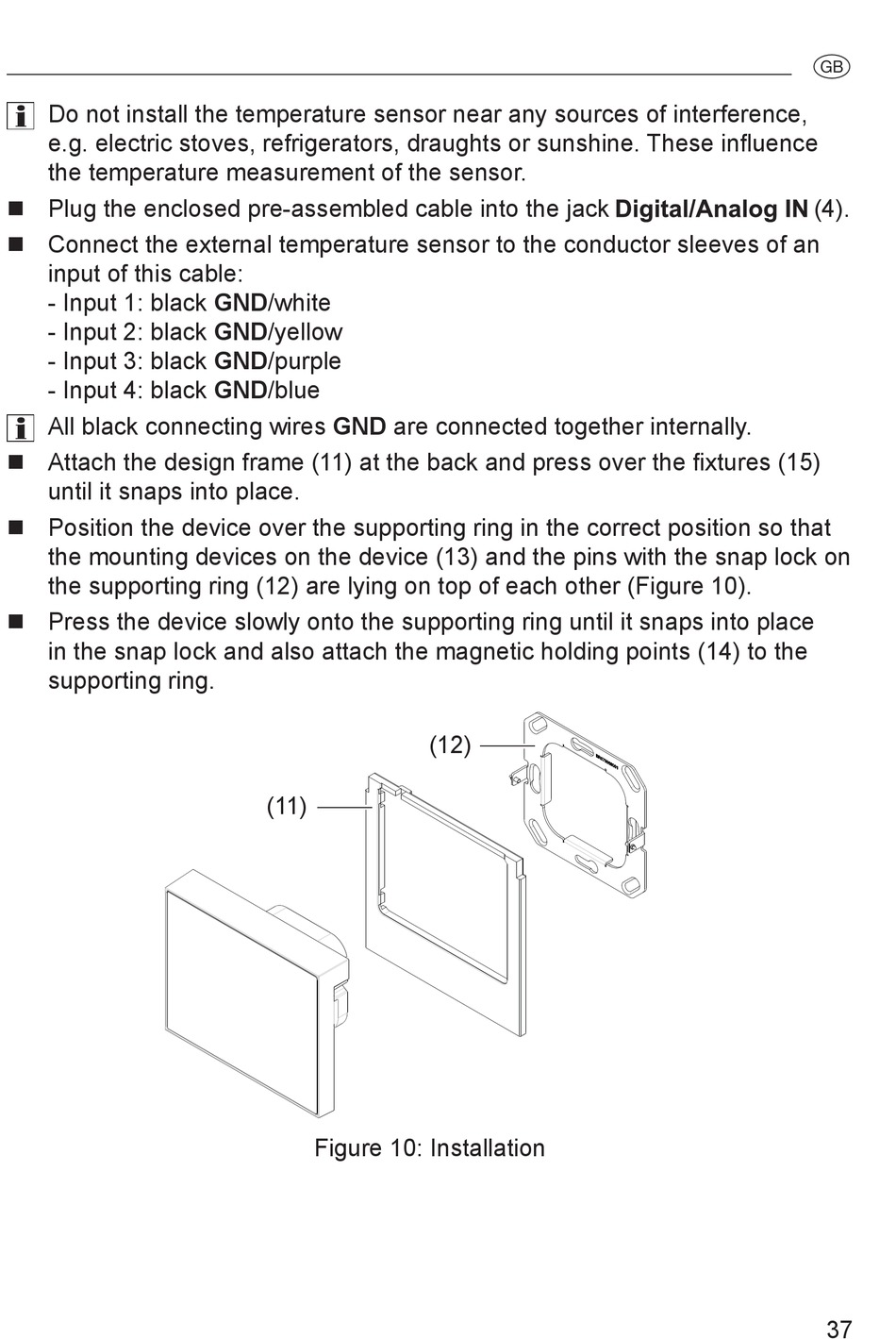

Figure 10: Installation
z
(4).
