Function - Berker Knx Touch Control Bedienungs- Und Montageanleitung

z
(2) USB connection – only for programming in the factory
(3) Slot for micro SD card
(4) Jack for binary contacts or external temperature sensor -
(5) Programming button and programming LED
(6) KNX bus connection terminal
(7) Connecting terminal for auxiliary voltage - DC 12...40 V SELV
Scope of delivery
- Display
- Supporting ring for installation on a wall box
- pre-assembled cable on a plug for
sleeves for the connection of external devices
- 4 Sticker for documentation of the physical address data

3 Function

System information
This device is a product of KNX system and corresponds to the KNX guide-
lines. Detailed specialised knowledge obtained from KNX training courses is
required for understanding. The planning, installation and commissioning are
carried out with the help of KNX-certified software.
Systemlink start-up
The function of the device is software-dependent. The software is to be taken
from the product database. You can find the latest version of the product
database, technical descriptions as well as conversion and additional support
programmes on our website.
24
(2)
(5)
(3)
(4)

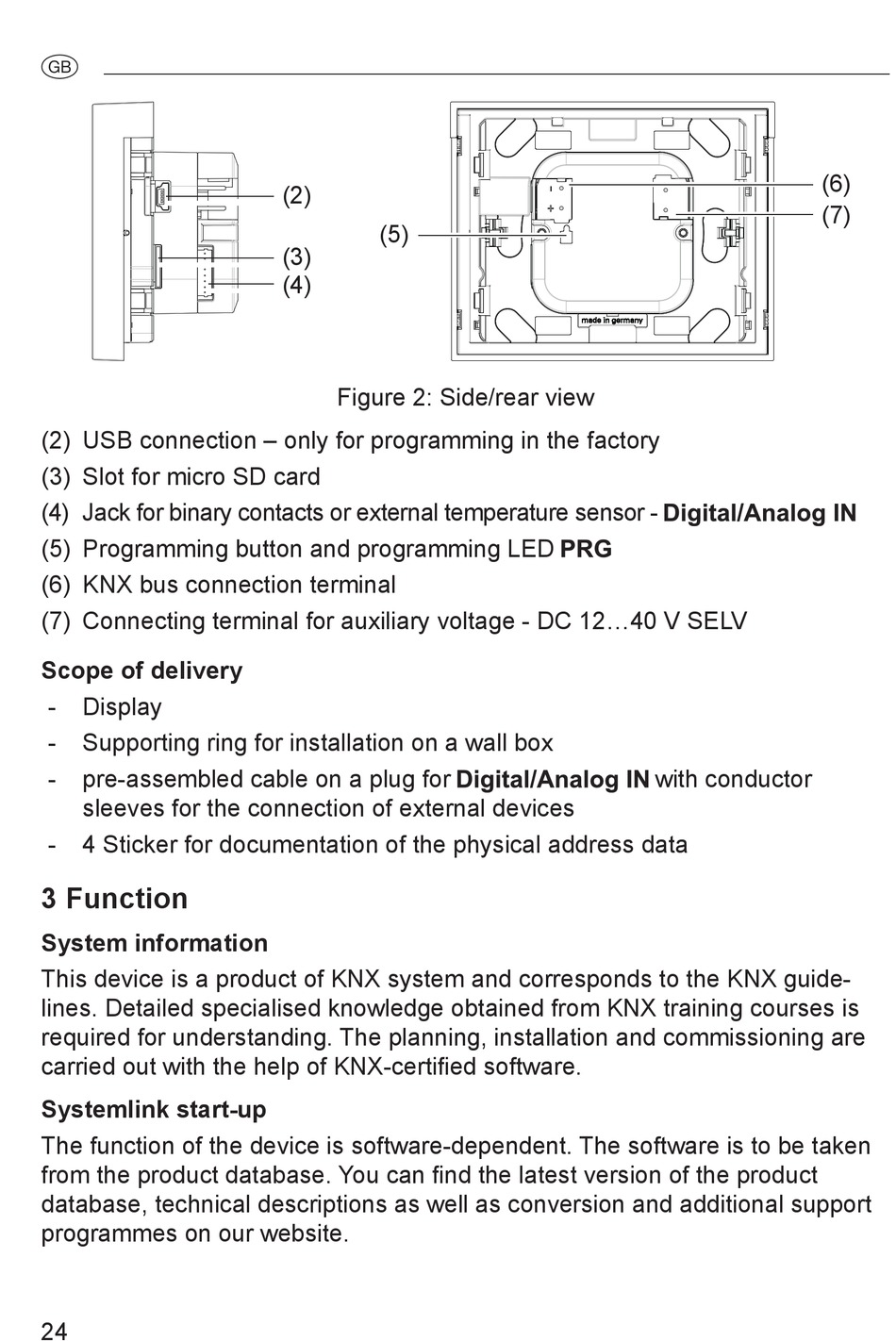

Figure 2: Side/rear view
(6)
(7)
with conductor
