Regenerative power supply modules EMB9341 and EMB9342

4.2.1

Mains filter mounting

)
Note!
For operating the regenerative power supply module, a mains filter
(accessories) is required.
ƒ
ƒ
Dimensions
Fig. 4−1
All dimensions in millimetres.
EDBMB9340 DE/EN/FR 12.0
Regenerative power supply modules EMB9341 and EMB9342
Regenerative power supply module EMB9341: mains filter EZN3A0120H012
Regenerative power supply module EMB9342: mains filter EZN3A0088H024
80
7
PE L1 L2 L3
LINE
LOAD
PE L1 ' L2 ' L3'
92
135

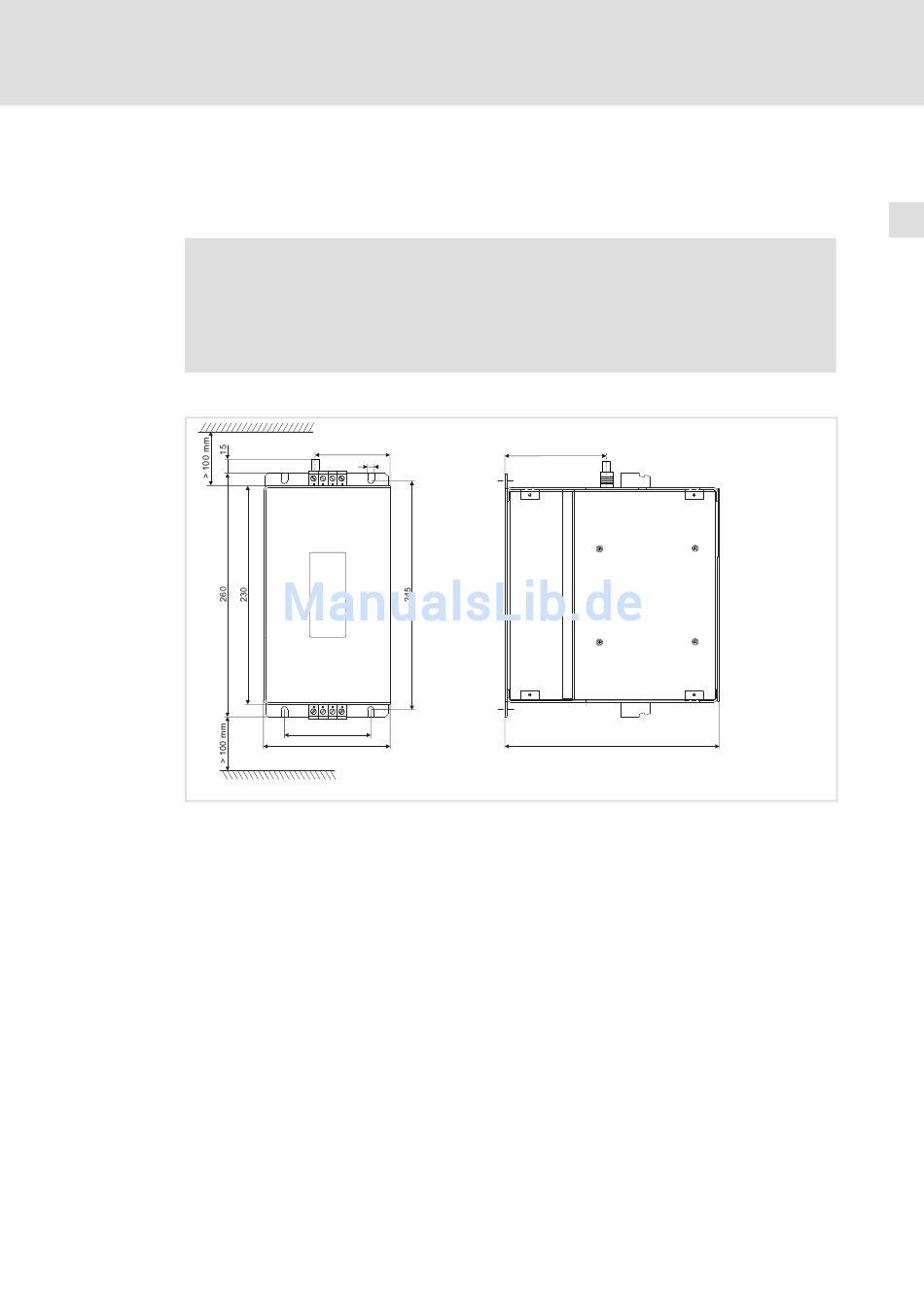

Dimensions of mains filter EZN3A0120H012 for EMB9341
l
Mechanical installation
Mains filter mounting
105
230
4
9340vrm017
89
