Wiring
(
Stop!
ƒ
ƒ

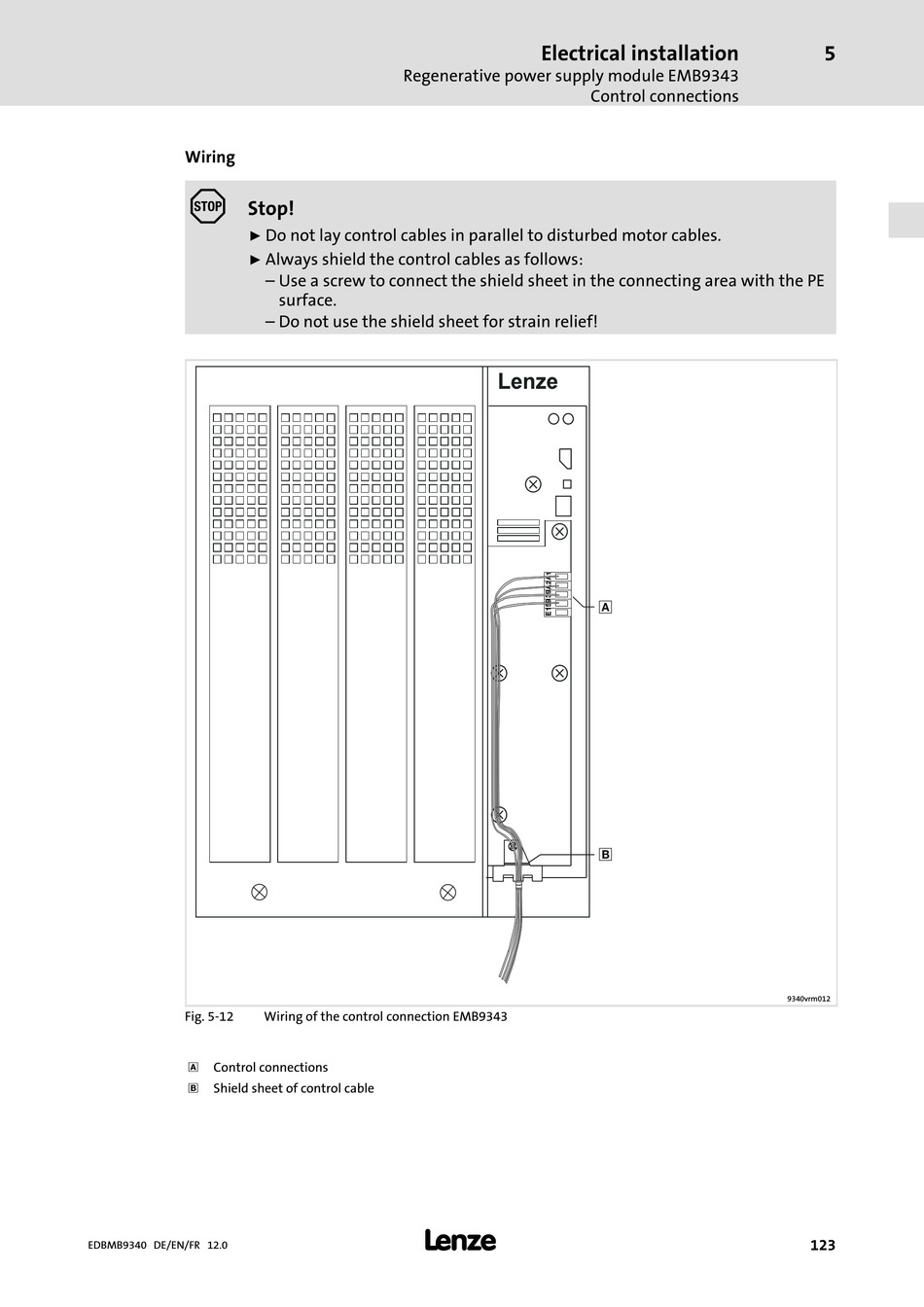

Fig. 5−12
0
Control connections
1
Shield sheet of control cable
EDBMB9340 DE/EN/FR 12.0
Regenerative power supply module EMB9343
Do not lay control cables in parallel to disturbed motor cables.
Always shield the control cables as follows:
– Use a screw to connect the shield sheet in the connecting area with the PE
surface.
– Do not use the shield sheet for strain relief!
Wiring of the control connection EMB9343
l
Electrical installation
Control connections
0
1
5
9340vrm012
123
