5 Electrical installation
Regenerative power supply module EMB9343
Power connections
L1 L2
PE
0
Fig. 5−10
0
Screws for cover
1
Mains cable
2
Supply cables of the regenerative power supply module
3
Supply cables for devices in the DC−bus connection
4
Wiring for internal mains synchronisation
5
Wiring for external mains synchronisation
120
1
L3
2
PE
L

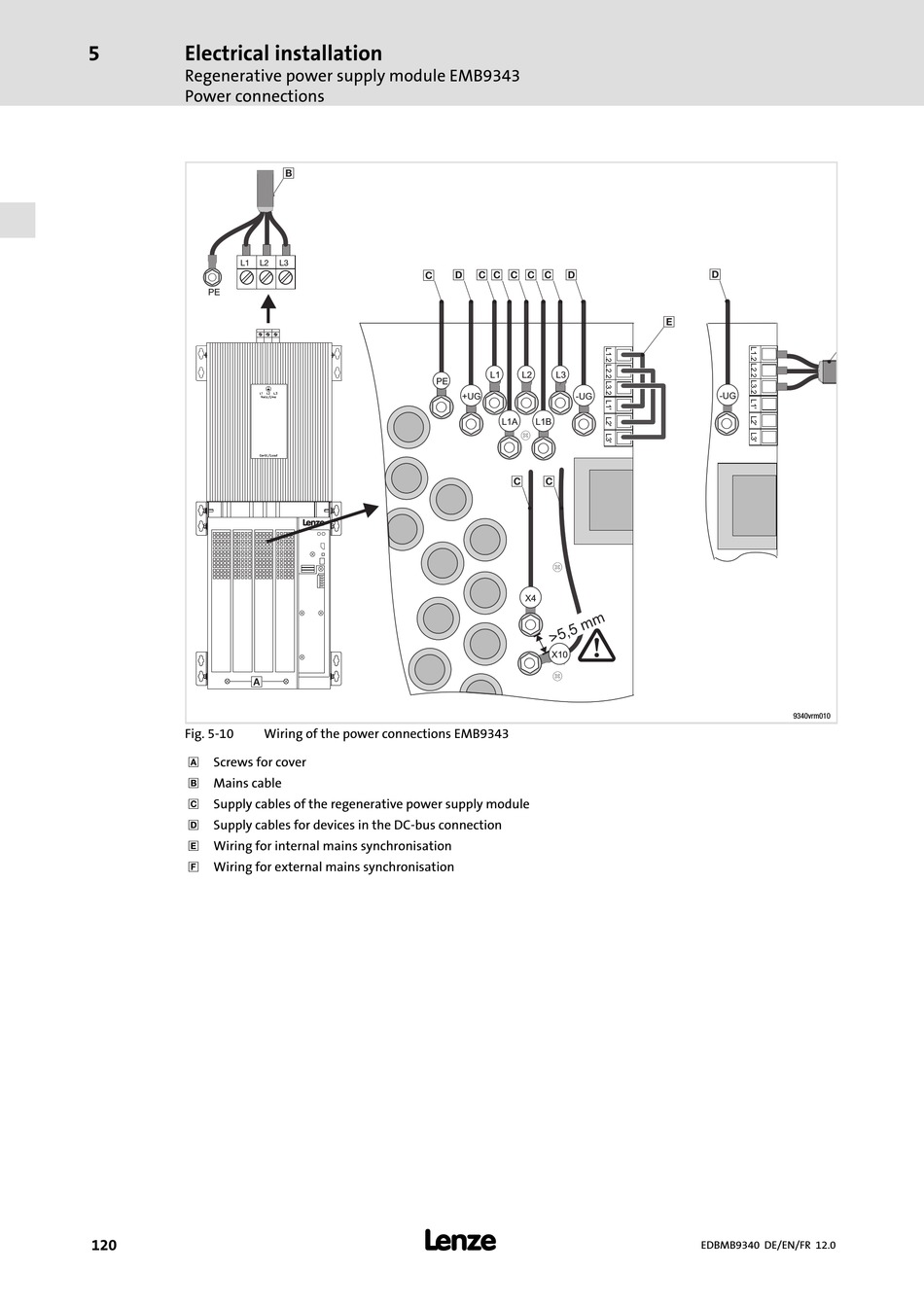

Wiring of the power connections EMB9343
l
3 2 2 2 2 2 3
L1 L2 L3
+UG -UG
L1A L1B
2 2
X4
}
X10
3
4
-UG
9340vrm010
