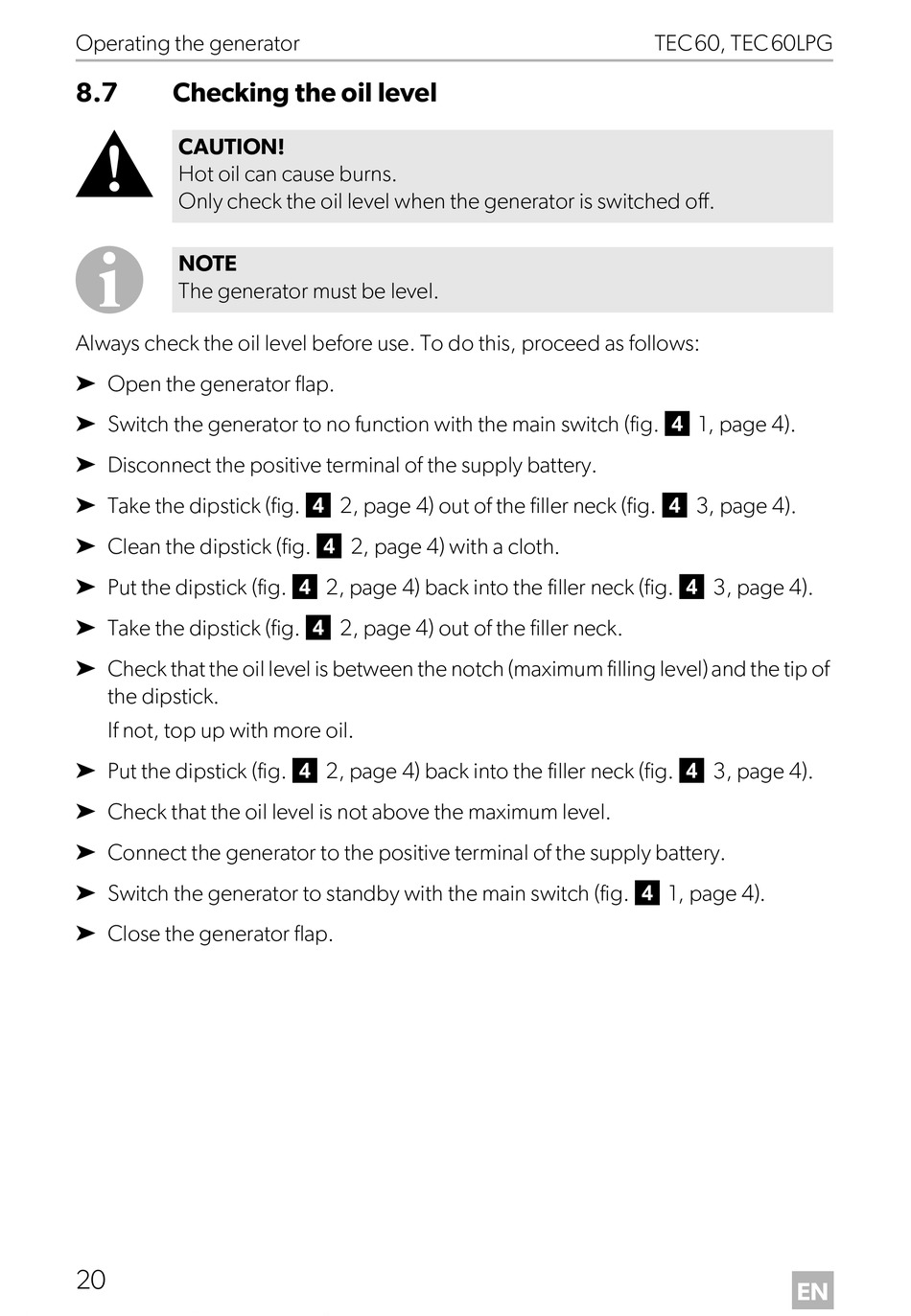

Checking The Oil Level - Dometic TEC60 Bedienungsanleitung

Operating the generator
8.7

Checking the oil level

!
CAUTION!
Hot oil can cause burns.
Only check the oil level when the generator is switched off.
I
NOTE
The generator must be level.
Always check the oil level before use. To do this, proceed as follows:
➤ Open the generator flap.
➤ Switch the generator to no function with the main switch (fig. 4 1, page 4).
➤ Disconnect the positive terminal of the supply battery.
➤ Take the dipstick (fig. 4 2, page 4) out of the filler neck (fig. 4 3, page 4).
➤ Clean the dipstick (fig. 4 2, page 4) with a cloth.
➤ Put the dipstick (fig. 4 2, page 4) back into the filler neck (fig. 4 3, page 4).
➤ Take the dipstick (fig. 4 2, page 4) out of the filler neck.
➤ Check that the oil level is between the notch (maximum filling level) and the tip of
the dipstick.
If not, top up with more oil.
➤ Put the dipstick (fig. 4 2, page 4) back into the filler neck (fig. 4 3, page 4).
➤ Check that the oil level is not above the maximum level.
➤ Connect the generator to the positive terminal of the supply battery.
➤ Switch the generator to standby with the main switch (fig. 4 1, page 4).
➤ Close the generator flap.
20
TEC60, TEC60LPG
EN
