3.2 | Signal Sources and Synchronization

The TM3-Primus features inputs for analog and digital signal sources,
and a USB audio interface. These are described in the 2 | Installation
chapter in full detail.

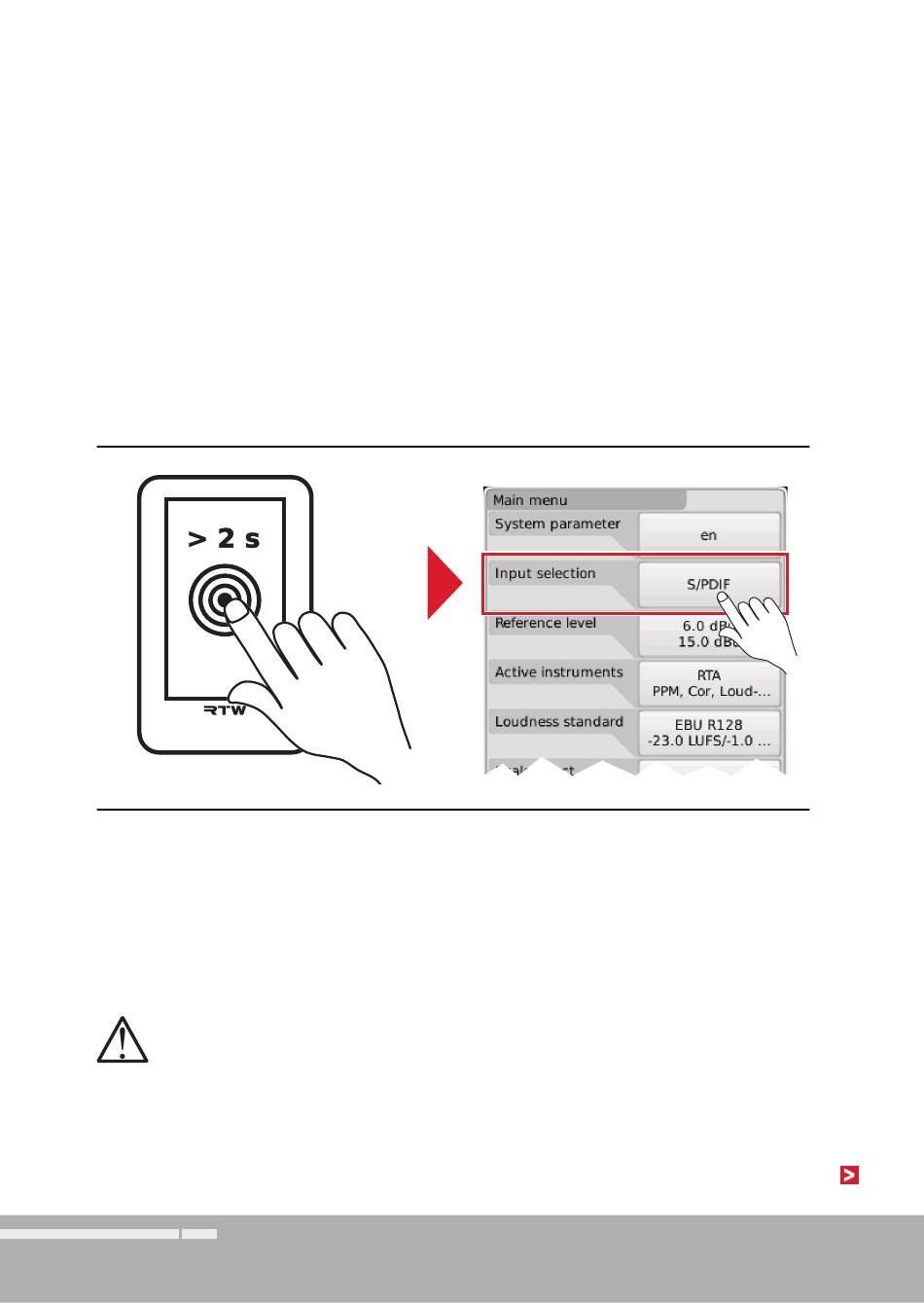

Selecting the active signal input for the current measurement is namely
done by answering the initial request for the domain, but when touching
and holding the screen for more than 2 seconds you can change the
input with the Input selection option of the setup menu. In this way, swit-
ching between several sources connected to the unit is done very easily.
NOTE - For using USB audio signals TM3-Primus is defi ned as
standard audio output device on the computer system. DAWs may syn-
chronize on it. In this case it makes no sense to switch to external analog
or digital sources. The connection to the DAW will be lost, the driver will
be disabled.
Manual | TM3-Primus
EN-28 3 | Operation | 3.2 | Signal Sources and Synchronization
