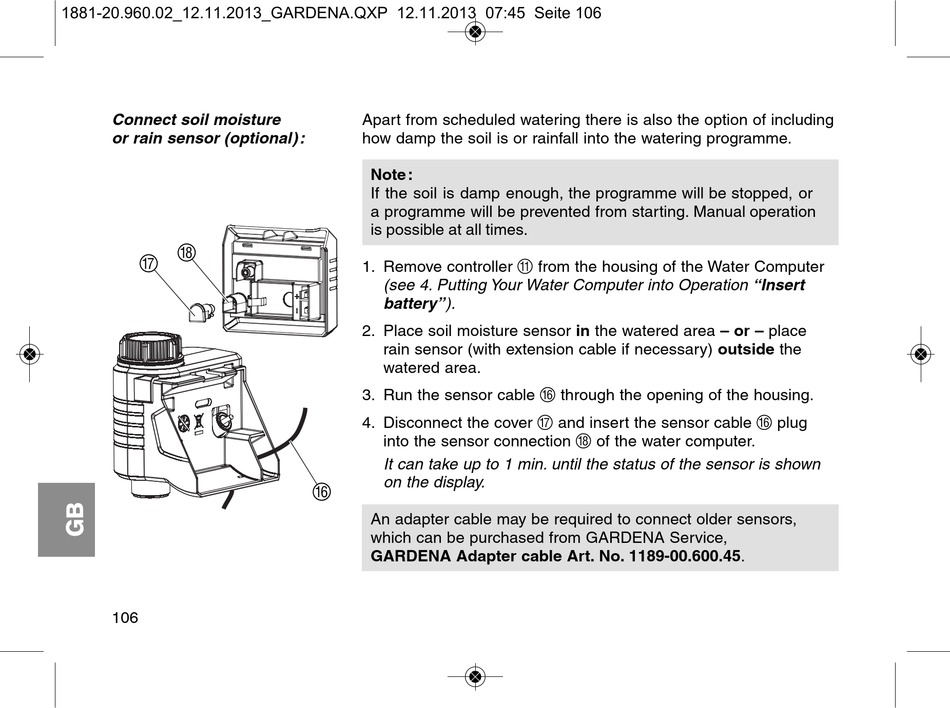

Connect soil moisture
or rain sensor (optional) :
G H
106
Apart from scheduled watering there is also the option of including
how damp the soil is or rainfall into the watering programme.
Note :
If the soil is damp enough, the programme will be stopped, or
a programme will be prevented from starting. Manual operation
is possible at all times.
1. Remove controller
(see 4. Putting Your Water Computer into Operation "Insert
battery").
2. Place soil moisture sensor in the watered area – or – place
rain sensor (with extension cable if necessary) outside the
watered area.
3. Run the sensor cable
4. Disconnect the cover
into the sensor connection
It can take up to 1 min. until the status of the sensor is shown
on the display.
F
An adapter cable may be required to connect older sensors,
which can be purchased from GARDENA Service,
GARDENA Adapter cable Art. No. 1189-00.600.45.
A
from the housing of the Water Computer
F
through the opening of the housing.
G
and insert the sensor cable
H
of the water computer.
F
plug
