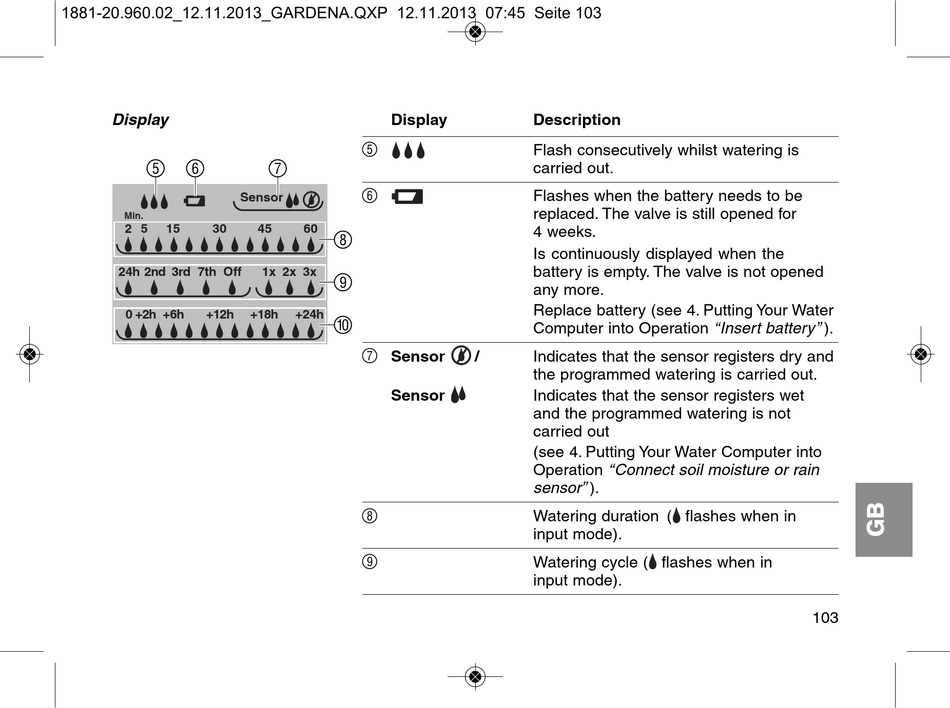

Display
5 6
Sensor
Min.
2 5 15 30
24h 2nd 3rd 7th Off
0 +2h +6h +12h
Display
5
7
6
45 60
8
1x 2x 3x
9
+18h +24h
0
7
Sensor
Sensor
8
9
Description
Flash consecutively whilst watering is
carried out.
Flashes when the battery needs to be
replaced. The valve is still opened for
4 weeks.
Is continuously displayed when the
battery is empty. The valve is not opened
any more.
Replace battery (see 4. Putting Your Water
Computer into Operation "Insert battery" ).
/ Indicates that the sensor registers dry and
the programmed watering is carried out.
Indicates that the sensor registers wet
and the programmed watering is not
carried out
(see 4. Putting Your Water Computer into
Operation "Connect soil moisture or rain
sensor" ).
Watering duration ( flashes when in
input mode).
Watering cycle ( flashes when in
input mode).
