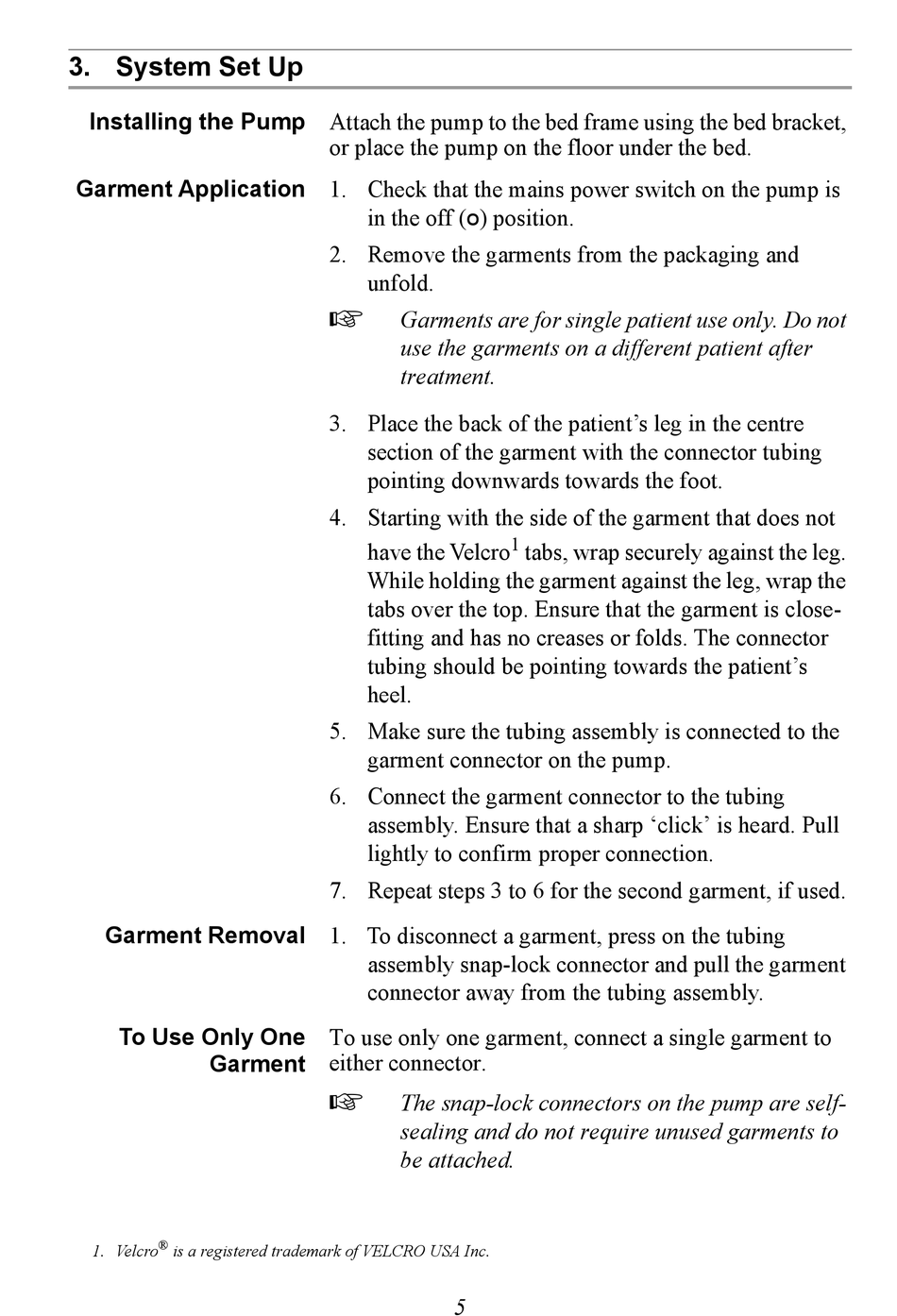

3. System Set Up

Installing the Pump Attach the pump to the bed frame using the bed bracket,
Garment Application 1. Check that the mains power switch on the pump is
Garment Removal 1. To disconnect a garment, press on the tubing
To Use Only One
Garment
®
1. Velcro is a registered trademark of VELCRO USA Inc.
or place the pump on the floor under the bed.
in the off ( ) position.
O
2. Remove the garments from the packaging and
unfold.

Garments are for single patient use only. Do not
use the garments on a different patient after
treatment.
3. Place the back of the patient's leg in the centre
section of the garment with the connector tubing
pointing downwards towards the foot.
4. Starting with the side of the garment that does not
have the Velcro
While holding the garment against the leg, wrap the
tabs over the top. Ensure that the garment is close-
fitting and has no creases or folds. The connector
tubing should be pointing towards the patient's
heel.
5. Make sure the tubing assembly is connected to the
garment connector on the pump.
6. Connect the garment connector to the tubing
assembly. Ensure that a sharp 'click' is heard. Pull
lightly to confirm proper connection.
7. Repeat steps 3 to 6 for the second garment, if used.
assembly snap-lock connector and pull the garment
connector away from the tubing assembly.
To use only one garment, connect a single garment to
either connector.

The snap-lock connectors on the pump are self-
sealing and do not require unused garments to
be attached.
5
1
tabs, wrap securely against the leg.
