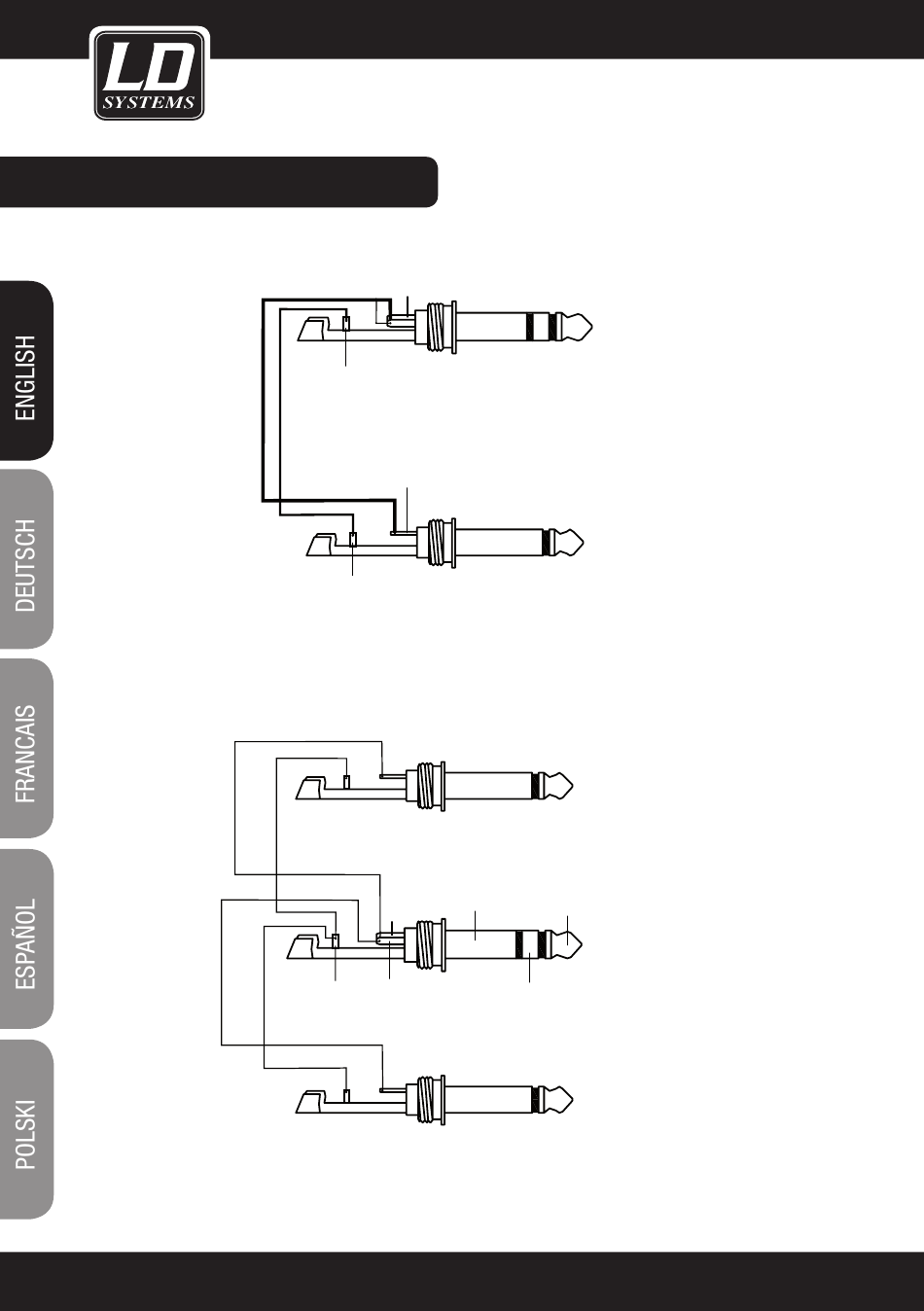

WIRING CONFIGURATION:
‚Tapped' Connection Direct Output Lead (Enables the Insert to be used as a Direct Output while maintaining the
channel signal flow)
Y-Stereo lead for insert Connection
(To be used when the processor does not employ a single jack connection for the In/Out Connections)
16
Ring=Return Signal (Connected together)
Sleeve=Ground/Screen
Tip=Signal
Sleeve=Ground/Screen
Sleeve=Ground/Screen
Tip
Ring
Sleeve
To Channel
Insert
To Tape or
FX Input
To Processor
Input
Tip=Send Signal
To Channel
Insert
Ring=Return Signal
To Processor
Output
