Mounting Of The Panel-Mounted Version - bürkert 8032 Bedienungsanleitung

4 installation

4.3 mounting of the panel-mounted version

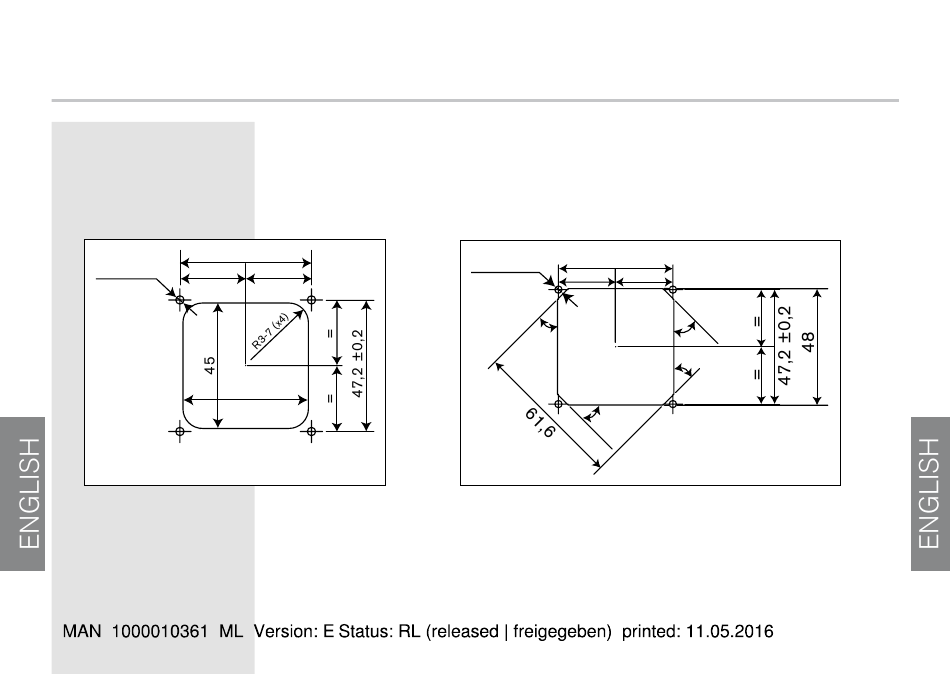

1� Cut away, according to one of the drilling jig hereafter, the opening in the panel (thickness
between 1 and 3 mm) of the switch cabinet� Make sure to scrupulously respect the indicated
dimensions�
47,2 ±0,2
∅ 3 (x4)
=
Minimal opening
2� On the rear face of the electronic board, disconnect the 5 wires [1] by pressing the orange
locking levers with a screwdriver, then pull out flat cable [2]�
3� Unfasten the 4 screws [3] on the front face [4]�
4� Set front face [4] with seal [5] onto the opening, the electronic board facing the inside of the
cabinet�
5� On the rear side of the device, connect flat cable [2] back by maintening the front face and
=
45
remote flow rate controller 8032
47,2 ±0,2
∅ 3 (x4)
= =
45°
45°
45°
45°
Maximal opening
